Binder Battery Test Chambers with Dafety Equipment for Rapid Temperature Changes | LIT MK 720
- Safety thanks to extensive protective measures
- Homogeneous climate conditions thanks to APT.line™ preheating chamber
- Extensive programming and data collection
- Excellent overview of the test object thanks to large heated viewing window
Binder Battery Test Chambers with Dafety Equipment for Rapid Temperature Changes | LIT MK 720

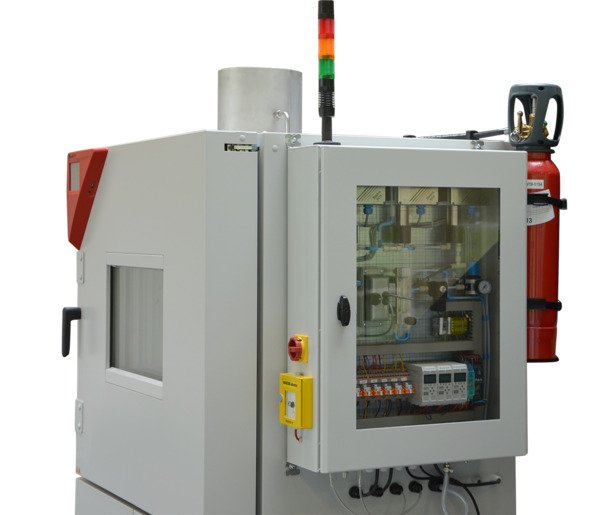

Battery test chambers from BINDER are ideal for aging, performance, and stress testing in quality assurance and battery production. To ensure maximum safety, all the chambers in the LIT MK series are fitted with detection and fire suppression equipment as standard. TÜV SÜD AG has recently confirmed that the LIT MK 240 and LIT MK 720 battery test chambers are suitable for EUCAR LEVEL 6.
Binder Battery Test Chambers with Dafety Equipment for Rapid Temperature Changes | LIT MK 720 General Information
- Temperature range: -40°C above ambient temperature to +110 °C
- Class 2 independent temperature safety device when temperature is set to +120°C
- Reversible stainless steel pressure relief flap installed in the middle on top of the unit
- Enhanced door-locking mechanism with reinforced brackets
- Monitoring of CO, H2, O2, and temperature in testing area atmosphere
- Inertization equipment
- CO2 fire suppression
- APT.line™ preheating chamber technology
- Programmable condensation protection for samples
- Heated viewing window with LED interior lighting
- BINDER Multi Management Software APT-COM™ basic edition
- Intuitive touchscreen controller with time-segment and real-time programming
- Internal data logger, measured values can be read out in open format via USB
- Access port with silicone plug, 50 mm, left
- Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
- Computer interface: Ethernet
- 1 stainless steel rack, can be freely positioned
- CFC-free refrigerant R-452A
- Cooling with compressor cooling unit
- TUV SUD confirms that the LIT MK 240 and LIT MK 720 chambers are suitable for EUCAR level 6
Binder Battery Test Chambers with Dafety Equipment for Rapid Temperature Changes | LIT MK 720 Technical Data
Data
| Designation |
LITMK720-400V |
LITMK720-480V-C |
| Article Number | 9020-0403 | 9020-0405 |
| Option model |
Standard |
with voltage and frequency converter |
| Designation |
LITMK720-400V |
LITMK720-480V-C |
| Temperature range | -40...110 °C | -40...110 °C |
| Temperature uniformity dependent on set value | 0.3...2 ± K | 0.3...2 ± K |
| Temperature fluctuation dependent on set value | 0.1...0.5 ± K | 0.1...0.5 ± K |
| Average heating-up rate according to IEC 60068-3-5 | 4.0 K/min | 4.0 K/min |
| Cooling down time from 110°C to -40°C | 100 min | 100 min |
| Average cooling down time according to IEC 60068-3-5 | 3.4 K/min | 3.4 K/min |
Electrical Data
| Designation |
LITMK720-400V |
LITMK720-480V-C |
| Rated Voltage | 400 V | 480 V |
| Power frequency | 50 Hz | 60 Hz |
| Nominal power | 8,7 kW | 8,7 kW |
| Unit fuse | 16,0 A | 16,0 A |
| Phase (Nominal voltage) | 3~ | 3~ |
| Designation |
LITMK720-400V |
LITMK720-480V-C |
| Interior volume | 734 L | 734 L |
| Net weight of the unit (empty) | 584 kg | 584 kg |
| Load per rack | 40 kg | 40 kg |
| Permitted load | 160 kg | 160 kg |
| Wall clearance back | 300 mm | 300 mm |
| Wall clearance sidewise | 200 mm | 200 mm |
Housing dimensions not incl. fittings and connections
| Designation |
LITMK720-400V |
LITMK720-480V-C |
| Width net | 1,794 mm | 1,794 mm |
| Height net | 2,005 mm | 2,005 mm |
| Depth net | 1,186 mm | 1,186 mm |
| Designation |
LITMK720-400V |
LITMK720-480V-C |
| Interior width | 1,200 mm | 1,200 mm |
| Interior height | 1,020 mm | 1,020 mm |
| Interior depth | 600 mm | 600 mm |
| Viewing window width | 508 mm | 508 mm |
| Viewing window height | 300 mm | 300 mm |
| Unit doors | 1 | 1 |
| Designation |
LITMK720-400V |
LITMK720-480V-C |
| Sound-pressure level | 65 dB(A) | 67 dB(A) |
| Energy consumption at 20°C | 1,900 Wh/h | 1,900 Wh/h |
| Designation |
LITMK720-400V |
LITMK720-480V-C |
| Number of shelves (std./max.) | 1/11 |
1/11 |
