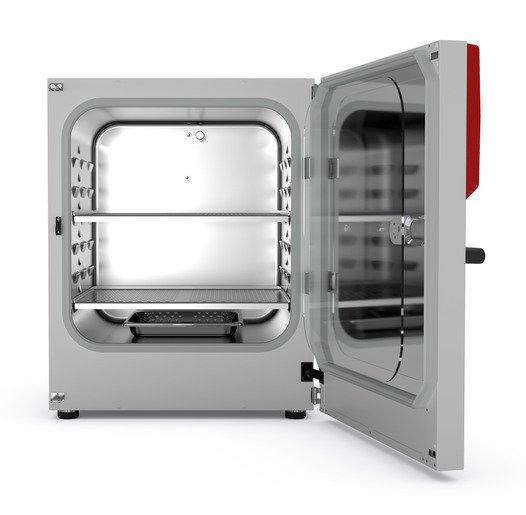

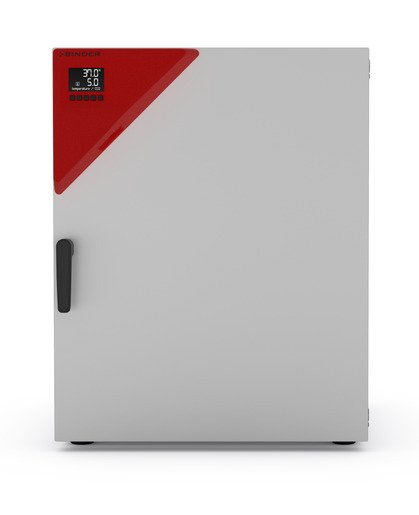

Binder CO2 Incubators with Hot Air Sterilization | CB-S 260
The durable and affordable CB-S series incubators are suitable for routine cell cultivation applications in the field of cell production, particularly in academic settings. They are contamination-proof due to 180°C hot air sterilization and reliably pH-stable thanks to the drift-free infrared CO₂ measurements conducted in real time.
- Temperature Range:+6°C above ambient temperature to +50°C
- Humidity range: 90 to 95% RH
- CO₂ control range: 0 to 20 vol.% CO₂
- Tried-and-tested anti-contamination concept with 180°C hot air sterilization
- Humidification system with condensation protection
- CO2 gas mixing jet with Venturi effect
- CO2 sensor with infrared technology
- LCD to display temperature and CO2 along with additional information and alarms
- Internal data logger, measured values can be read out in open format via USB
- Tightly fitted inner door made of safety glass
- Seamless stainless steel inner chamber
- Perforated shelves, stainless steel
- Troubleshooting system with visual and acoustic alarms
- Interfaces: Ethernet, USB, zero-voltage alarm contact
- Units can be stacked with stacking adapters; the CB-S is suitable for stacking with CB and CBF models of the same size
Data
| Designation |
CBS260-230V |
CBS260UL-120V |
| Article Number | 9640-0003 | 9640-0004 |
| Option model | Standard | Standard |
With Access port 30 mm left
| Designation |
CBS260-230V |
CBS260UL-120V |
| Temperature range | +6 °C above ambient temperature to 50 °C | +6 °C above ambient temperature to 50 °C |
| Temperature uniformity at 37°C | 0.4 ± K | 0.4 ± K |
| Temperature fluctuation at 37°C | 0.1 ± K | 0.1 ± K |
| Recovery time after door was opened for 30 s at 37°C | 8 min | 8 min |
Performance Data Climate
| Designation |
CBS260-230V |
CBS260UL-120V |
| Humidity range | 90 ...95 % RH | 90 ...95 % RH |
Gas Data
| Designation |
CBS260-230V |
CBS260UL-120V |
| CO₂ range | 0 ...20 Vol.-% CO2 | 0 ...20 Vol.-% CO2 |
| CO₂ measuring technology | IR | IR |
| CO₂ recovery time after door was opened for 30 s at 5 vol. % CO₂ | 5 min | 5 min |
Electrical Data
| Designation |
CBS260-230V |
CBS260UL-120V |
| Rated Voltage | 200...230 V | 100...120 V |
| Power frequency | 50/60 Hz | 50/60 Hz |
| Nominal power | 1,5 kW | 1,5 kW |
| Unit fuse | 10,0 A | 16,0 A |
| Phase (Nominal voltage) | 1~ | 1~ |
Fixtures
| Designation |
CBS260-230V |
CBS260UL-120V |
| Number of shelves (std./max.) | 2/8 | 2/8 |
