- Safe, reproducible incubation, even at high ambient temperatures
- Disinfection routine at +100 °C
- Up to 30% lower energy consumption compared to the previous model
Binder Cooling Incubators with Powerful Compressor Cooling | KB 720
The powerful virtuoso in cooling incubators for microorganisms: the KB masters temperature ranges from -10 °C to 100 °C. The new KB series consumes up to 30% less energy compared to its predecessor. With its extensive programming options and homogenous incubation conditions even when fully loaded, this cooling incubator covers a wide range of applications.
- Temperature range: -10 °C to +100 °C
- APT.line™ preheating chamber technology
- Up to 30% lower energy consumption compared to the previous model
- Cooling with compressor cooling unit
- Door heating
- Adjustable fan speed
- Inner door made of tempered safety glass
- Controller with time-segment and real-time programming
- 2 stainless steel racks
- 4 casters, two with locking brakes
- Access port with silicone plug, 30 mm, left
- Class 3.1 independent temperature safety device (DIN 12880) with visual and acoustic alarm
- Computer interface: Ethernet
Binder Cooling Incubators with Powerful Compressor Cooling | KB 720 Specifications
Data
| Designation |
KB720-230V |
KB720UL-240V |
| Article Number | 9020-0204 | 9020-0306 |
| Option model |
Standard |
Standard |
| Designation | KB720-230V | KB720UL-240V |
| Temperature range | -10...100 °C | -10...100 °C |
| Temperature uniformity at 37°C | 0.2 ± K | 0.2 ± K |
| Temperature fluctuation at 37°C | 0.1 ± K | 0.1 ± K |
| Max. heat compensation at 40°C | 500 W | 500 W |
| Recovery time after door was opened for 30 s at 37°C | 3 min | 3 min |
Electrical Data
| Designation |
KB720-230V |
KB720UL-240V |
| Rated Voltage | 200...230 V | 200...240 V |
| Power frequency | 50/60 Hz | 50/60 Hz |
| Nominal power | 2,3 kW | 2,3 kW |
| Unit fuse | 16,0 A | 16,0 A |
| Phase (Nominal voltage) | 1~ | 1~ |
Measures
| Designation | KB720-230V | KB720UL-240V |
| Interior volume | 698 L | 698 L |
| Net weight of the unit (empty) | 304 kg | 304 kg |
| Load per rack | 45 kg | 45 kg |
| Permitted load | 150 kg | 150 kg |
| Wall clearance back | 100 mm | 100 mm |
| Wall clearance sidewise | 100 mm | 100 mm |

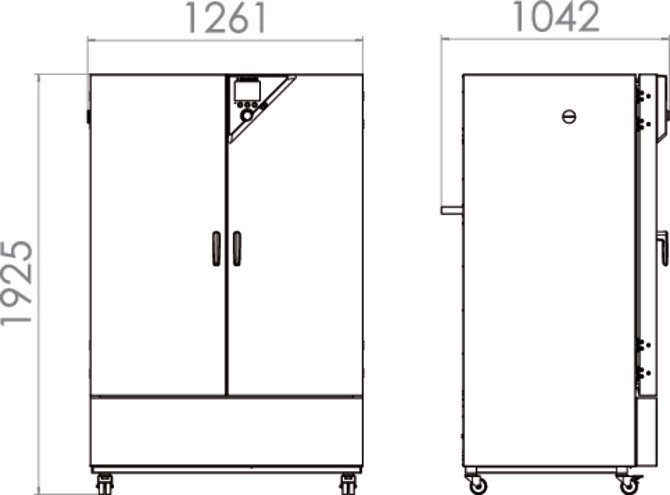

Housing dimensions not incl. fittings and connections
| Designation |
KB720-230V |
KB720UL-240V |
| Width net | 1,250 mm | 1,250 mm |
| Height net | 1,925 mm | 1,925 mm |
| Depth net | 885 mm | 885 mm |
Internal Dimensions
| Designation |
KB720-230V |
KB720UL-240V |
| Interior width | 970 mm | 970 mm |
| Interior height | 1,250 mm | 1,250 mm |
| Interior depth | 576 mm | 576 mm |
| Inner doors | 2 | 2 |
| Unit doors | 2 | 2 |
Environment-specific data
| Designation |
KB720-230V |
KB720UL-240V |
| Sound-pressure level | 53 dB(A) | 53 dB(A) |
| Energy consumption at 37°C | 360 Wh/h | 360 Wh/h |
Fixtures
| Designation |
KB720-230V |
KB720UL-240V |
| Number of shelves (std./max.) | 2/15 | 2/15 |
