Binder Drying and Heating Chambers with Forced Convection and Enhanced Timer Functions | FED 56
- Best energy efficiency on the market
- Excellent temporal and spatial temperature accuracy
- USB connection for recording data
- Temperature range up to 300 °C
Binder Drying and Heating Chambers with Forced Convection and Enhanced Timer Functions | FED 56
A BINDER FD series Avantgarde. Line heating oven is always used when fast drying and sterilization is required. Thanks to its fully homogeneous temperature distribution, quick dynamics and powerful fan, this heating oven saves valuable time.
Binder Drying and Heating Chambers with Forced Convection and Enhanced Timer Functions | FED 56 General Information
- Temperature range: +10°C above ambient temperature to +300 °C
- Up to 30% lower energy consumption compared to conventional units on the market
- High temperature accuracy thanks to APT.line™ technology
- Adjustable fan speed
- Controller with LCD display and enhanced time functions
- Electromechanical control of the exhaust air flap
- 2 chrome-plated racks
- Stackable
- Class 2 integrated independent adjustable temperature safety device (DIN 12880) with visual alarm
- Ergonomic handle design
- Ethernet interface
- USB port for recording data
Data
| Designation |
FD260-230V |
FD260UL-240V |
| Article Number | 9010-0309 | 9010-0310 |
| Option model |
Standard |
Standard |
Performance Data Temperature
| Designation |
FED056-230V |
FED056UL-120V |
| Temperature range | +10 °C above ambient temperature to 300 °C | +10 °C above ambient temperature to 300 °C |
| Temperature uniformity at 150°C | 1.4 ± K | 1.4 ± K |
| Temperature fluctuation at 150°C | 0.3 ± K | 0.3 ± K |
| Heating up time to 150°C | 15 min | 15 min |
| Recovery time after door was opened for 30 s at 150°C | 4 min | 4 min |
Air Change Data
| Designation |
FED056-230V |
FED056UL-120V |
| Air change rate at 100°C | 80 x/h | 80 x/h |
Electrical Data
| Designation |
FED056-230V |
FED056UL-120V |
| Rated Voltage | 230 V | 120 V |
| Power frequency | 50/60 Hz | 60 Hz |
| Nominal power | 1,1 kW | 1,2 kW |
| Unit fuse | 6,3 A | 12,5 A |
| Phase (Nominal voltage) | 1~ | 1~ |
| Designation |
FED056-230V |
FED056UL-120V |
| Interior volume | 60 L | 60 L |
| Net weight of the unit (empty) | 39 kg | 39 kg |
| Load per rack | 30 kg | 30 kg |
| Permitted load | 70 kg | 70 kg |
| Wall clearance back | 160 mm | 160 mm |
| Wall clearance sidewise | 100 mm | 100 mm |

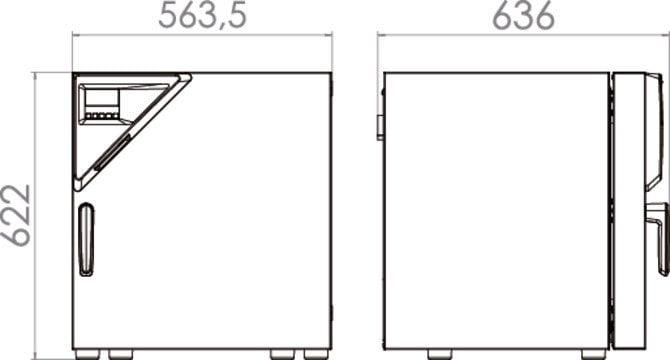

Housing dimensions not incl. fittings and connections
| Designation |
FED056-230V |
FED056UL-120V |
| Width net | 560 mm | 560 mm |
| Height net | 625 mm | 625 mm |
| Depth net | 565 mm | 565 mm |
Internal Dimensions
| Designation |
FED056-230V |
FED056UL-120V |
| Interior width | 400 mm | 400 mm |
| Interior height | 440 mm | 440 mm |
| Interior depth | 345 mm | 345 mm |
| Unit doors | 1 | 1 |
| Designation |
FED056-230V |
FED056UL-120V |
| Sound-pressure level | 43 dB(A) | 43 dB(A) |
| Energy consumption at 100°C | 180 Wh/h | 180 Wh/h |
| Energy consumption at 150°C | 290 Wh/h | 290 Wh/h |
| Designation |
FED056-230V |
FED056UL-120V |
| Number of shelves (std./max.) | 2/4 |
2/4 |
