ED 400
Benefits
- Uniform drying conditions thanks to APT.line™ technology
- Identical test conditions throughout the chamber interior independent of sample size and quantity
- Outstanding thermal insulation saves operation costs
Binder Drying and Heating Chambers with Natural Convection | ED 400
The strengths of a BINDER ED series drying chamber include routine drying and sterilization tasks up to +300 °C. Thanks to the natural convection, all thermal processes which use this drying chamber are highly efficient. The ED series ensures fast, uniform drying.
Binder Drying and Heating Chambers with Natural Convection | ED 400 General Information
- Temperature range:
• +5°C above ambient temperature to
• +300 °C
- APT.line™ preheating chamber technology
- Natural convection
- Adjustable exhaust air flap
- Controller with timer functions
- 2 chrome-plated racks
- Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
Data
| Designation | ED400-400V-I | ED400UL-208V-I |
| Article Number | 9010-0075 | 9010-0168 |
| Option model | with RS 422 | with RS 422 |
| Designation | ED400-400V-I | ED400UL-208V-I |
| Temperature range | +5 °C above ambient temperature to 300 °C | +5 °C above ambient temperature to 300 °C |
| Temperature uniformity at 150°C | 3 ± K | 3 ± K |
| Temperature fluctuation at 150°C | 0.5 ± K | 0.5 ± K |
| Heating up time to 150°C | 71 min | 71 min |
| Recovery time after door was opened for 30 s at 150°C | 31 min | 31 min |
Air Change Data
| Designation | ED400-400V-I | ED400UL-208V-I |
| Air change rate at 150°C | 10 x/h | 10 x/h |
| Designation | ED400-400V-I | ED400UL-208V-I |
| Rated Voltage | 400 V | 208 V |
| Power frequency | 50/60 Hz | 60 Hz |
| Nominal power | 3,4 kW | 3,4 kW |
| Unit fuse | 16,0 A | 16,0 A |
| Phase (Nominal voltage) | 3~ | 3~ |
Measures
| Designation | ED400-400V-I | ED400UL-208V-I |
| Interior volume | 400 L | 400 L |
| Net weight of the unit (empty) | 125 kg | 125 kg |
| Load per rack | 35 kg | 35 kg |
| Permitted load | 90 kg | 90 kg |
| Wall clearance back | 160 mm | 160 mm |
| Wall clearance sidewise | 100 mm | 100 mm |

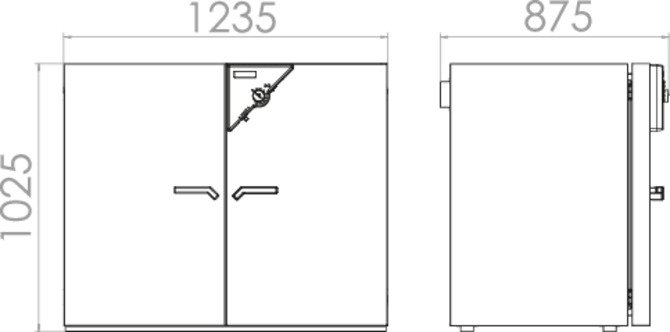

Housing dimensions not incl. fittings and connections
| Designation | ED400-400V-I | ED400UL-208V-I |
| Width net | 1,235 mm | 1,235 mm |
| Height net | 1,025 mm | 1,025 mm |
| Depth net | 765 mm | 765 mm |
| Designation | ED400-400V-I | ED400UL-208V-I |
| Interior width | 1,000 mm | 1,000 mm |
| Interior height | 800 mm | 800 mm |
| Interior depth | 520 mm | 520 mm |
| Unit doors | 2 | 2 |
| Designation | ED400-400V-I | ED400UL-208V-I |
| Energy consumption at 150°C | 672 Wh/h | 672 Wh/h |
| Designation | ED400-400V-I | ED400UL-208V-I |
| Number of shelves (std./max.) | 2/10 | 2/10 |
