BD 23
Benefits
- Excellent temporal and spatial temperature accuracy
- High process reliability
- 100°C disinfection routine
Binder Standard Incubators with Natural Convection | BD 23
The BINDER incubator of the BD series with natural convection is the specialist in long-term and stable continuous operation. This incubator is specially designed for gentle incubation of organisms, as well as conditioning of heat-sensitive media or microbiological heating.
- Temperature range:
• +5°C above ambient temperature to
• +100°C
- APT.line™ preheating chamber technology
- Natural convection
- Adjustable exhaust air flap
- Controller with timer functions
- Inner door made of tempered safety glass
- 2 chrome-plated racks
- Stackable
- Class 3.1 integrated independent temperature safety device (DIN 12880) with visual alarm
- Computer interface: RS 422
Binder Standard Incubators with Natural Convection | BD 23 Specifications
Data
| Designation |
BD023-230V |
BD023UL-120V |
| Article Number | 9010-0187 | 9010-0189 |
| Option model |
Standard |
Standard |
| Designation | BD023-230V | BD023UL-120V |
| Temperature range | +5 °C above ambient temperature to 100 °C | +5 °C above ambient temperature to 100 °C |
| Temperature uniformity at 37°C | 0.5 ± K | 0.5 ± K |
| Temperature fluctuation at 37°C | 0.2 ± K | 0.2 ± K |
| Heating up time to 37°C | 59 min | 59 min |
| Recovery time after door was opened for 30 s at 37°C | 20 min | 20 min |
Electrical Data
| Designation |
BD023-230V |
BD023UL-120V |
| Rated Voltage | 230 V | 240 V |
| Power frequency | 50/60 Hz | 50/60 Hz |
| Nominal power | 1,65 kW | 1,75 kW |
| Unit fuse | 16,0 A | 16,0 A |
| Phase (Nominal voltage) | 1~ | 1~ |
Measures
| Designation | BD023-230V | BD023UL-120V |
| Interior volume | 20 L | 20 L |
| Net weight of the unit (empty) | 27 kg | 27 kg |
| Load per rack | 12 kg | 12 kg |
| Permitted load | 25 kg | 25 kg |
| Wall clearance back | 100 mm | 100 mm |
| Wall clearance sidewise | 50 mm | 50 mm |

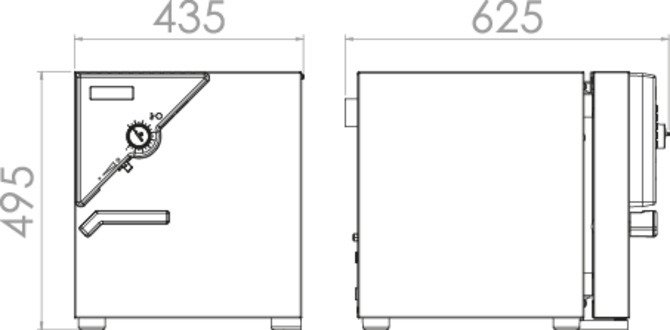

Housing dimensions not incl. fittings and connections
| Designation |
BD023-230V |
BD023UL-120V |
| Width net | 435 mm | 435 mm |
| Height net | 495 mm | 495 mm |
| Depth net | 520 mm | 520 mm |
Internal Dimensions
| Designation |
BD023-230V |
BD023UL-120V |
| Interior width | 222 mm | 222 mm |
| Interior height | 330 mm | 330 mm |
| Interior depth | 277 mm | 277 mm |
| Unit doors | 1 | 1 |
Environment-specific data
| Designation |
BD023-230V |
BD023-230V |
| Energy consumption at 100°C | 11 Wh/h | 11 Wh/h |
Fixtures
| Designation |
BD023-230V |
BD023-230V |
| Number of shelves (std./max.) | 2/16 | 2/16 |
