- Fast, gentle drying
- Optimum heat transfer through large thermal conducting plates
- Safe work thanks to proven safety concept
- Also option of modular complete system with vacuum pump and pump chamber
Binder Vacuum Drying Chambers for Non-Flammable Solvents | VD 23
BINDER’s VD series vacuum drying chambers deliver impressive performance through their precise temperature control and gentle drying. The patented expansion rack technology from BINDER also optimizes heat transfer. The shelves can be repositioned for flexible placement and the interior of the chamber is easy to clean.
Binder Vacuum Drying Chambers for Non-Flammable Solvents | VD 23 General Information
- Temperature range: +9°C above ambient temperature to +220 °C
- Controller with digital display of pressure and temperature
- Program-controlled drying monitoring with automatic ventilation at end of process
- Internal data logger, measured values can be read out in open format via USB
- 1 aluminum expansion rack, can be custom-positioned
- Inert gas connection
- Universal access port DN 16 - for the introduction of external measuring devices
- Shatterproof, spring-mounted safety glass panel
- Large viewing window with option of interior lighting
- Computer interface: Ethernet
Binder Vacuum Drying Chambers for Non-Flammable Solvents | VD 23 Technical Data
Data
| Designation | VD023-230V | VD023UL-120V |
| Article Number | 9630-0001 | 9630-0005 |
| Option model |
Standard |
Standard |
| Designation | VD023-230V | VD023UL-120V |
| Temperature range | +9 °C above ambient temperature to 220 °C | +9 °C above ambient temperature to 220 °C |
| Temperature uniformity at 100°C | 1 ± K | 1 ± K |
| Temperature fluctuation at 100°C | 0.1 ± K | 0.1 ± K |
| Heating up time to 100°C | 80 min | 80 min |
Vacuum Data
| Designation | VD023-230V | VD023UL-120V |
| Leckrate | 0,01 bar/h | 0,01 bar/h |
Electrical Data
| Designation | VD023-230V | VD023UL-120V |
| Rated Voltage | 200...230 V | 100...120 V |
| Power frequency | 50/60 Hz | 50/60 Hz |
| Nominal power | 0,9 kW | 0,9 kW |
| Unit fuse | 6,3 A | 10,0 A |
| Phase (Nominal voltage) | 1~ | 1~ |
| Designation | VD023-230V | VD023UL-120V |
| Vacuum connection with small flange | 16 DN mm | 16 DN mm |
| Measuring access port with small flange | 16 DN mm | 16 DN mm |
| Compressed air connection for pressure-encapsulation | 5 NW |
5 NW |
Measures
| Designation | VD023-230V | VD023UL-120V |
| Interior volume | 24 L | 24 L |
| Net weight of the unit (empty) | 64 kg | 64 kg |
| Load per rack | 20 kg | 20 kg |
| Permitted load | 50 kg | 50 kg |
| Wall clearance back | 100 mm | 100 mm |
| Wall clearance sidewise | 70 mm | 70 mm |

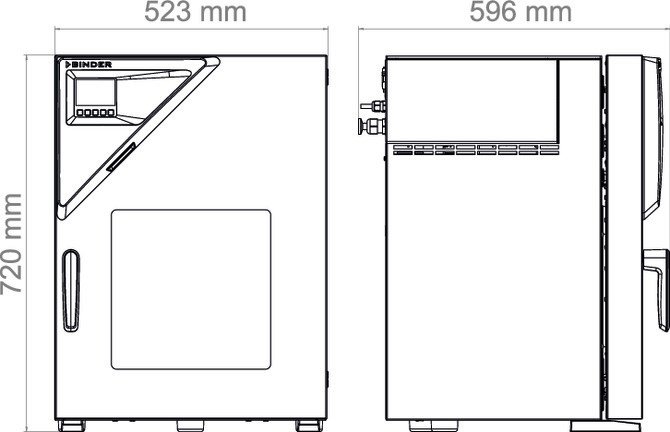

Housing dimensions not incl. fittings and connections
| Designation | VD023-230V | VD023UL-120V |
| Width net | 523 mm | 523 mm |
| Height net | 698 mm | 698 mm |
| Depth net | 413 mm | 413 mm |
| Designation | VD023-230V | VD023UL-120V |
| Interior width | 285 mm | 285 mm |
| Interior height | 285 mm | 285 mm |
| Interior depth | 295 mm | 295 mm |
| Viewing window width | 305 mm | 305 mm |
| Viewing window height | 305 mm | 305 mm |
| Unit doors | 1 | 1 |
| Designation | VD023-230V | VD023UL-120V |
| Sound-pressure level | 40 dB(A) | 40 dB(A) |
| Energy consumption at 100°C | 140 Wh/h | 140 Wh/h |
| Designation |
FP056-230V |
FP056UL-120V |
| Number of shelves (std./max.) | 2/4 | 2/4 |
