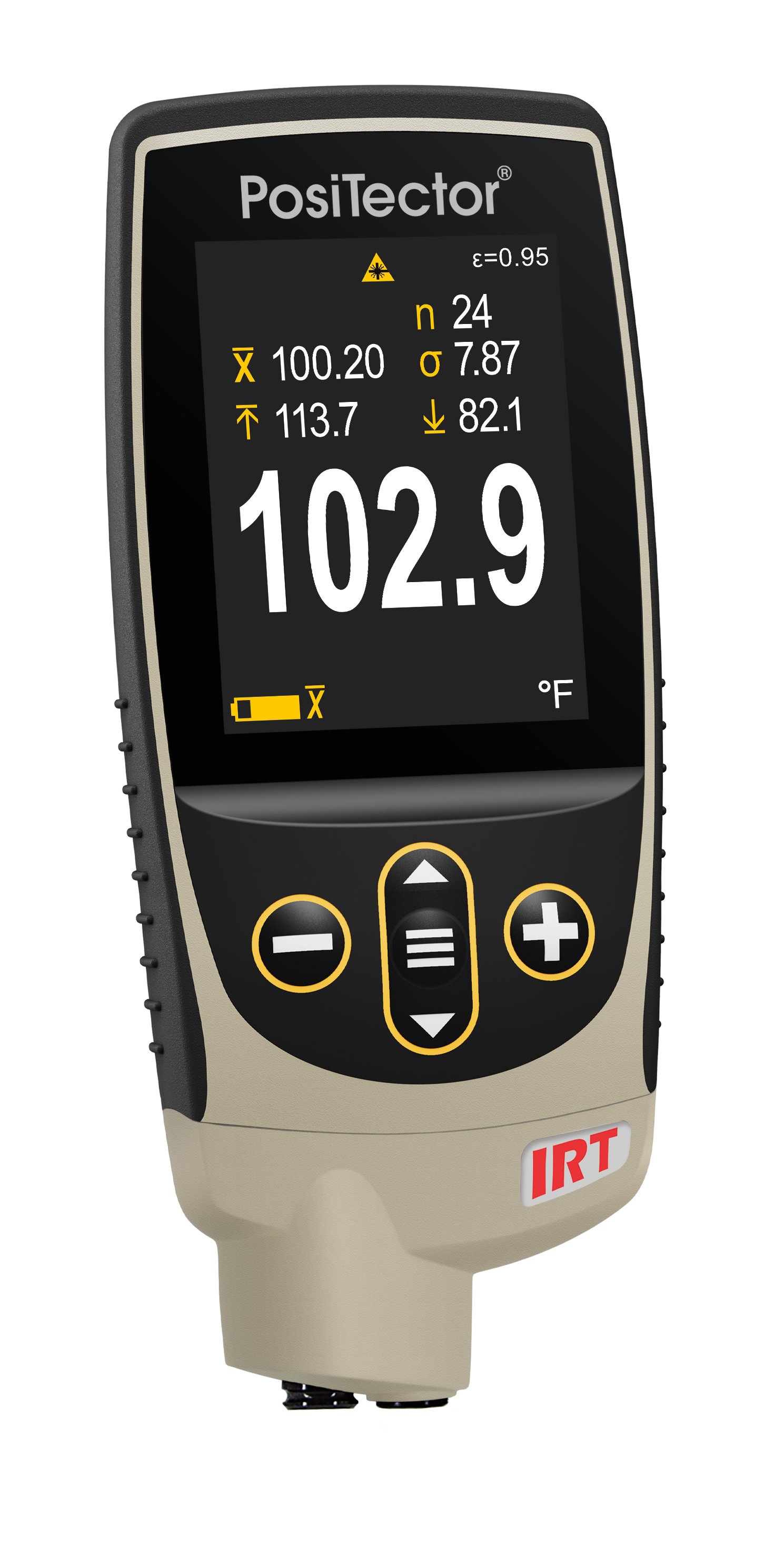

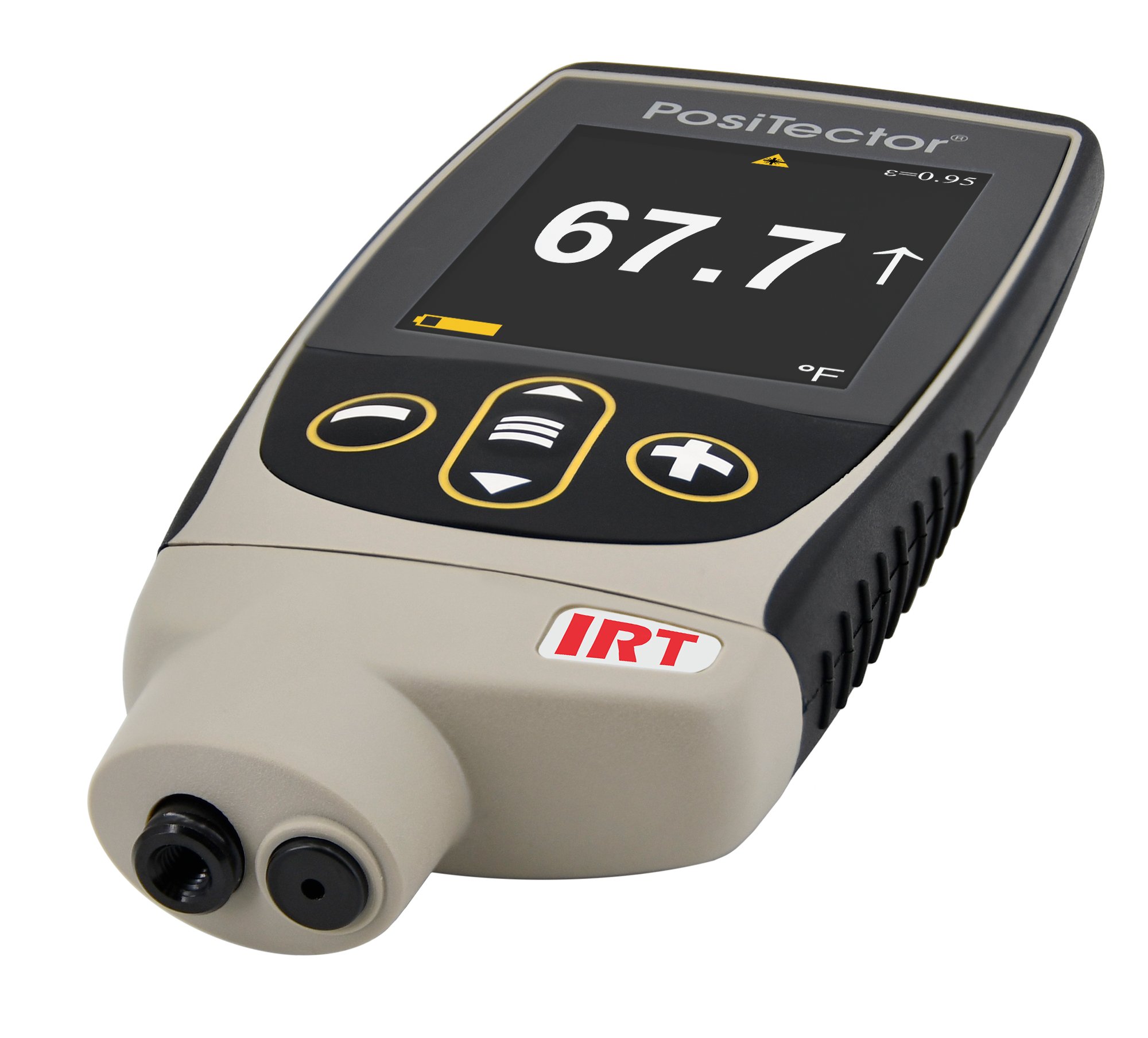

DeFelsko Infrared Thermometer | Positest IRT
DeFelsko

DeFelsko Infrared Thermometer | Positest IRT

Category
Environmental
Stock Code
Positector IRT
Warranty Period
24 Month
DeFelsko Infrared Thermometer | Positest IRT

All gages come complete with IR temperature probe, protective rubber holster, wrist strap, 3 AAA batteries, instructions, nylon carrying case with shoulder strap, protective lens shield, Long Form Certificate of Calibration traceable to NIST, USB cable, two year warranty.

SIZE*: 127 x 66 x 25.4 mm (5" x 2.6" x 1")
WEIGHT*: 137 g (4.9 oz.) without batteries
*Size and weight are for the PosiTector gage body only and do not include the probe.
Product information
Product information
defelsko, defelsko coating thickness, adhesion testing, authorized sales dealer

DeFelsko Infrared Thermometer | Positest IRT

   Non-contact surface temperature measurement


- Button-activated laser pointer for accurate targeting
- Selectable emissivity values—choose from 7 preset material options, set a custom emissivity value, or adjust to a known temperature
- Statistics Scan mode—continually displays/updates average, standard deviation, min/max surface temperature and number of readings while measuring one reading per second
- Certificate of Calibration showing traceability to NIST included (Long Form)
- 5.7:1 distance to spot ratio—ideal for measuring large areas
- Smart Trend indicators identify rising, falling or stable readings
Made in USA flag with black text below
DeFelsko Infrared Thermometer | Positest IRT General Information

 Standard Models
 Includes ALL features as shown on left plus...
- NEW Storage of 1,000 readings per probe—stored readings can be viewed or downloaded

 Advanced Models
 Includes ALL features as shown on left plus...
- NEW Storage of 250,000 readings from multiple probes in up to 1,000 batches
- Trend Charts graph readings in real-time
- NEW Touchscreen keyboard for quickly renaming batches, adding notes, and more
- WiFi technology wirelessly synchronizes with PosiSoft.net and downloads software updates
- Bluetooth 4.0 Technology for data transfer to a mobile device running the PosiTector App or optional portable printer. BLE API available for integration into third-party software.
- Integrate with third-party software, drones, ROVs, PLCs, and robotic devices using several industry-standard communication protocols
- Store thickness, profile, environmental salt contamination, hardness, and wall thickness measurements in individual batches

    Simple

  • Surface temperature is constantly updated and displayed simultaneously
  • Button-activated laser pointer for simple, accurate targeting
  • NEW Larger 2.8" impact resistant color touchscreen with redesigned keypad for quick menu navigation
  • NEW On-gage help explains menu items at the touch of a button
  • RESET feature instantly restores factory settings

    Durable

  • NEW Weatherproof, dustproof, and water-resistant—IP65-rated enclosure
  • NEW Ergonomic design with durable rubberized grip
  • Non-contact sensor won't get caught or worn
  • Shock-absorbing, protective rubber holster for added impact resistance
  • Two year warranty on gage body AND probe

    Accurate

  • Certificate of Calibration showing traceability to NIST included (Long Form)
  • Fast response precision sensor provides accurate, repeatable readings
  • 5.7:1 distance to spot ratio—ideal for measuring large areas
  • Smart Trend™ indicators identify rising, falling, or stable readings

    Versatile

  • PosiTector body accepts all PosiTector 6000, 200, RTR, SPG, DPM, IRT, SST, UTG, SHD, BHI, and GLS probes easily converting from a coating thickness gage to a surface profile gage, dew point meter, soluble salt tester, ultrasonic wall thickness gage, hardness tester, or gloss meter
  • Selectable emissivity values - choose from 7 preset material options, set a custom emissivity value, or adjust to a known temperature
  • NEW Auto rotating display with Flip Lock
    Powerful
  • Scanning Statistics Scan Mode—continually displays/updates average, standard deviation, min/max surface temperature, and number of readings while measuring one reading per second
  • NEW Screen Capture—save 100 screen images for record keeping and review
  • Pause function allows readings to be manually recorded
  • HiLo alarm audibly and visibly alerts when readings exceed user-specified limits
  • NEW Instant-on feature quickly powers up the gage if recently powered down
  • NEW Up to 30% longer battery life
  • USB Port for fast, simple connection to a PC and to supply continuous power. USB cable included
  • PosiSoft USB Drive—stored readings and graphs can be accessed using universal PC/Mac web browsers or file explorers. No software required.
  • Every stored measurement is date and time stamped
  • Software Updates via web keep your gage current
  • Includes PosiSoft suite of software for viewing, analyzing & reporting data

Specifications

Range Accuracy Resolution
Temperature Range -70° to 380° C ±1° C + 1%* 0.1° C
-94° to 716° F ±1.8° F + 1%* 0.1° F
* At 23° C (73.4° F) ambient
Laser Pointer Class 2 < 1mW

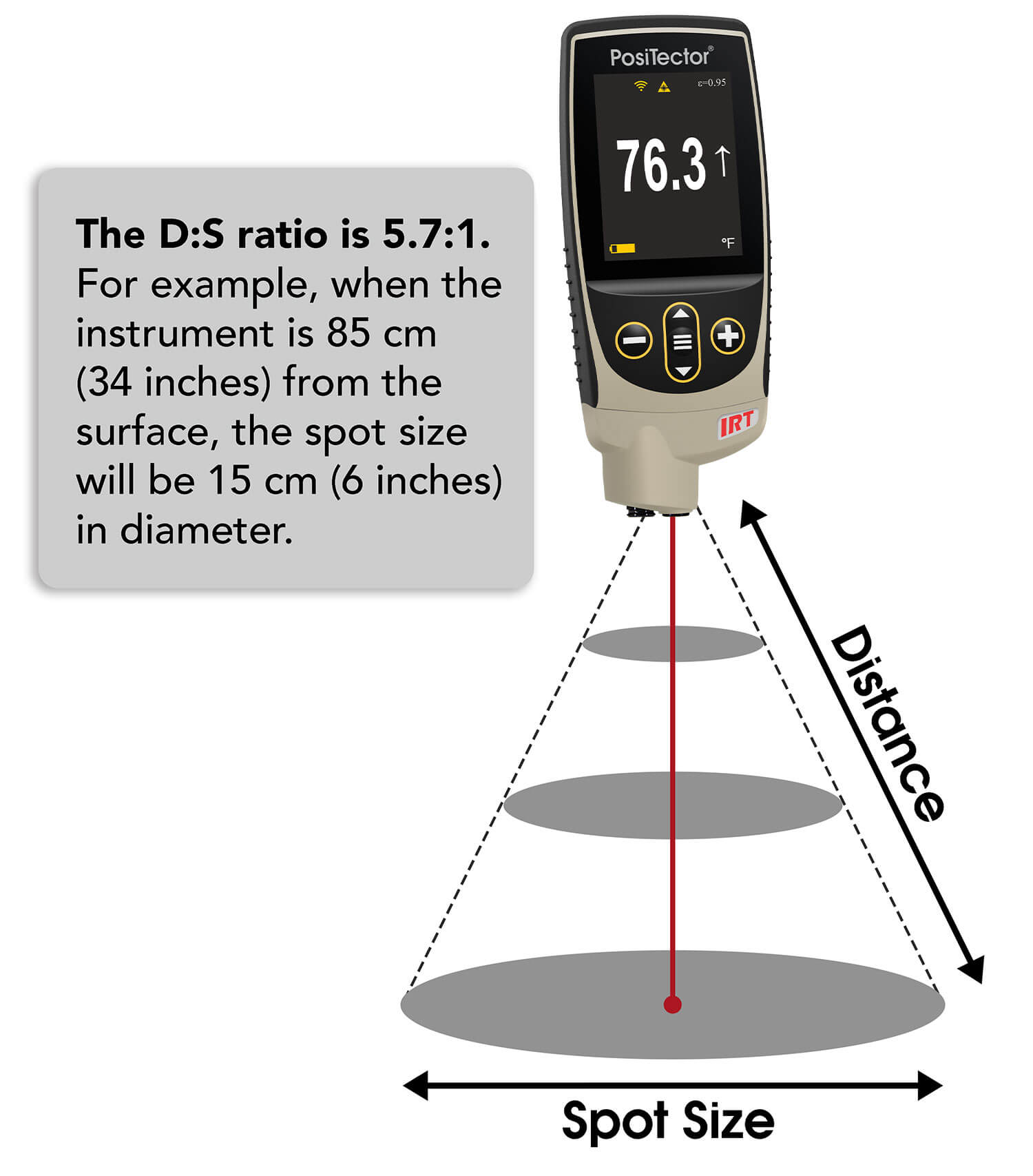

Distance to Spot Ratio (D:S) 5.7:1
Emissivity Adjustable
Response Time < 500 μs (95% response)
Spectral Response
 2 – 14 μm
