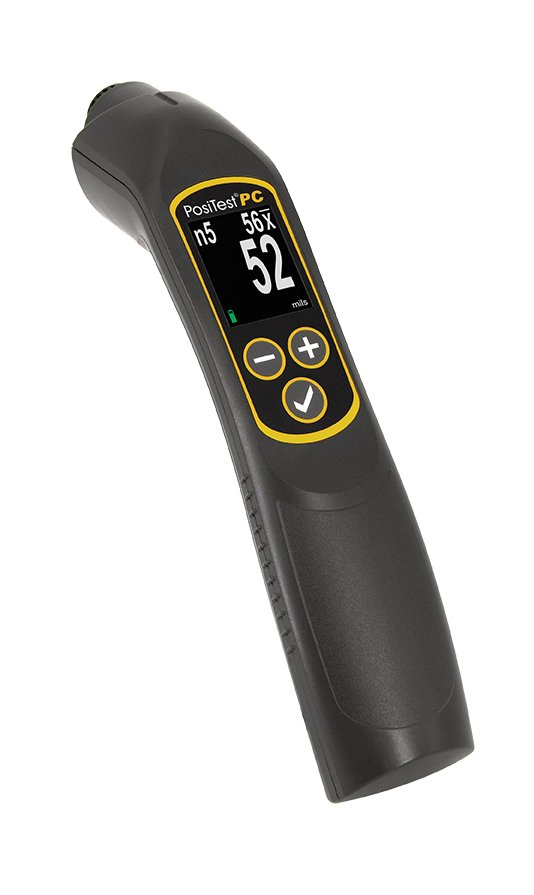

DeFelsko Non-contact Uncured Powder Thickness Gage | Positector PC

   Affordably measures uncured powder coatings using non-contact ultrasonic technology to predict a cured thickness.

  • Dedicated stand-alone unit is ready to measure right out of the box
  • Up to 4x faster measurement speed*—ideal for moving lines and swinging parts
  • No calibration adjustment required for most powders
  • Storage of 999 readings with onscreen averaging. Stored readings can be downloaded to PosiSoft Desktop Software
  • Scan Mode continuously takes measurements—ideal for analyzing large areas
  • Made in USA flag with black text below
Made in USA flag with black text below
 Conforms to ASTM D7378

DeFelsko Non-contact Uncured Powder Thickness Gage | Positector PC General Information

Range∗ 20 – 100 μm (0.8 – 4.0 mils)
Resolution 1 μm (0.1 mil)
Accuracy ±5 μm (± 0.2 mil)
Measurement 1 – 3 seconds
Measurement Distance to Powder 19 mm (0.75 inch)
Measurement Area 2 mm (0.8 inch)
Size 241 x 64 x 51 mm
(9.5" x 2.5" x 2.0")
Weight 180 g (6.4 oz.) without batteries

 ∗Based on TGIC-Free polyester powder
Gage comes complete with probe Zero Fixture, 4 AAA batteries, flat-head screwdriver, instructions, replacement probe screen, protective lens shield, USB cable, hard shell case, two (2) year warranty.

* Versus the previous generation PosiTector PC Powder Checker.
    Simple
  • Dedicated stand-alone unit is ready to measure right out of the box
  • Up to 4x faster measurement speed* — ideal for moving lines and swinging parts
  • Easy-to-read digital display with a simple, icon based menu
  • Hand-held, battery operated
  • Ergonomic and lightweight
  • No calibration adjustment required for most powders
  • Target Grid simultaneously displays distance to the part and alignment, making measurements easy
  • RESET features instantly restores factory settings

    Durable

  • Solvent, acid, oil, water and dust resistant—ideal for harsh powder coating environments
  • Hard-shell carrying case included
  • Replaceable screen protects the sensor
  • Two year warranty

    Accurate

  • Improved sensor technology allows easier measurement on small tubes, odd shapes and moving parts
  • Easy 1 and 2 point calibration adjustment options with Cal Reset to improve accuracy on unusual powders or substrates
  • Conforms to ASTM D7378

    Versatile

  • No cable to risk disturbing the applied powder
  • Mils/microns switchable
  • High contrast color display
  • Adjustable display brightness for optimal visibility in any environment
  • Toggle sound On and Off
  • Uses alkaline or rechargeable batteries

    Powerful
  • Storage of 999 readings with onscreen averaging. Stored readings can be downloaded to PosiSoft Desktop software
  • Scan Mode continuously takes measurements - ideal for analyzing large areas
  • USB Keyboard Mode emulates keystrokes to easily stream readings to a PC or PLC
  • USB port for fast, simple connection to a PC and to supply continuous power
  • Software updates keep your instrument current
