Kern IoT-Line Compact Laboratory Balance | PCB 6000-1
The standard in the laboratory, ideal for a wide range of applications for Industry 4.0
- Compatible with school-specific software solutions such as, for example, Vernier ® or LabQuest ®. Thanks to the KERN School Protocol, as part of technical experiments, weighing data can be transferred to a PC, laptop, etc. for evaluation and display using the USB data interface.
- Industry 4.0: The integrated KERN Universal Port (KUP) allows the connection of external KUP interface adapters such as RS-232, USB, Bluetooth, WIFI, Analogue, Ethernet etc. The outstanding advantage here is that the KUP interface adapters are simply plugged in, i.e. retrofitting interfaces is conveniently possible without opening the scale housing or complicated installation. The interface adapters enable convenient transmission of weighing data to networks, PCs, smartphones, tablets, laptops, printers etc. In addition, control commands and data inputs can also be sent to the scale via the connected devices. Tip: with the KERN KUP-13 extension box, up to three KUP interface adapters can be operated in parallel on the scale.
- KERN Communication Protocol (KCP): The KCP permits searching and remote control of the balance using external control devices or computers.
- Standardised, simplified concept of operation.
- PRE-TARE function for manual subtraction of a known container weight, useful for checking fill-levels.
- With the recipe function you can weigh the different ingredients of a mixture. As a check, you can also call up the total weight of all the ingredients.
- Weighing with tolerance range (checkweighing): a visual signal helps with portioning, dispensing or grading.
- Freely programmable weighing unit, e.g. display direct in special units such as length of thread g/m, paper weight g/m², or similar.
- A special Anti-Shock system between the weighing plate and weighing cell reduces vibrations during the weighing process and in this way ensures rapid, reliable weighing results.
- Protective working cover included with delivery.
Kern IoT-Line Compact Laboratory Balance | PCB 6000-1 Technical Data
| Weighing capacity [Max] | 6000 g |
| Readability [d] | 0,1 g |
| Units | kg, g, gn, dwt, tl (Tw), tl (HK), ozt, tl (Singap, Malays), ct, mo, lb, oz, ffa, m |
| Linearity | ± 0,3 g |
| Reproducibility | 0,1 g |
| Stabilization time | 3 s |
| USP Minimum weight of sample (k = 2, U = 0.1%) | 200 g |
| Interfaces | RS-232 (optional), Bluetooth (optional), Ethernet (optional), USB-Device (optional), KUP, WiFi (optional) |
| Adjustment options | Adjusting with external weight |
| Recommended adjusting weight | 5 kg (F2); 1 kg (F2) |
| Ambient temperature | -10 °C – 40 °C |
| Dimensions weighing surface (W×D) | 150×170 mm |
| Material housing | plastic |
| Dimension housing (W×D×H) | 163×245×65 mm |
| Material weighing plate | stainless steel |
| Net weight approx. | 1,6 kg |
| Construction type of the scale | Single-range balance |

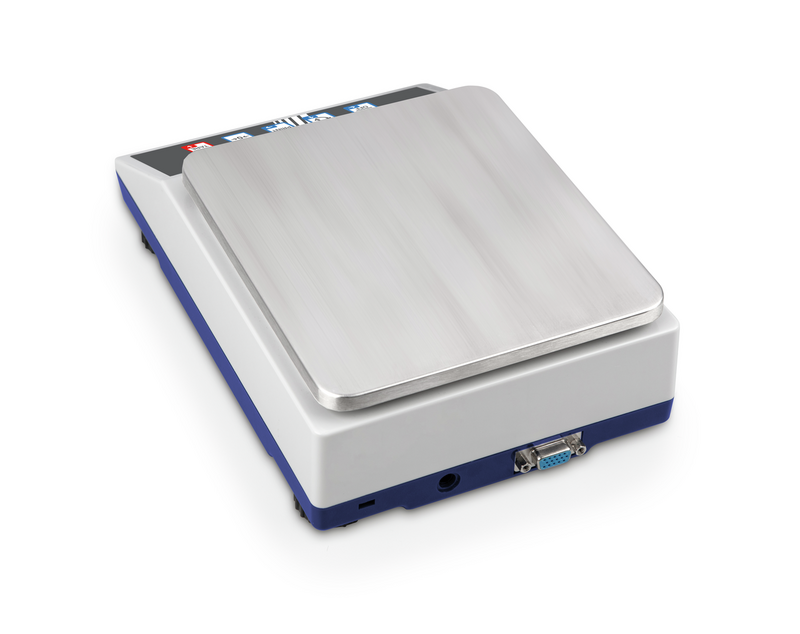

Kern IoT-Line Compact Laboratory Balance | PCB 6000-1 Image
