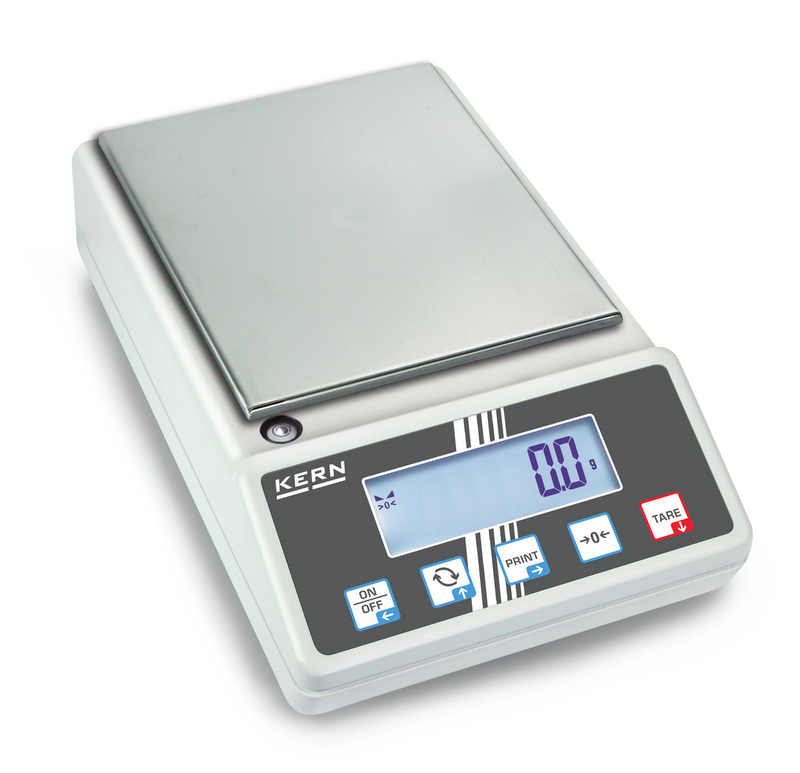

Kern IoT-Line Precision Balance | 572-45
All-rounder, e.g. as precision balance in the laboratory or in harsh industrial applications, ideal for the diverse possibilities of Industry 4.0 applications
- Thanks to the many typical laboratory functions, such as, for example, recipe function, percentage determination, combined with the high level of precision, the KERN 572 is a reliable partner for day-to-day work in the laboratory.
- The robust version, typical industrial functions, such as piece-counting, vibrationfree weighing and the large weighing ranges also make these balances ideal for all industrial applications, where a high level of precision is required.
- KERN Universal Port (KUP): permits the connection of an external KUP interface adapter, such as, for example, RS-232, USB, Bluetooth, WiFi or Ethernet, for the exchange of data and control commands, without any installation outlay.
- KERN Communication Protocol (KCP): The KCP permits searching and remote control of the balance using external control devices or computers.
- Standardised, simplified concept of operation.
- Freely programmable weighing unit, e.g. display direct in special units such as length of thread g/m, paper weight g/m², or similar.
- The robust aluminium diecast housing maintains the stability, protects the weighing technology elements and is robust enough to cope with everyday use.
- Level indicator to level the balance precisely.
- Protective working cover included with delivery.
Kern IoT-Line Precision Balance | 572-45 Technical Data
| Weighing capacity [Max] | 12 kg |
| Readability [d] | 0,00005 kg |
| Units | kg, g, dwt, tl (Tw), tl (HK), ozt, tl (Singap, Malays), ct, mo, lb, oz, ffa |
| Linearity | ± 0,00015 kg |
| Reproducibility | 0,00005 kg |
| Stabilization time | 3 s |
| USP Minimum weight of sample (k = 2, U = 0.1%) | 100 g |
| Interfaces | RS-232 (optional), Bluetooth (optional), Ethernet (optional), USB-Device (optional), KUP, WiFi (optional) |
| Adjustment options | Adjusting with external weight |
| Recommended adjusting weight | 10 kg (F1) |
| Ambient temperature | -10 °C – 40 °C |
| Dimensions weighing surface (W×D) | 160×200 mm |
| Material housing | cast aluminium |
| Dimension housing (W×D×H) | 180×310×85 mm |
| Material weighing plate | stainless steel |
| Net weight approx. | 2,8 kg |
| Construction type of the scale | Single-range balance |
