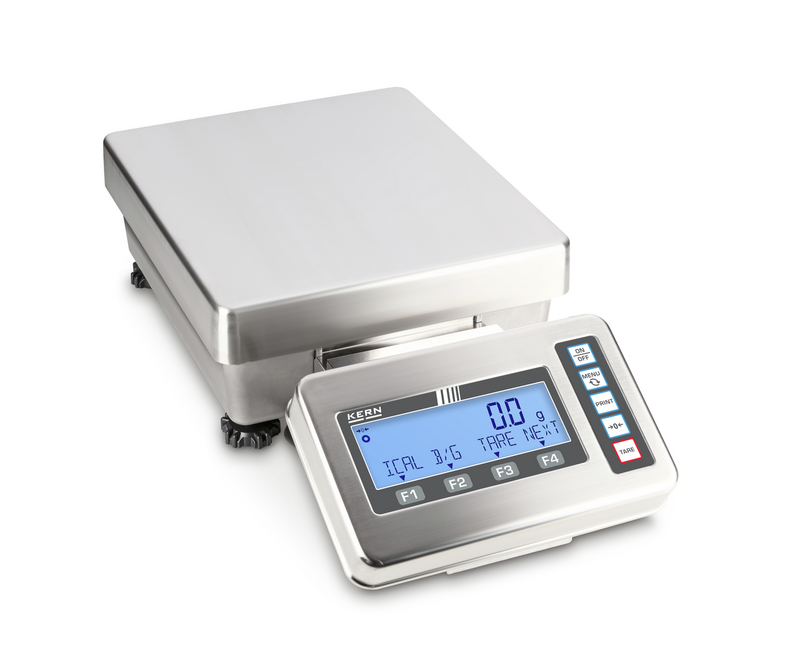

Kern Precision Balance | FEJ 17K-4M
High-capacity precision balance with password-protected user administration.
- Stainless steel display device with IP65 protection, hygienic and easy to clean.
- Metal housing: robust and sturdy.
- In order to meet requirements in the pharmaceutical industry, the balance is fitted with a user administration system, which enables unique assignment of users and protects against unauthorised access.
- Intuitive concept of operation through info line on the display.
- Freely-assignable function keys enable individual adjustment of the balance.
- IP65 dust and spray protection. (in accordance with EN 60529)
- U.S. FDA 21 Part 11: assists you in data integrity in accordance with U.S. FDA 21 Part 11 (for example weighing result, sample ID, user name, scales ID, ...)
- Protective working cover included with delivery.
Kern Precision Balance | FEJ 17K-4M Technical Data
| Weighing capacity [Max] | 17000 g |
| Readability [d] | 0,1 g |
| Verification scale interval [e] | 1 g |
| Units | kg, g, dwt, tl (Tw), tl (HK), ozt, tl (Singap, Malays), ct, lb, oz, tol, mom |
| Minimum weight [Min] | 5 g |
| Linearity | ± 0,3 g |
| Reproducibility | 0,1 g |
| Stabilization time | 3 s |
| USP Minimum weight of sample (k = 2, U = 0.1%) | 200 g |
| Interfaces | Digital I/O (optional, factory), RS-232 standard - 2x |
| Adjustment options | Internal calibration (automatic) |
| Ambient temperature | 5 °C – 35 °C |
| Dimensions weighing surface (W×D) | 350×400 mm |
| Material housing | stainless steel, cast iron |
| Dimension housing (W×D×H) | 350×520×170 mm |
| Material weighing plate | stainless steel |
| Net weight approx. | 19 kg |
| Construction type of the scale | Single-range balance |
