Stock Code
0635 9570

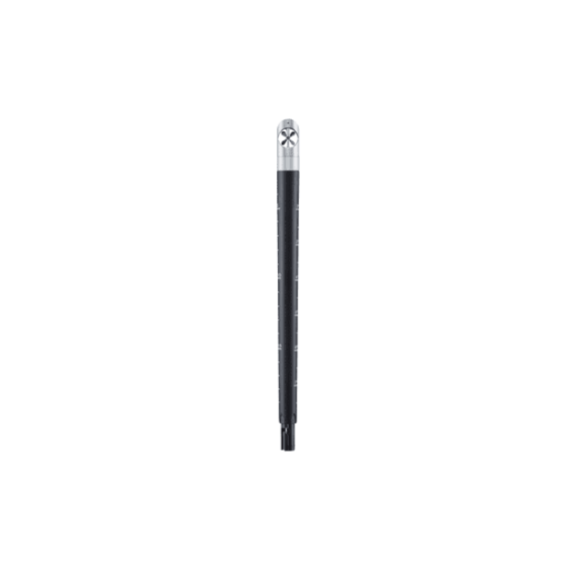

TESTO 16 mm Vane Probe Head Including Temperature Sensor
Delivery Scope
More applications, less equipment: if you already own one of our probes with a universal handle, you can easily expand your portfolio of probes with the 16 mm vane probe head.
Your advantages
Intuitive: parallel determination of flow velocity, volume flow and temperature
Precise: accurate measurement results from +0.6 to +50 m/s
Convenient: simply plug the probe head onto the extendable telescope for air velocity probes – and use the adapter to attach them to the universal handle with Bluetooth® or cable (available to order separately)
Intelligent calibration concept: only send in the probe head for calibration
TESTO 16 mm Vane Probe Head Including Temperature Sensor Description
Simply plug the probe head onto the extendable telescope for air velocity probes and use the adapter (order number 0554 2160) to attach them both to the handle with Bluetooth or cable.
Delivery Scope
16 mm vane probe head including temperature sensor and calibration protocol.
TESTO 16 mm Vane Probe Head Including Temperature Sensor Technical Data
General Technical Data
Velocity / Volume flow
General technical data
TESTO 16 mm Vane Probe Head Including Temperature Sensor Images
General Technical Data
| Measuring range |
-10 to +70 °C
|
|---|---|
| Accuracy |
±1.8 °C
|
| Resolution |
0.1 °C
|
Velocity / Volume flow
| Measuring range |
0.6 to 50 m/s
|
|---|---|
| Accuracy |
±(0.2 m/s + 1 % of mv) (0.6 to +40 m/s)
±(0.2 m/s + 2 % of mv) (40.1 to 50 m/s)
|
| Resolution |
0.1 m/s
|
General technical data
| Storage temperature |
-10 to +70 °C
|
|---|---|
| Weight |
60 g
|
| Dimensions |
245 x 16 x 16 mm
|
| Operating temperature |
-10 to +70 °C
|
| Length probe shaft |
230 mm
|
| Diameter probe shaft |
16 mm
|
| Probe head diameter |
16 mm
|
| Product colour |
Black
|
TESTO 16 mm Vane Probe Head Including Temperature Sensor Images
