Category
Stock Code
0563 4401
TESTO 440 16 mm Vane Kit

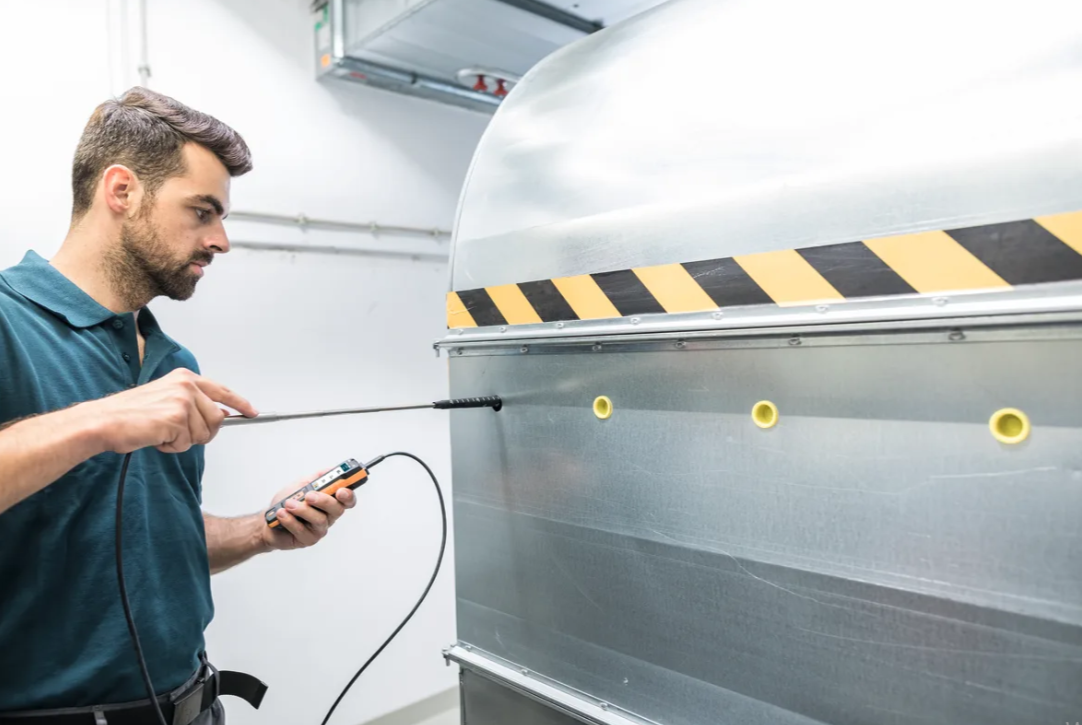

Kit for carrying out measurements in ventilation ducts: the testo 440 air velocity and IAQ measuring instrument and the vane probe (Ø 16 mm) are safely stowed away in the case. So you can get down to work straight away!
Your advantages
Kit for carrying out measurements in ventilation ducts: the testo 440 air velocity and IAQ measuring instrument and the vane probe (Ø 16 mm) are safely stowed away in the case. So you can get down to work straight away!
Your advantages
- Intuitive: clearly structured measurement menu for volume flow and determination of air velocity in ventilation ducts
- Convenient: integrated telescope that can be extended to 0.85 m, with scaling, makes it easy to carry out measurements
- Reliable: internal data storage and USB port for data export
- As multifaceted as your challenges themselves: the air velocity and IAQ measuring instrument can be expanded with a large portfolio of digital probes
TESTO 440 16 mm Vane Kit Description

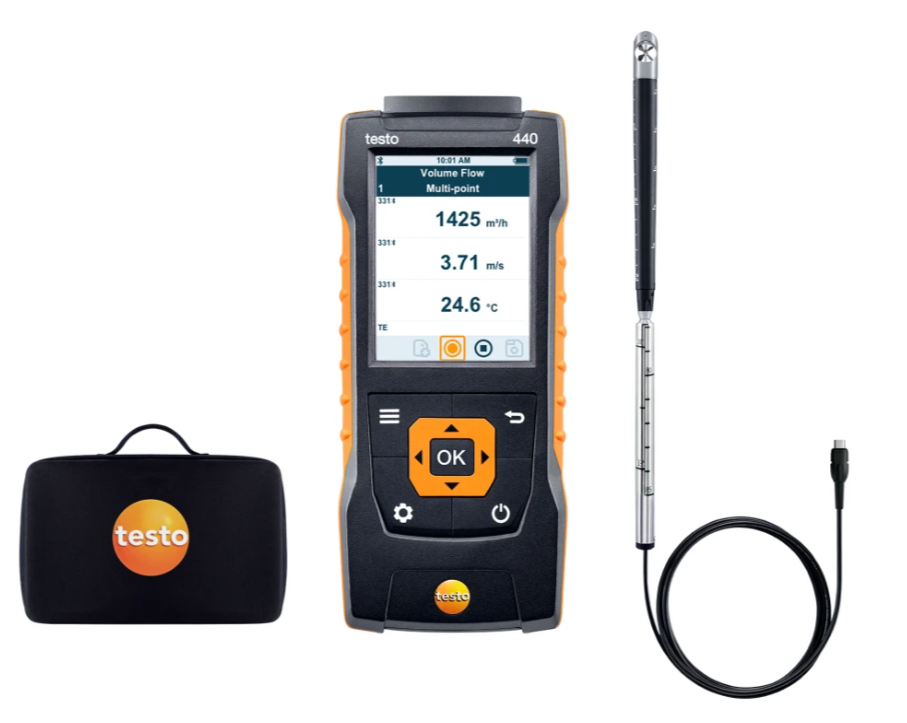

Delivery Scope
- testo 440 air velocity and IAQ measuring instrument, 3 x AA batteries, USB cable and calibration protocol (0560 4401)
- Vane probe (Ø 16 mm) with fixed cable (cable length 1.7 m), including telescope (can be extended to 0.85 m) and calibration protocol (0635 9532)
- Basic case for testo 440 and 1 probe
TESTO 440 16 mm Vane Kit Data
Temperature - NTC
Temperature - TC Type K (NiCr-Ni)
General technical data
Vane probe (Ø 16 mm, digital), wired: for measurements in ventilation ducts – measuring range +0.6 to +50 m/s
Velocity / Volume flow
General technical data
Temperature - NTC
| Measuring range |
-40 to +150 °C
|
|---|---|
| Accuracy |
±0.5 % of mv ±1 Digit (Remaining Range)
±0.4 °C ±1 Digit (+75 to +99.9 °C)
±0.2 °C ±1 Digit (-25 to +74.9 °C)
±0.4 °C ±1 Digit (-40 to -25.1 °C)
|
| Resolution |
0.1 °C
|
Temperature - TC Type K (NiCr-Ni)
| Measuring range |
-200 to +1370 °C
|
|---|---|
| Accuracy |
±(0.3 °C + 0.1 % of mv) ±1 Digit
|
| Resolution |
0.1 °C
|
General technical data
| Weight |
510 g (instrument)
|
|---|---|
| Dimensions |
210 x 95 x 39 mm ((LxWxH))
|
| Operating temperature |
-5 to +45 °C
|
| Product-/housing material |
Plastic
|
| Protection class |
IP40
|
| Connectable probes |
4 x digital Bluetooth® probe or testo Smart Probe; 2 x digital probe with fixed cable or temperature probe NTC with fixed cable (via Testo Universal Connector - TUC); 2 x temperature probe TC type K with fixed cable
|
| Product colour |
black/orange
|
| Camera image size |
Main camera: 8.0 MP; Front camera: 5.0 MP
|
| Battery life |
approx. 10 hrs continuous operation
|
| Display type |
5.0" touch display, HD 1280*720 pixels, IPS (160 k)
|
| Power supply |
Rechargeable li-ion battery (5550 mAh)
|
| Interface |
Bluetooth®; USB; WLAN
|
| Memory |
2 GB; 1,000,000 measuring values
|
| Storage temperature |
-20 to +60 °C
|
| *TUC connection (Testo Universal Connector): For the connection of fixed cable digital probes and NTC probes. | |
Vane probe (Ø 16 mm, digital), wired: for measurements in ventilation ducts – measuring range +0.6 to +50 m/s
Velocity / Volume flow
| Measuring range |
0.6 to 50 m/s
|
|---|---|
| Accuracy |
±(0.2 m/s + 1 % of mv) (0.6 to 40 m/s)
±(0.2 m/s + 2 % of mv) (40.1 to 50 m/s)
|
| Resolution |
0.1 m/s
|
General technical data
| Storage temperature |
-10 to +70 °C
|
|---|---|
| Weight |
150 g
|
| Dimensions |
330 x 16 x 16 mm
|
| Operating temperature |
-10 to +70 °C
|
| Cable length |
1.7 m
|
| Length telescope |
850 mm
|
| Probe head diameter |
16 mm
|
| Diameter telescope |
12 mm
|
| Product colour |
Black; silver
|
TESTO 440 16 mm Vane Kit Image
