Category
Stock Code
0563 4407
TESTO 440 Air Flow ComboKit 2 with Bluetooth®
Kit for carrying out measurements in ventilation ducts and at air outlets: The testo 440 air velocity and IAQ measuring instrument, the vane probe (Ø 100 mm) with Bluetooth® including temperature sensor and the vane probe (Ø 16 mm) are all safely stowed away in the case. So you can get down to work straight away!
Your advantages
Kit for carrying out measurements in ventilation ducts and at air outlets: The testo 440 air velocity and IAQ measuring instrument, the vane probe (Ø 100 mm) with Bluetooth® including temperature sensor and the vane probe (Ø 16 mm) are all safely stowed away in the case. So you can get down to work straight away!
Your advantages
- Intuitive: clearly structured measurement menu for volume flow and determination of air velocity, humidity and temperature in ventilation ducts or at ventilation outlets
- Clever: vane probe (Ø 16 mm) with telescope (0.85 m) – combine the vane probe (Ø 100 mm) with Bluetooth with the telescope for ceiling outlets or the funnel set for plate outlets (please order separately) as required
- Convenient: wireless probe, internal data storage and USB port for data export
- As multifaceted as your challenges themselves: the testo 440 can be expanded with a large portfolio of digital probes
TESTO 440 Air Flow ComboKit 2 with Bluetooth® Description
Delivery Scope
- testo 440 air velocity and IAQ measuring instrument, 3 x AA batteries, USB cable and calibration protocol (0560 4401)
- Vane probe (Ø 100 mm) with Bluetooth® including temperature sensor (consisting of 100 mm vane probe head, handle adapter and Bluetooth® handle); bracket for testovent measurement funnel, 4 x AA batteries and calibration protocol (0635 9431)
- Vane probe (Ø 16 mm) with fixed cable (cable length 1.7 m), including telescope (can be extended to 0.85 m) and calibration protocol (0635 9532)
- Combi-case for testo 440 and multiple probes (0516 4401)
TESTO 440 Air Flow ComboKit 2 with Bluetooth® Data
Temperature - NTC
Temperature - TC Type K (NiCr-Ni)
General technical data
Vane probe (Ø 100 mm, digital) with Bluetooth® including temperature sensor: for measurements at ceiling/air outlets and at plate outlets, ventilation grilles or swirl outlets – measuring range +0.3 to +35 m/s, -20 to +70 °C
General technical data
Temperature - NTC
Velocity / Volume flow
Vane probe (Ø 16 mm, digital), wired: for measurements in ventilation ducts – measuring range +0.6 to +50 m/s
Velocity / Volume flow
General technical data
Combi-case for testo 440 and multiple probes; for protecting and transporting the testo 440 (dP) air velocity and IAQ measuring instrument and multiple probes
General technical data
Temperature - NTC
| Measuring range |
-40 to +150 °C
|
|---|---|
| Accuracy |
±0.5 % of mv ±1 Digit (Remaining Range)
±0.4 °C ±1 Digit (+75 to +99.9 °C)
±0.2 °C ±1 Digit (-25 to +74.9 °C)
±0.4 °C ±1 Digit (-40 to -25.1 °C)
|
| Resolution |
0.1 °C
|
Temperature - TC Type K (NiCr-Ni)
| Measuring range |
-200 to +1370 °C
|
|---|---|
| Accuracy |
±(0.3 °C + 0.1 % of mv) ±1 Digit
|
| Resolution |
0.1 °C
|
General technical data
| Weight |
510 g (instrument)
|
|---|---|
| Dimensions |
210 x 95 x 39 mm ((LxWxH))
|
| Operating temperature |
-5 to +45 °C
|
| Product-/housing material |
Plastic
|
| Protection class |
IP40
|
| Connectable probes |
4 x digital Bluetooth® probe or testo Smart Probe; 2 x digital probe with fixed cable or temperature probe NTC with fixed cable (via Testo Universal Connector - TUC); 2 x temperature probe TC type K with fixed cable
|
| Product colour |
black/orange
|
| Camera image size |
Main camera: 8.0 MP; Front camera: 5.0 MP
|
| Battery life |
approx. 10 hrs continuous operation
|
| Display type |
5.0" touch display, HD 1280*720 pixels, IPS (160 k)
|
| Power supply |
Rechargeable li-ion battery (5550 mAh)
|
| Interface |
Bluetooth®; USB; WLAN
|
| Memory |
2 GB; 1,000,000 measuring values
|
| Storage temperature |
-20 to +60 °C
|
| *TUC connection (Testo Universal Connector): For the connection of fixed cable digital probes and NTC probes. | |
Vane probe (Ø 100 mm, digital) with Bluetooth® including temperature sensor: for measurements at ceiling/air outlets and at plate outlets, ventilation grilles or swirl outlets – measuring range +0.3 to +35 m/s, -20 to +70 °C
General technical data
| Storage temperature |
-20 to +60 °C
|
|---|---|
| Weight |
360 g
|
| Dimensions |
375 x 105 x 46 mm
|
| Operating temperature |
-5 to +50 °C
|
| Probe head diameter |
100 mm
|
| Product colour |
black/orange
|
| Battery type |
4 x type AA batteries
|
| Battery life |
60 h
|
| Data transfer |
Bluetooth®
|
| Radio range |
20 m
|
Temperature - NTC
| Measuring range |
-20 to +70 °C
|
|---|---|
| Accuracy |
±0.5 °C
|
| Resolution |
0.1 °C
|
Velocity / Volume flow
| Measuring range |
0.3 to 35 m/s
|
|---|---|
| Accuracy |
±(0.1 m/s + 1.5 % of mv) (0.3 to 20 m/s)
±(0.2 m/s + 1.5 % of mv) (20.01 to 35 m/s)
|
| Resolution |
0.01 m/s
|
Vane probe (Ø 16 mm, digital), wired: for measurements in ventilation ducts – measuring range +0.6 to +50 m/s
Velocity / Volume flow
| Measuring range |
0.6 to 50 m/s
|
|---|---|
| Accuracy |
±(0.2 m/s + 1 % of mv) (0.6 to 40 m/s)
±(0.2 m/s + 2 % of mv) (40.1 to 50 m/s)
|
| Resolution |
0.1 m/s
|
General technical data
| Storage temperature |
-10 to +70 °C
|
|---|---|
| Weight |
150 g
|
| Dimensions |
330 x 16 x 16 mm
|
| Operating temperature |
-10 to +70 °C
|
| Cable length |
1.7 m
|
| Length telescope |
850 mm
|
| Probe head diameter |
16 mm
|
| Diameter telescope |
12 mm
|
| Product colour |
Black; silver
|
Combi-case for testo 440 and multiple probes; for protecting and transporting the testo 440 (dP) air velocity and IAQ measuring instrument and multiple probes
General technical data
| Weight |
1400 g
|
|---|---|
| Dimensions |
516 x 135 x 256 mm
|
| Product colour |
Black
|

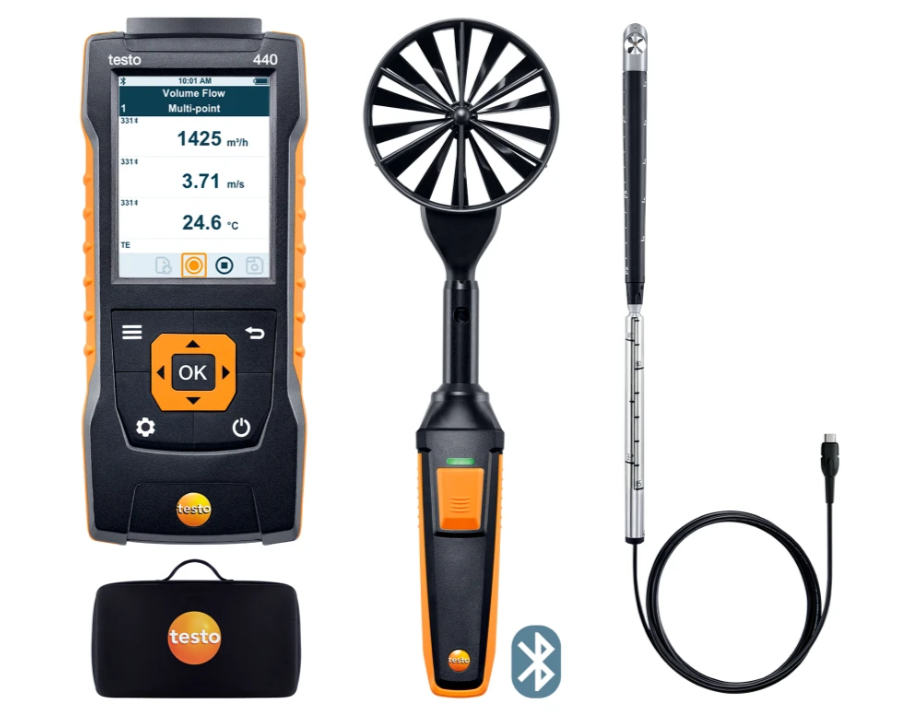

TESTO 440 Air Flow ComboKit 2 with Bluetooth® Image
