TESTO Differential Pressure Measuring Instrument | 510 Set
Delivery Scope

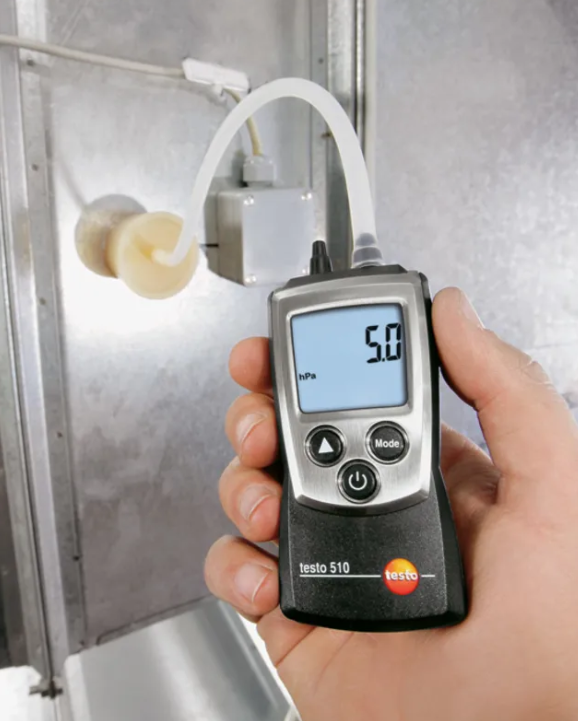

Differential pressure measurement on gas hot water heaters or on filters of air conditioning systems, and also flow measurements in ventilation ducts using a Pitot tube: the compact testo 510 differential pressure measuring instrument, which comes with a silicone connection hose and other useful accessories, can help you maintain and install systems in the sanitary and HVAC sector.
Your advantages
- Calculation of superheating and subcooling in real time: no manual calculation, which is prone to error
- With practical testo Smart App: Remote display and operation, graphic curve display, measurement value storage and documentation
- Precise external Pirani gauge for vacuum measurement, temperature-compensated leakage test, automatic ambient pressure measurement
- The 60 most common refrigerants are stored in the instrument, subsequent updates possible (via app)
TESTO Differential Pressure Measuring Instrument | 510 Set Description

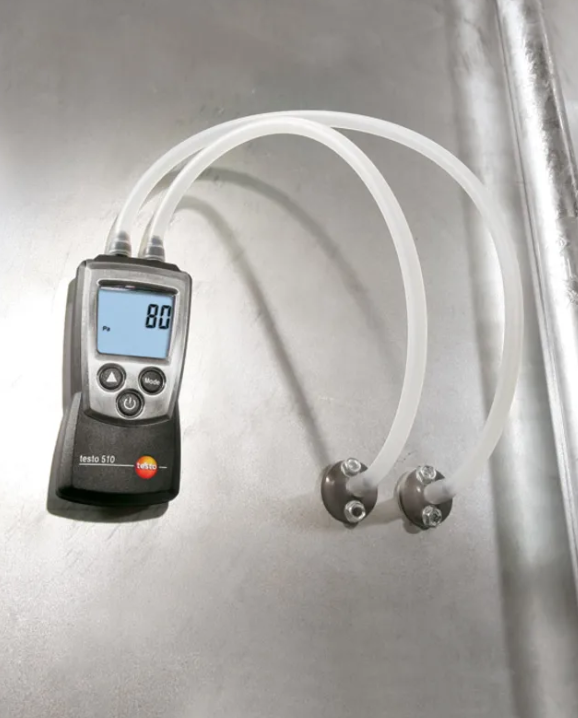

With the testo 510 differential pressure measuring instrument, heating installers and air conditioning engineers will be well-equipped to carry out their work: the instrument measures differential pressure from 0 to 100 hPa and can help you check filters on air conditioning systems or measure static gas and gas flow pressure on heating systems, for example.
The following units can be selected on the testo 510 differential pressure measuring instrument:
- Pa
- hPa
- mbar
- mmH2O
- mmHg
- inH2O
- inHg
- psi
- m/s
- fpm
In addition, you can measure the flow in the ventilation duct with a Pitot tube that is available as an option – from 10 to 100 m/s.
Practical and precise: key advantages offered by the differential pressure measuring instrument
- Precise: the differential pressure measurement has temperature and air density compensation for accurate readings
- Uncomplicated: small, handy and easy to operate with just three buttons
- Clever: you can work with your hands free thanks to magnets on the rear of the instrument. When there is poor visibility, such as in dark surroundings, the illuminated display makes it easier for you to work
- Reliable: a belt pouch and plug-on protective cap mean the differential pressure measuring instrument can be safely stowed away and it is also well-secured during measurement thanks to a wrist strap
- Ready to go: the silicone connection hose is included in the testo 510 set. So you can start your measurements straight away
Delivery Scope

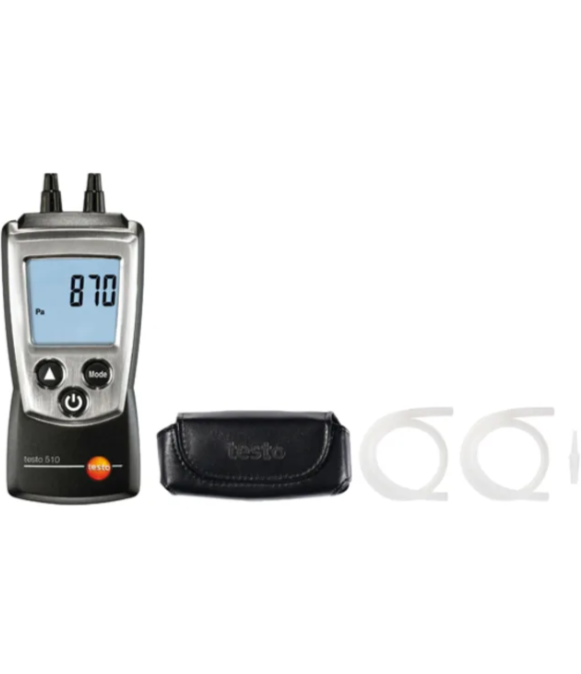

testo 510 set differential pressure measuring instrument, including silicone connection hose, protective cap, calibration protocol, belt pouch and batteries.
TESTO Differential Pressure Measuring Instrument | 510 Set Technical Data
General technical data
Differential Pressure - Piezoresistive
TESTO Differential Pressure Measuring Instrument | 510 Set Images
General technical data
| Dimensions |
119 x 46 x 25 mm
|
|---|---|
| Operating temperature |
0 to +50 °C
|
| Protection class |
IP40
|
| Seceltable units |
hPa, mbar, Pa, mmH2O, inH₂O, inHg, mmHg, psi, m/s, fpm
|
| Maximal static pressure |
500 mbar
|
| Measuring rate |
0.5 s
|
| Battery type |
2 AAA micro batteries
|
| Battery life |
50 h (average, without display illumination)
|
| Storage temperature |
-40 to +70 °C
|
| Weight |
90 g (with batteries and protective cap)
|
Differential Pressure - Piezoresistive
| Measuring range |
0 to 100 hPa
|
|---|---|
| Accuracy |
±0.03 hPa (0 to 0.30 hPa)
±(0.1 hPa + 1.5 % of mv) (1.01 to 100 hPa)
±0.05 hPa (0.31 to 1.00 hPa)
|
| Resolution |
0.01 hPa
|
