TESTO Digital Hot Wire Anemometer with App Connection | 425
Delivery Scope

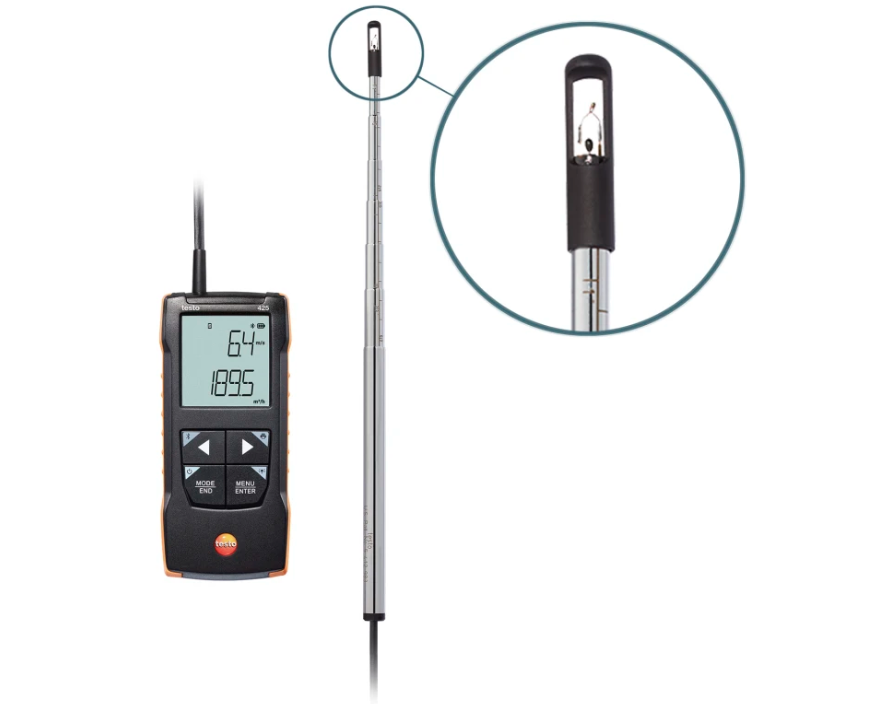

The compact hot wire anemometer testo 425 with telescopic probe is ideal for simple, fast and precise determination of flow velocity and volume flow in ventilation ducts of air conditioning and ventilation systems. The connection to the testo Smart App enables configuration, display (also as second screen) and storage as well as documentation of the measurement directly in the App.
Your advantages
- Simple, fast and precise flow and temperature measurement plus volume flow calculation in the ventilation duct
- More flexibility for duct measurements with the cable-connected telescopic probe (maximum length 820 mm)
- Fast in-app (duct) configuration, graph history, second screen and measurement data memory in the testo Smart App
- Timed and point mean value calculation
TESTO Digital Hot Wire Anemometer with App Connection | 425 Description
Optimally adjusted air conditioning and ventilation systems are a decisive factor for modern buildings. Accordingly, it is important to use the appropriate measurement technology to ensure that the flow, temperature and volume flow in the ventilation duct are correct. The testo 425 thermal anemometer is your fast, easy and precise companion. The cable-connected telescopic probe can be extended up to 820 mm, making it easier to work overhead or in large diameter ducts. All relevant calculations, such as volume flow or time and point averages, are performed automatically by the particularly robust and compact measuring instrument. Incidentally: Configuration of the measuring instrument, display and storage of measured values as well as documentation are all particularly convenient with the testo Smart App. This also turns your smartphone into a second display.
Delivery Scope

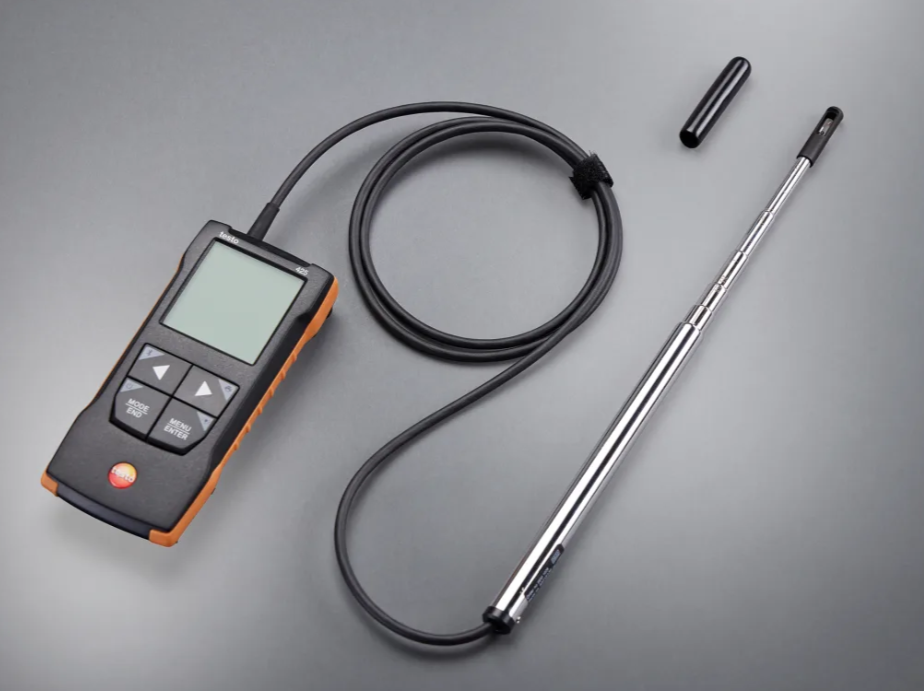

- testo 425 - Thermal hot wire anemometer with App connection and fixed telescope (max. 820 mm)
- Transport bag
- Calibration protocol
- 3 x AA batteries
TESTO Digital Hot Wire Anemometer with App Connection | 425 Technical Data
General technical data
Velocity -Thermal anemometer
Temperature - NTC
TESTO Digital Hot Wire Anemometer with App Connection | 425 Images
General technical data
| Weight |
268 g
|
|---|---|
| Dimensions |
135 x 60 x 28 mm
|
| Operating temperature |
Probe: -20 to +70 °C
-20 to +50 °C
|
| Product-/housing material |
ABS + PC / TPE
|
| Cable length |
1.5 m
|
| Diameter probe shaft |
7.5 mm
|
| Protection class |
IP40
IP20
|
| Length probe |
180 mm
|
| Battery life |
35 h
|
| Battery type |
3x AA
|
| Storage temperature |
-20 to +50 °C
|
Velocity -Thermal anemometer
| Measuring range |
0.01 to 30 m/s
|
|---|---|
| Accuracy |
±(0.5 m/s + 5.0 % of mv) (20.01 to +30 m/s)
±(0.03 m/s + 4.0 % of mv) (0.01 to +20 m/s)
|
| Resolution |
0.01 m/s
|
Temperature - NTC
| Measuring range |
-20 to +70 °C
|
|---|---|
| Accuracy |
±0.5 °C
|
| Resolution |
0.1 °C
|
