Stock Code
0590 7601

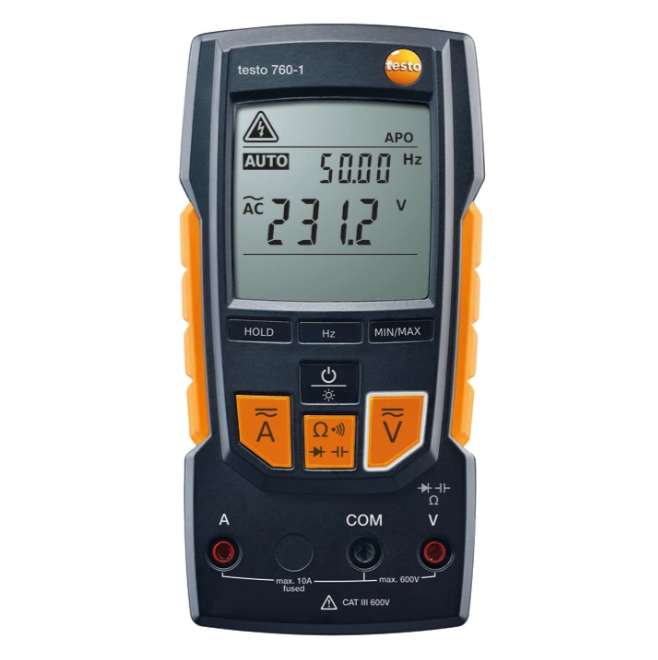

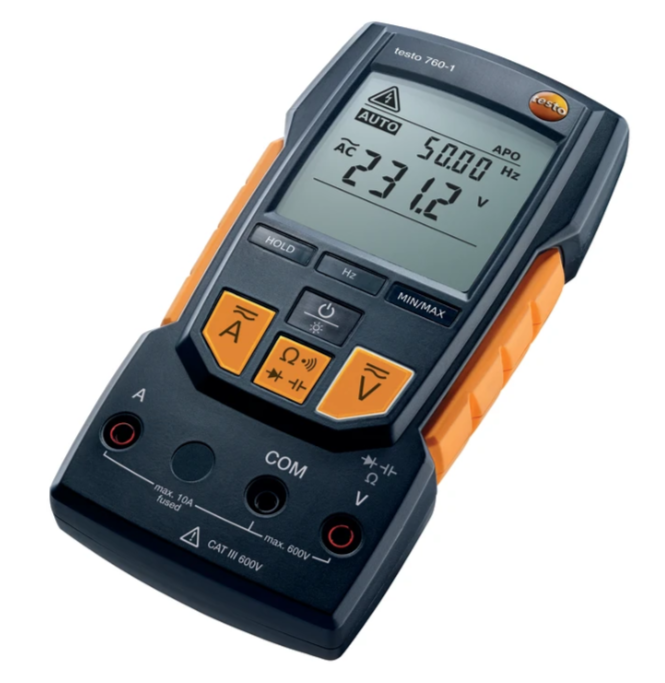

TESTO Digital Multimeter | 760-1
No dial, no risk: The testo 760-1 digital multimeter gives you easier and more reliable measurement of all important electrical parameters than ever before. Assignment of the measuring sockets enables automatic detection of measurement parameters. You don't need to make any adjustments – and you can't make any mistakes.
Your advantages
- Easy, reliable operation through automatic measurement parameter detection
- Prevents incorrect settings
- Suitable for almost all electrical measuring tasks
- Clear, illuminated display
TESTO Digital Multimeter | 760-1 Description
When measuring electrical parameters such as current, voltage or resistance, you depend on absolutely reliable measuring instruments. The testo 760-1 hands you a digital multimeter which sets new standards in terms of reliability.
In comparison to standard multimeters on the market, with the testo 760-1 there is no need to first select the measuring sockets and then the measurement function. The instrument detects the appropriate measurement parameter via the socket assignment all on its own – and so rules out any dangerous incorrect settings.
The operation of the multimeter is easier and more modern than ever. The traditional dial is replaced by function keys, enabling you to control the instrument with just one hand. And thanks to the large, illuminated display you can see your readings clearly at a glance. The testo 760-1 has the most important functions for your daily measuring tasks and is therefore the ideal entry-level instrument in the digital multimeter class.
Delivery Scope

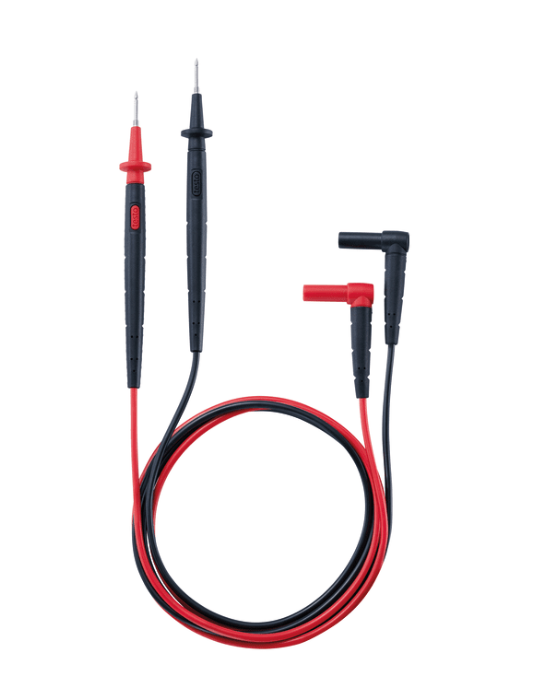

testo 760-1 multimeter, including batteries, 1 set of measuring cables (0590 0010) and instruction manual.
TESTO Digital Multimeter | 760-1 Technical Data
DC voltage
AC voltage
DC current
AC current
Resistance
Capacitance
Frequency
General technical data
Instrument Measurement Functions
TESTO Digital Multimeter | 760-1 Image
DC voltage
| Measuring range |
1 mV to 600 V
|
|---|---|
| Resolution |
max. 1 mA
|
| Accuracy |
± (0.8 % of mv + 3 Digits)
|
AC voltage
| Measuring range |
1 mV to 600 V
|
|---|---|
| Resolution |
max. 1.0 mV
|
| Accuracy |
± (1.0 % of mv + 3 Digits)
|
DC current
| Measuring range |
1 mA to 10 A
|
|---|---|
| Resolution |
max. 1 mA
|
| Accuracy |
± (1.5 % of mv + 5 Digits)
|
AC current
| Measuring range |
1 mA to 10 A
|
|---|---|
| Resolution |
max. 1 mA
|
| Accuracy |
± (1.0 % of mv + 3 Digits)
|
Resistance
| Resolution |
max. 0.1 Ohm
|
|---|---|
| Measuring range |
0.1 Ohm to 40.00 MOhm
|
| Accuracy |
± (1.5 % of mv + 3 Digits)
|
Capacitance
| Resolution |
max. 0.01 nF
|
|---|---|
| Measuring range |
0.01 nF to 100 μF
|
| Accuracy |
max. ± (1.5 % of mv + 5 Digits)
|
Frequency
| Resolution |
max. 0.001 Hz
|
|---|---|
| Measuring range |
0.001 Hz to 512.0 kHz
|
| Accuracy |
± (0.1 % of mv + 1 Digit)
|
General technical data
| Operating humidity |
0 to 80 %RH
|
|---|---|
| Weight |
340 g
|
| Dimensions |
167 x 85 x 45 mm
|
| Operating temperature |
-10 to +50 °C
|
| Product colour |
Black
|
| Protection class |
IP64
|
| Standards |
EN 61326-1; EN 61010-2-033; EN 61140
|
| Battery type |
3 AAA micro batteries
|
| Display size |
2 lines
|
| Display type |
LCD (Liquid Crystal Display)
|
| Interface |
4 measuring jacks
|
| Storage temperature |
-15 to +60 °C
|
| Overvoltage Category |
CAT III 600V
|
| Authorizations |
CSA; CE
|
| Internal_resistance |
11 MOhm (AC / DC)
|
Instrument Measurement Functions
| Diode test |
yes
|
|---|---|
| Continuity testing |
yes
|
| Display ligthing |
yes
|
| Hold |
yes
|
| MinMax |
yes
|
| Display (counts) |
4,000
|
| Autom. measurement parameter detection |
yes
|
