Stock Code
0632 0316

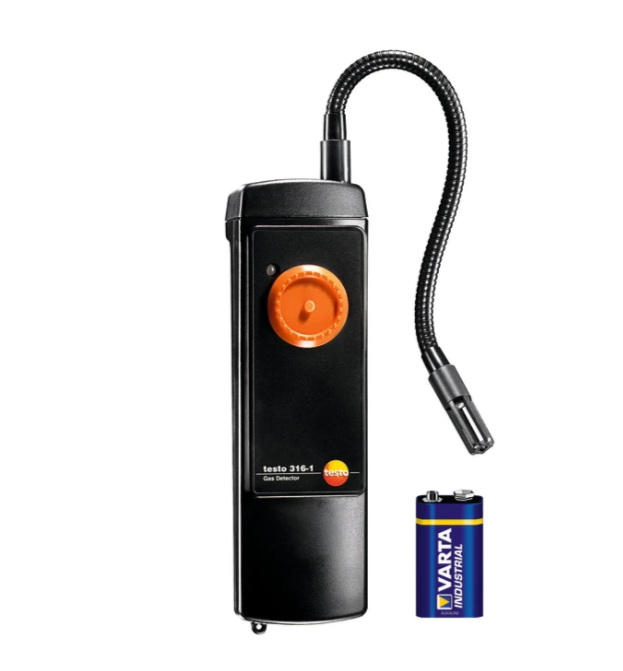

TESTO Gas Leak Detector | 316-1
Speedy and sure detection of gas leaks in natural gas pipes. The testo 316-1 leak detector with two-stage visual alarm system is ideal for carrying out quick and reliable checks.
Your advantages
- Speedy and sure leak detection in natural gas pipes
- Audible and two-stage visual alarm that are triggered when a threshold is crossed
- Flexible gooseneck sensor for hard-to-reach places
- Tested by DVGW
TESTO Gas Leak Detector | 316-1 Description
Hairline cracks in pipes, old and worn out gaskets. Even the tiniest of gas leaks in a natural gas pipe can cause enormous problems. The new testo 316-1 leak detector will help you pinpoint the exact position of a leak when the leak has already been detected using a leak measuring device, for example.
The testo 316-1 gas leak detector. The sure and easy way to detect methane gas
The testo 316-1 is an especially easy-to-use gas leak detector with an adjustable sensitivity dial. The leak detector is equipped with both a visual audible and an alarm. A yellow LED lights up when the reading is higher than 200 ppm CH4. The LED changes to red when the reading is higher than 10 000 ppm CH4. This special feature allows you to pinpoint the exact position of the leak. The testo 316-1 is also equipped with a flexible gooseneck sensor for locating gas leaks in especially hard-to-reach or otherwise inaccessible places.
The optional TopSafe protective cover is designed to protect your detector against impact and keeps out dust and dirt.
Delivery Scope
testo 316-1 electronic gas leak detector, battery.
TESTO Gas Leak Detector | 316-1 Technical Data
| Operating humidity |
0 to 95 %RH
|
|---|---|
| Weight |
300 g
|
| Reaction time |
t₉₀ < 5 s
|
| Dimensions |
190 x 57 x 42 mm (without sensors)
|
| Operating temperature |
+4 to +45 °C
|
| Heat up time |
30 s
|
| Battery type |
9V block battery
|
| Battery life |
> 5 h
|
| Storage temperature |
-20 to +50 °C
|
Methane (CH₄)
| Measuring range |
100 to 10000 ppm CH₄
|
|---|---|
| Lower response threshold |
100 ppm
|
| 1st alarm limit |
200 ppm CH₄ (LED yellow)
|
| 2nd alarm limit |
10000 ppm CH₄ (LED red)
|
TESTO Gas Leak Detector | 316-1 Images
