TESTO Heat Pump Entry-Level Kit | 550S
The testo 550s digital manifold makes it possible to carry out wireless measurements and digital documentation with its large graphic display. You will receive the testo 550s digital manifold with 2-way valve block and sturdy hook, two testo 115i wireless clamp thermometers and 3-hose filling set 7/16" UNF.
Your advantages
The testo 550s digital manifold makes it possible to carry out wireless measurements and digital documentation with its large graphic display. You will receive the testo 550s digital manifold with 2-way valve block and sturdy hook, two testo 115i wireless clamp thermometers and 3-hose filling set 7/16" UNF.
Charge refrigeration systems automatically with speed and precision using the testo 560i wireless refrigerant scale, the intelligent refrigerant valve, the testo 550s digital manifold and the testo Smart App. Simply input the charging program, the target value for superheating, subcooling or weight in the app, and let the scale and valve do the rest for you.
Advantages of the testo 550s heat pump entry-level kit: Carry out your everyday work on heat pumps wirelessly, conveniently and reliably. All data can be viewed on the large graphic display or on your smartphone or tablet via the testo Smart App.
Your advantages
- The testo 550s digital manifold with large graphic display, exceptionally compact and reliable thanks to its practical robust housing with protection class IP 54
- Includes Bluetooth and 2-way valve block with 2 x testo 115i wireless clamp temperature probes
- The testo 560i digital refrigerant scale with automatic and precise refrigerant charging according to target superheat, subcooling and weight thanks to the intelligent valve
- Particularly handy thanks to its compact housing, low weight and practical carrying handle
TESTO Heat Pump Entry-Level Kit | 550S Description
- testo 550s digital 2-way manifold with batteries (4 x AA) and calibration protocol
- 2 x testo 115i wireless Bluetooth clamp thermometers
- 3-hose filling set 7/16" UNF
- Transport case
- testo Smart App (free download)

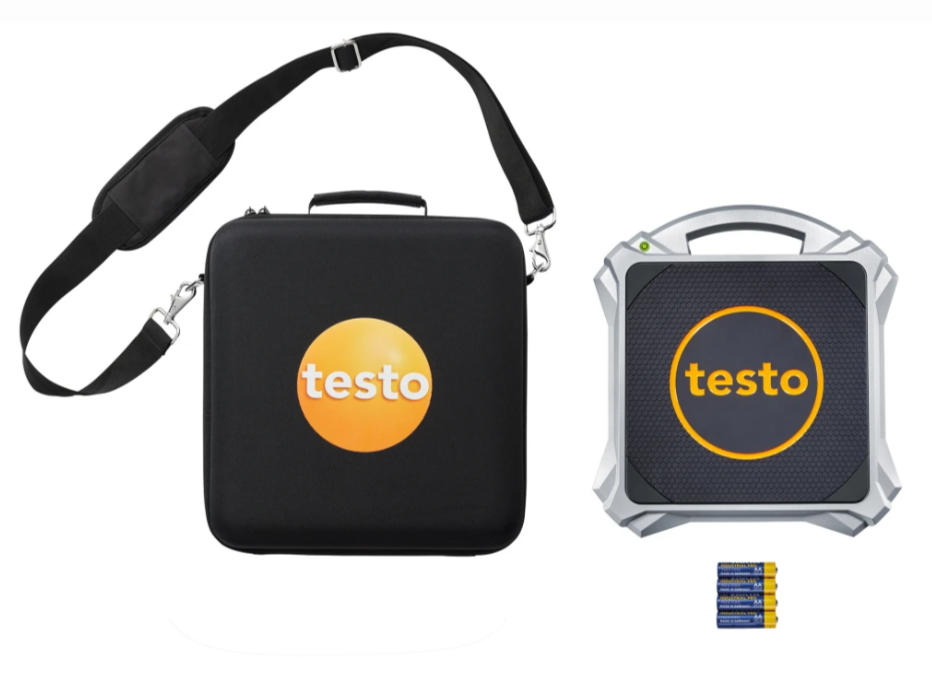

- testo 560i digital refrigerant scale with Bluetooth
- Refrigerant valve with Bluetooth
- Shoulder bag
- 4 x batteries (AA), 1 x 9 V (6LR61) battery
TESTO Heat Pump Entry-Level Kit | 550S Technical Data

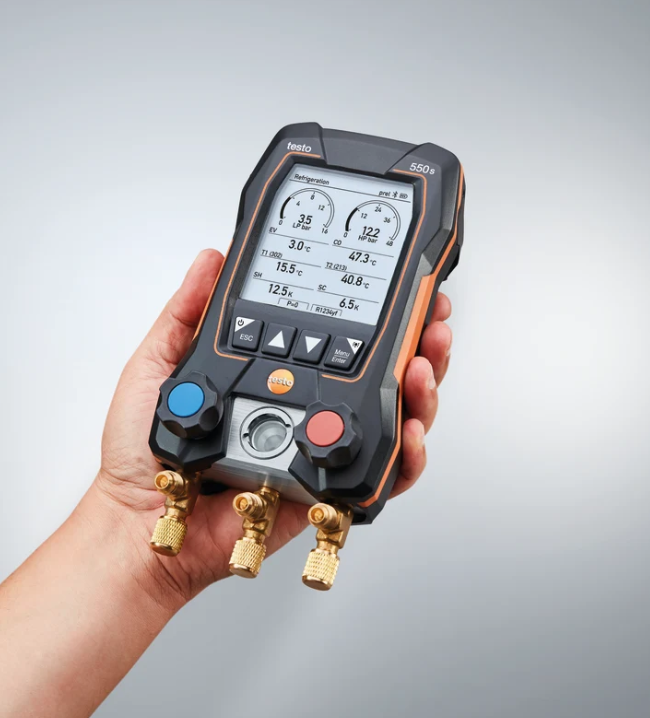

Testo 550s - Smart digital manifold with Bluetooth and 2-way valve block
Temperature
Pressure measurement
General Technical Data
Testo 115i - Clamp thermometer operated via smartphone
Temperature - NTC
Testo Smart App with the full range of functions - available as a free download
General Technical Data
testo 560i - Digital refrigerant scale with Bluetooth
General Technical Data
Intelligent refrigerant valve with Bluetooth for digital refrigerant scale testo 560i
General Technical Data
TESTO Heat Pump Entry-Level Kit | 550S Images
Testo 550s - Smart digital manifold with Bluetooth and 2-way valve block
Temperature
| Measuring range |
-50 to +150 °C
|
|---|---|
| Accuracy |
±0.5 °C
|
| Resolution |
0.1 °C
|
| Probe connection |
2 x plug-in (NTC)
|
Pressure measurement
| Measuring range |
-1 to 60 bar
|
|---|---|
| Accuracy |
±0.5 % fs
|
| Resolution |
0.01 bar
|
| Probe connection |
3 x 7/16" – UNF
|
| Overload rel. (high pressure) |
65 bar
|
General Technical Data
| Weight |
826 g
|
|---|---|
| Dimensions |
210 x 121 x 60 mm (LxWxH)
|
| Operating temperature |
-20 to +50 °C
|
| Protection class |
IP54
|
| System requirements |
requires iOS 11.0 or newer; requires Android 6.0 or newer; requires mobile end device with Bluetooth 4.0
|
| Product colour |
Black
|
| Auto-off |
10 min*
|
| Battery life |
250 h with no illumination, no Bluetooth®; 100 h with illumination and Bluetooth®
|
| Battery type |
4 x type AA batteries
|
| Data transfer |
Bluetooth®
|
| Radio range |
150 m
|
| Refrigerants in instrument |
R114; R12; R123; R1233zd; R1234yf; R1234ze; R124; R125; R13; R134a; R22; R23; R290; R32; R401A; R401B; R402A; R402B; R404A; R407A; R407C; R407F; R407H; R408A; R409A; R410A; R414B; R416A; R420A; R421A; R421B; R422B; R422C; R422D; R424A; R427A; R434A; R437A; R438A; R442A; R444B; R448A; R449A; R450A; R452A; R452B; R453a; R454A; R454B; R454C; R455A; R458A; R500; R502; R503; R507; R513A; R600a; R718 (H₂O); R744 (CO₂)
|
| Refrigerants update via App |
R11; FX80; I12A; R1150; R1270; R13B1; R14; R142B; R152A; R161; R170; R227; R236fa; R245fa; R401C; R406A; R407B; R407D; R41; R411A; R412A; R413A; R417A; R417B; R417C; R422A; R426A; R508A; R508B; R600; RIS89; SP22
|
| Storage temperature |
-20 to +60 °C
|
| * when not connected via Bluetooth | |
Testo 115i - Clamp thermometer operated via smartphone
Temperature - NTC
| Measuring range |
-40 to +150 °C
|
|---|---|
| Accuracy |
±1.3 °C (-20 to +85 °C)
|
| Resolution |
0.1 °C
|
Testo Smart App with the full range of functions - available as a free download
General Technical Data
| System requirements |
requires iOS 13.0 or newer; requires Android 8.0 or newer; requires mobile end device with Bluetooth 4.0
|
|---|---|
testo 560i - Digital refrigerant scale with Bluetooth
General Technical Data
| Operating humidity |
0 to 80 %RH
|
|---|---|
| Weight |
4.36 kg (incl. batteries and bag)
|
| Measuring range |
0 to 100 kg
|
| Accuracy |
Operating temperature +22 °C:
≤ ±(10 g+ 0.03 %rdg) (0 to 30 kg)
≤ ±(10 g+ 0.05 %rdg) (30 to 100 kg)
|
| Resolution |
0.01 kg
|
| Dimensions |
310 x 287 x 58 mm (LxWxH)
|
| Operating temperature |
-10 to +50 °C
|
| Protection class |
IP44
|
| Battery life |
> 70 h at +25 °C
|
| Battery type |
4 x type AA batteries
|
| Interface |
Bluetooth® 4.2
|
| Radio range |
30 m
|
| Storage temperature |
-10 to +50 °C
|

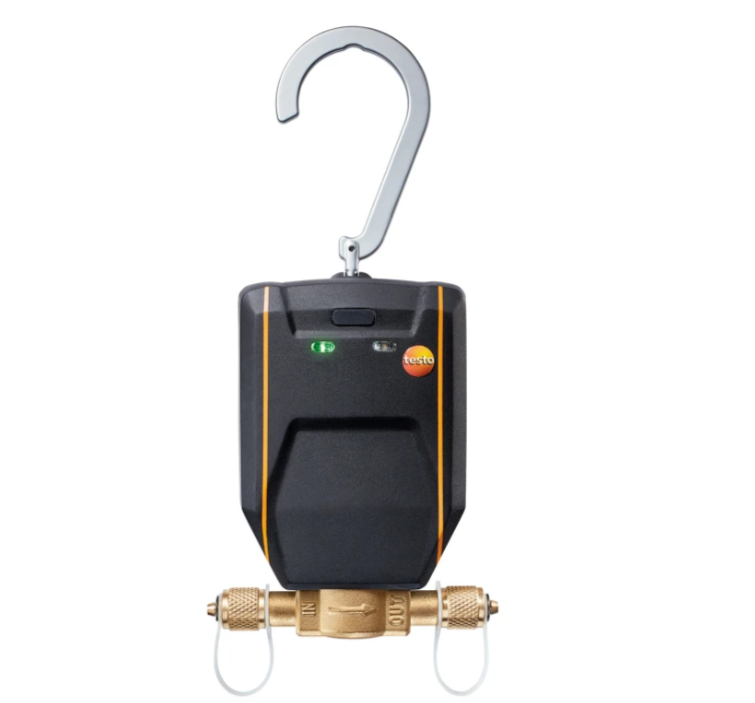

Intelligent refrigerant valve with Bluetooth for digital refrigerant scale testo 560i
General Technical Data
| Operating humidity |
0 to 80 %RH
|
|---|---|
| Weight |
570 g (incl. batteries)
|
| Dimensions |
95 x 119 x 47 mm (LxWxH)
|
| Operating temperature |
-10 to +50 °C
|
| Protection class |
IP54
|
| Product colour |
black/orange; silver
|
| Maximum working pressure |
35 bar
|
| Battery type |
9 V (6LR61)
|
| Battery life |
>60 hrs + 3000 valve operations
|
| Interface |
Bluetooth® 4.2
|
| Radio range |
50 m
|
| Storage temperature |
-10 to +50 °C
|
