Stock Code
0590 7450
TESTO Non-Contact Voltage Tester | 745
The testo 745 non-contact voltage tester is ideally suited for fast initial checking of any suspected fault sources. It filters high-frequency interference signals and has a two-stage sensitivity setting.
Your advantages
- Voltage range up to 1,000 V
- Waterproof and dustproof according to IP 67
- Adjustable for phase detection or voltage indication
- Visual and acoustic signal
TESTO Non-Contact Voltage Tester | 745 Description
The testo 745 non-contact voltage tester means you can quickly and easily determine voltage or de-energization. In contrast to most other models on the market, it has a filter for high-frequency interference signals which enables reliable voltage indication. If voltage is determined, the instrument gives a warning via a clear visual and acoustic signal.

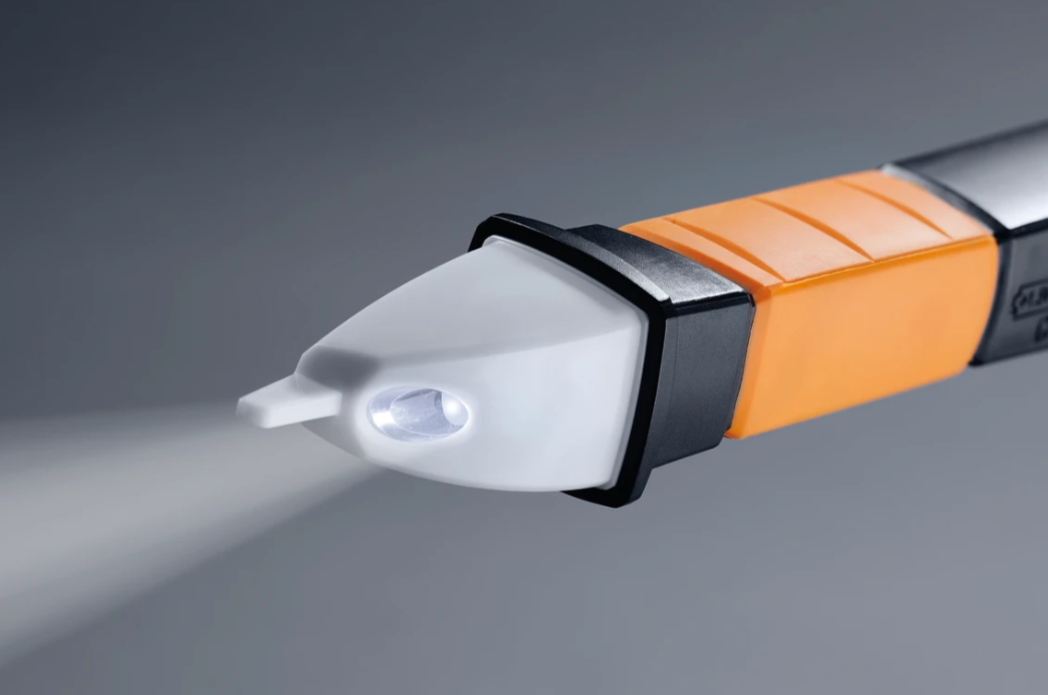

The sensitivity of the instrument can be set in two stages: stage 1 for phase detection, stage 2 for voltage indication. The integrated torch also enables you to work safely in dark surroundings. In addition, the testo 745 voltage tester is both waterproof and dustproof according to IP 67.
Delivery Scope
testo 745 non-contact voltage tester, including batteries, calibration protocol and instruction manual.
TESTO Non-Contact Voltage Tester | 745 Technical Data
AC voltage
General technical data
Instrument Measurement Functions
TESTO Non-Contact Voltage Tester | 745 Image
AC voltage
| Measuring range |
12 to 1000 V
|
|---|---|
General technical data
| Operating humidity |
0 to 80 %RH
|
|---|---|
| Weight |
55 g
|
| Dimensions |
155 x 25 x 23 mm
|
| Operating temperature |
-10 to +50 °C
|
| Product colour |
Black
|
| Protection class |
IP67
|
| Standards |
EN 61326-1; EN 61010-1
|
| Alarm function |
via LED; audible
|
| Battery type |
2 AAA micro batteries
|
| Storage temperature |
-15 to +60 °C
|
| Overvoltage Category |
CAT IV 1000 V
|
| Authorizations |
CSA; CE
|
Instrument Measurement Functions
| Measuring point illumination |
yes
|
|---|---|
TESTO Non-Contact Voltage Tester | 745 Image
