Category
Stock Code
0609 1273
TESTO Robust Waterproof Immersion/Penetration Probe (Pt100)
The robust waterproof immersion and penetration probe (with the appropriate measuring instrument) enables particularly accurate temperature measurement in liquid and semi-solid media.
Your advantages
The robust waterproof immersion and penetration probe (with the appropriate measuring instrument) enables particularly accurate temperature measurement in liquid and semi-solid media.
Your advantages
- Pt100 sensor for particularly accurate measurement results
- Ideal for laboratory application
- Waterproof
- Measuring range: -50 to +400 °C
TESTO Robust Waterproof Immersion/Penetration Probe (Pt100) Description
The robust waterproof immersion and penetration probe (Pt100) provides precise measurement results and is particularly well-suited for laboratory applications. The fact that the probe is waterproof makes it extremely practical.
Delivery Scope
Robust waterproof immersion/penetration probe (Pt100) with 1.3 m fixed cable.
TESTO Robust Waterproof Immersion/Penetration Probe (Pt100) Technical Data
General Technical Data
Temperature - Pt100
TESTO Robust Waterproof Immersion/Penetration Probe (Pt100) Technical Data
General Technical Data
| Length probe shaft tip |
50 mm
|
|---|---|
| Diameter probe shaft |
5 mm
|
| Diameter probe shaft tip |
3.7 mm
|
| Cable length |
1.2 m
|
| Fixed cable |
yes
|
| Length probe shaft |
114 mm
|
Temperature - Pt100
| Measuring range |
-50 to +400 °C
|
|---|---|
| Accuracy |
Class A (-50 to +300 °C)
Class B (Remaining Range) ¹⁾
|
| Reaction time |
12 s
|
| 1) According to standard 60751, the accuracies of Class A and B refer to -200 to +600 °C (Pt100) | |

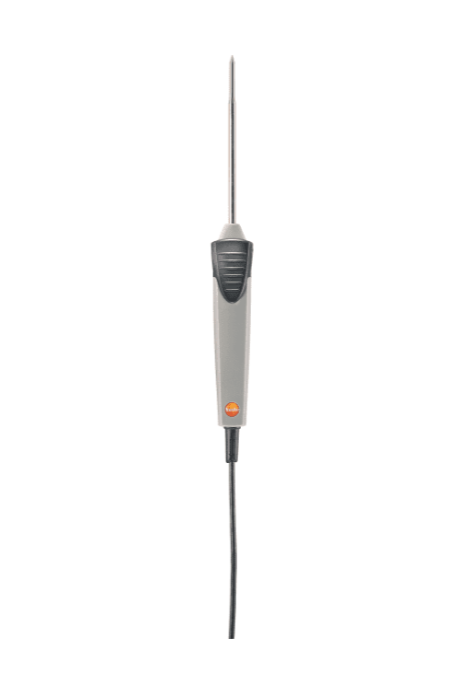

TESTO Robust Waterproof Immersion/Penetration Probe (Pt100) Image
