TESTO Temperature Probe with Velcro (TC Type K)
Temperature probe with Velcro for surface measurements on pipes.
Your advantages
Temperature probe with Velcro for surface measurements on pipes.
Your advantages
- With Velcro: makes it easy to attach the surface probe to pipes with a diameter of up to 120 mm
- TC Type K temperature probe with 1.5 m cable
- Measuring range: -50 to +120 °C
TESTO Temperature Probe with Velcro (TC Type K) Description
Use this temperature probe with thermocouple (TC) sensor to carry out surface temperature measurements on pipes with a pipe diameter of up to 120 mm. For example, you can use it to determine the surface temperature of heating pipes.
The TC sensor for measuring temperature is attached to a 20 mm wide, 395 mm long strip. The Velcro fastener on this strip enables the surface probe to be attached to the pipe quickly and easily.
For optimum heat transfer between the surface probe and the measurement object, we recommend using our optional silicone thermal conduction paste.
The surface probe features a 1.5 m cable.
This Type K, Class 1 thermocouple probe has a standardized accuracy of ±1.5 °C.
The perfect probe for any application
Don't see the temperature probe you are looking for? Please contact us directly. We have a large range of standard temperature probes and we also manufacture customized probes specifically according to your personal requirements.
Delivery Scope
1 x TC Type K temperature probe 0628 0020.
TESTO Temperature Probe with Velcro (TC Type K) Technical Data
Temperature - TC Type K (NiCr-Ni)
| Measuring range |
-50 to +120 °C
|
|---|---|
| Accuracy |
Class 1 ¹⁾
|
| Reaction time |
90 s
|
| 1) According to standard EN 60584-1, the accuracy of Class 1 refers to -40 to +1000 °C (Type K) | |
General technical data
| Weight |
18 g
|
|---|---|
| Diameter |
120 mm
|
| Temperature maximum |
120 °C
|
| Diameter probe shaft tip |
20 mm
|
| Length probe shaft |
395 mm
|
| Product colour |
Black
|
| Interface |
plug thermocouple
|

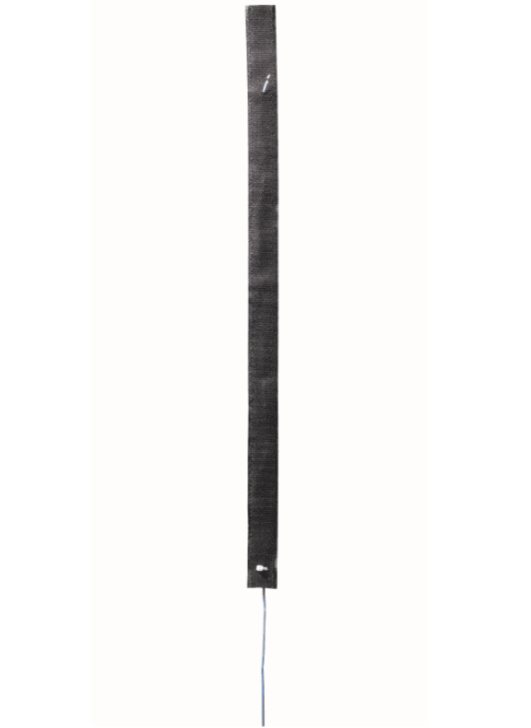

TESTO Temperature Probe with Velcro (TC Type K) Image
