Category
Stock Code
0563 1417

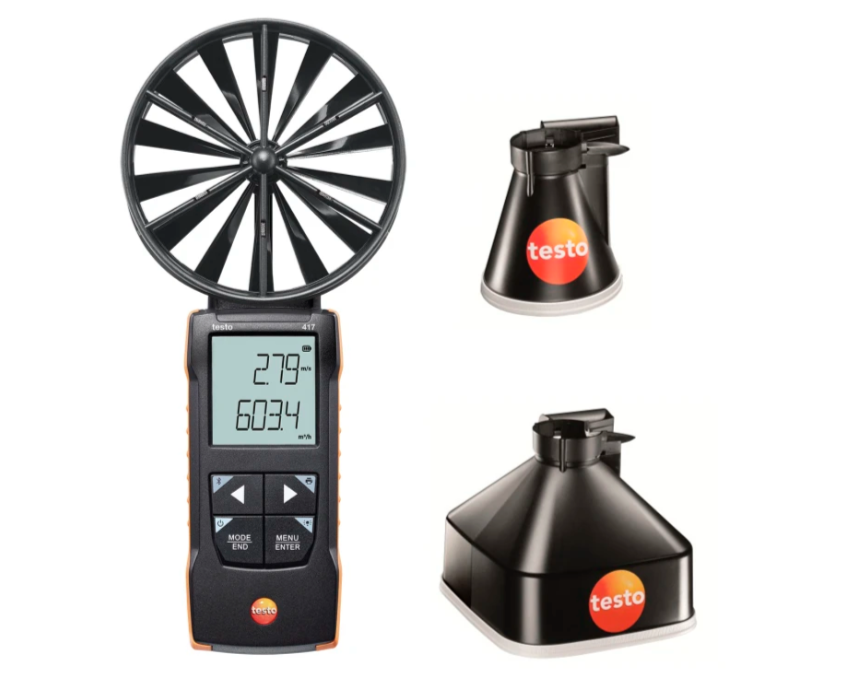

TESTO Vane Anemometer with Smartphone Operation | 417 Kit 1
The compact vane anemometer testo 417 in a kit incl. two measurement funnels was developed to make it as easy as possible for you to take measurements on air inlets and outlets as well as plate outlets of air conditioning and ventilation systems. The integrated 100 mm vane quickly ensures precise results. Time and point average values as well as the volume flow are automatically calculated in the instrument and shown on the display. This allows balanced residential ventilation systems to be adjusted particularly efficiently - including quick documentation with the testo Smart App.
In addition, the App not only supports you in configuring the measuring instrument and takes over display, storage and documentation of the measured values – it also turns your smartphone into a second display. The testo 417 Kit 1 includes two measuring funnels for plate outlets and ventilation grilles. These can be easily attached to the vane, covering a wide range of outlet sizes and formats.
Your advantages
- Easy, fast and precise measurement of flow, volume flow and temperature at air inlets and outlets
- Efficient regulation of balanced residential ventilation and fast documentation with the testo Smart App
- Fast in-app configuration, graph history, second screen and measurement data memory in the testo Smart App
- Timed and point mean value calculation
TESTO Vane Anemometer with Smartphone Operation | 417 Kit 1 Description
Delivery Scope
- testo 417 - 100 mm vane anemometer with App connection
- Measuring funnel for plate outlets
- Measuring funnel for ventilation grilles
- Transport bag
- Calibration protocol
- 3 x AA batteries
TESTO Vane Anemometer with Smartphone Operation | 417 Kit 1 Technical Data
Temperature - NTC
Velocity - Vane
General technical data
General technical data
TESTO Vane Anemometer with Smartphone Operation | 417 Kit 1 Images
Temperature - NTC
| Measuring range |
0 to +50 °C
|
|---|---|
| Accuracy |
±0.5 °C
|
| Resolution |
0.1 °C
|
Velocity - Vane
| Measuring range |
0.3 to 20 m/s
|
|---|---|
| Accuracy |
±(0.1 m/s + 1.5 % of mv)
|
| Resolution |
0.01 m/s
|
General technical data
| Measuring range |
0 to +99999 m³/h
0 to +440 m³/h (testo 417 in combination with funnel set (0563 4170))
0.1 to +200 m³/h , preferred 0,1 to 100 m³/h (testo 417 in combination with funnel & flow straightener (0554 4172))
|
|---|---|
| Resolution |
0.1 m³/h (0 to +100 )
1 m³/h (Remaining Range)
|
General technical data
| Weight |
243 g
|
|---|---|
| Dimensions |
236 x 108 x 45 mm
|
| Operating temperature |
-20 to +50 °C
|
| Product-/housing material |
ABS + PC / TPE
|
| Protection class |
IP40
IP20
|
| Battery life |
50 h
|
| Battery type |
3x AA
|
| Storage temperature |
-20 to +50 °C
|
TESTO Vane Anemometer with Smartphone Operation | 417 Kit 1 Images
