TESTO Vane Anemometer with Measuring Funnels and Flow Straightener | 417 Kit 2
The compact vane anemometer testo 417 in Kit 2 including two measurement funnels and a flow straightener was developed to make it as easy as possible for you to take measurements on air inlets and outlets as well as plate and swirl outlets of air conditioning and ventilation systems. The integrated 100 mm vane quickly ensures precise results. Time and point average values as well as the volume flow are automatically calculated in the instrument and shown on the display. This allows balanced residential ventilation systems to be adjusted particularly efficiently - including quick documentation with the testo Smart App.
In addition, the App not only supports you in configuring the measuring instrument and takes over display, storage and documentation of the measured values – it also turns your smartphone into a second display. The testo 417 Kit 2 includes two measuring funnels and a volume flow straightener for precise results even at swirl outlets.
Your advantages
- Easy, fast and precise measurement of flow, volume flow and temperature at air inlets and outlets
- Efficient regulation of balanced residential ventilation and fast documentation with the testo Smart App
- Fast in-app configuration, graph history, second screen and measurement data memory in the testo Smart App
- Timed and point mean value calculation
TESTO Vane Anemometer with Measuring Funnels and Flow Straightener | 417 Kit 2 Description

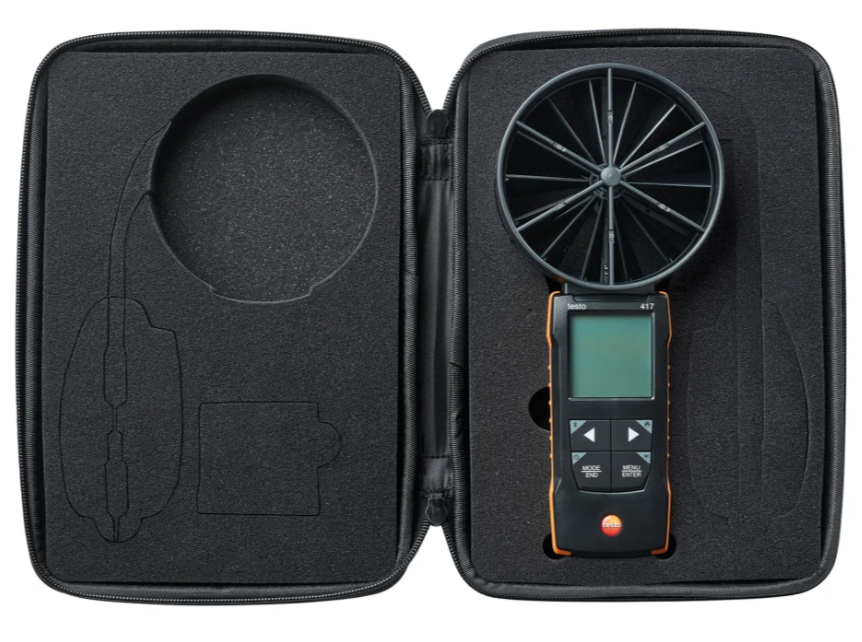

Delivery Scope
- testo 417 - 100 mm vane anemometer with App connection
- Measuring funnel for plate outlets
- Measuring funnel for ventilation grilles
- Flow straightener
- Transport bag
- Calibration protocol
- 3 x AA batteries
TESTO Vane Anemometer with Measuring Funnels and Flow Straightener | 417 Kit 2 Technical Data
testo 417 - Digital 100 mm vane anemometer with App connection
Temperature - NTC
Velocity - Vane
Volume flow
General technical data
Flow straightener testovent 417
General technical data
Velocity - Vane
TESTO Vane Anemometer with Measuring Funnels and Flow Straightener | 417 Kit 2 Images
testo 417 - Digital 100 mm vane anemometer with App connection
Temperature - NTC
| Measuring range |
0 to +50 °C
|
|---|---|
| Accuracy |
±0.5 °C
|
| Resolution |
0.1 °C
|
Velocity - Vane
| Measuring range |
0.3 to 20 m/s
|
|---|---|
| Accuracy |
±(0.1 m/s + 1.5 % of mv)
|
| Resolution |
0.01 m/s
|
Volume flow
| Measuring range |
0 to +99999 m³/h
0 to +440 m³/h (testo 417 in combination with funnel set (0563 4170))
0.1 to +200 m³/h , preferred 0,1 to 100 m³/h (testo 417 in combination with funnel & flow straightener (0554 4172))
|
|---|---|
| Resolution |
0.1 m³/h (0 to +100 )
1 m³/h (Remaining Range)
|
General technical data
| Weight |
243 g
|
|---|---|
| Dimensions |
236 x 108 x 45 mm
|
| Operating temperature |
-20 to +50 °C
|
| Product-/housing material |
ABS + PC / TPE
|
| Protection class |
IP40
IP20
|
| Battery life |
50 h
|
| Battery type |
3x AA
|
| Storage temperature |
-20 to +50 °C
|
Flow straightener testovent 417
General technical data
| Weight |
554 g
|
|---|---|
| Dimensions |
370 x 190 x 210 mm
|
| Operating temperature |
0 to +50 °C
|
| Product-/housing material |
PA66 + GF30%
|
Velocity - Vane
| Measuring range |
0.1 to +200 m³/h
preferred 0.1 to +100 m³/h
|
|---|---|
