Stock Code
0590 7502
TESTO Voltage Tester | 750-2
With the testo 750-2 voltage tester you can test electrical systems and equipment reliably and easily for voltage or de-energization thanks to the all-round LED display and unique fibre-optic technology. Compared to the testo 750-1, it is also suitable for single pole voltage testing to determine quickly whether conductors are live.
Your advantages
- Clear, patented all-round LED display
- In accordance with DIN EN 61243-3:2014 and CAT III
- With practical torch for measuring point illumination
- Including RC trigger function and vibrating load buttons
TESTO Voltage Tester | 750-2 Description

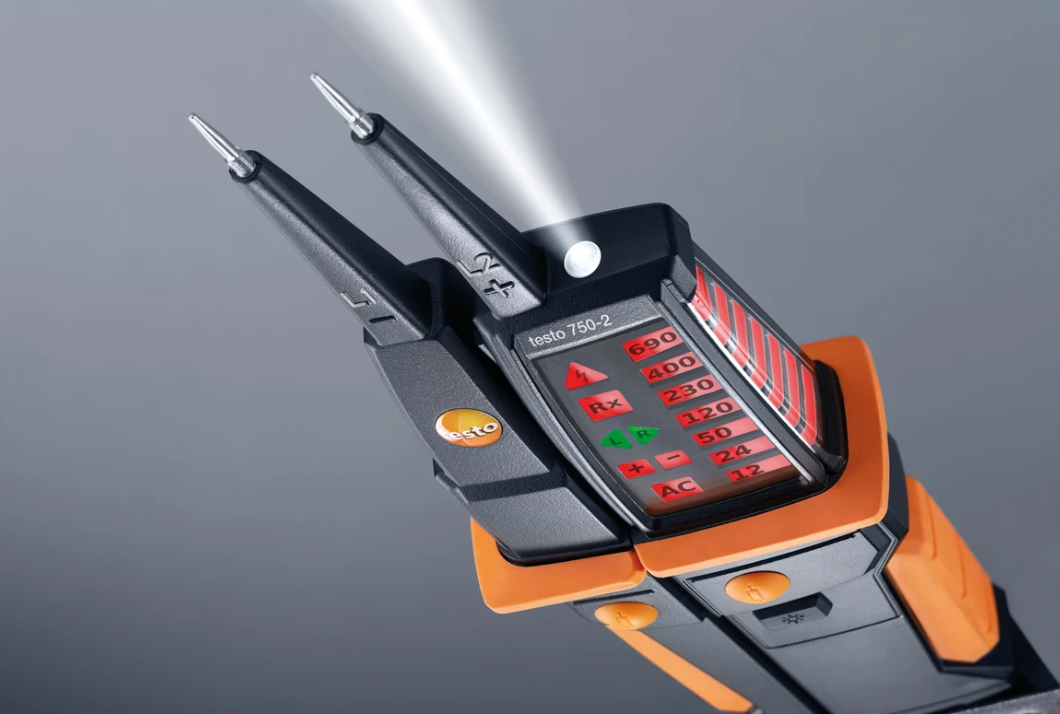

The testo 750-2 voltage tester means you can work more conveniently than ever before. Its clear, patented all-round LED display can easily be read in any position and indicates the presence of voltage clearly and distinctly with large fibre-optic illuminators. It can be held securely in your hand thanks to the deep-seated anti-slip ring and the ergonomic handle. You can easily illuminate dark measuring points using the integrated torch. The robust housing makes the voltage tester extremely durable.
In addition to determining voltage or de-energization on electrical circuits or systems, the testo 750-2 voltage tester is also suitable for use as a continuity tester and for rotating magnetic field measurement. It also has an RC trigger function for testing residual current circuit breakers. Vibrating load buttons ensure that trigger tests cannot be carried out accidentally.
Delivery Scope
testo 750-2 voltage tester, including batteries, measuring tip protector, measuring tip caps, calibration protocol and instruction manual.
TESTO Voltage Tester | 750-2 Technical Data
DC voltage
AC voltage
General technical data
Instrument Measurement Functions
TESTO Voltage Tester | 750-2 Image
DC voltage
| Measuring range |
12 to 690 V
|
|---|---|
| Accuracy |
according to DIN EN 61243-3:2014
|
AC voltage
| Measuring range |
12 to 690 V
|
|---|---|
| Accuracy |
according to DIN EN 61243-3:2014
|
General technical data
| Operating humidity |
0 to 95 %RH
|
|---|---|
| Weight |
295 g
|
| Dimensions |
270 x 72 x 35 mm
|
| Operating temperature |
-10 to +50 °C
|
| Product colour |
Black
|
| Protection class |
IP64
|
| Standards |
EN 61243-3; EN 61326-1; EN 61010-1
|
| Battery type |
2 AAA micro batteries
|
| Storage temperature |
-15 to +60 °C
|
| Overvoltage Category |
CAT IV 600 V; CAT III 690 V
|
| Authorizations |
TÜV; CSA; CE
|
Instrument Measurement Functions
| Continuity testing |
yes
|
|---|---|
| RDC/RC trigger function |
yes
|
| Rotating magnetic field testing |
yes
|
| Single pole phase testing |
yes
|
| Measuring point illumination |
yes
|
TESTO Voltage Tester | 750-2 Image
