0560 5210

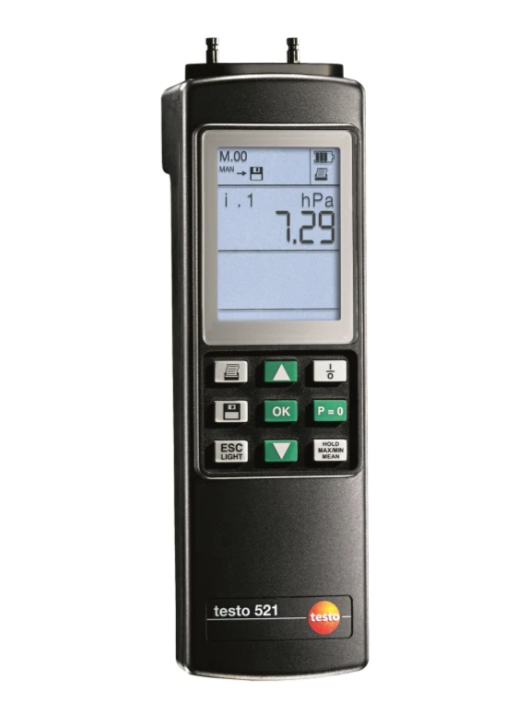

TESTO Differential Pressure Measuring Instrument (0.2 % of f.v.) | 521-1

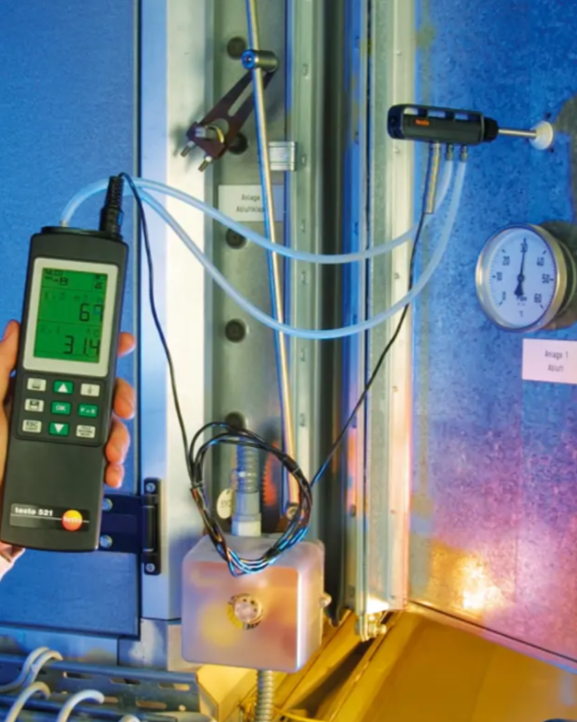

The high-precision testo 521-1 differential pressure measuring instrument is ideal for accurate differential pressure measurements in air conditioning and ventilation technology, for instance for pressure drop on filters, checking fans and extractors or for Pitot tube measurements.
Your advantages
- Integrated differential pressure sensor with an accuracy of 0.2 % of f.v.
- Calculation of the flow velocity and the volume flow via Pitot tube (optional)
- Multi-point and timed mean calculation
- 2 probe inputs for additional pressure and temperature probes
TESTO Differential Pressure Measuring Instrument (0.2 % of f.v.) | 521-1 Description
The testo 521-1 differential pressure measuring instrument is targeted at precise differential pressure measurements in air conditioning and ventilation technology. It is excellent for use in measuring the pressure drop on filters and in checking fans and extractors. The measuring instrument is also suitable for Pitot tube measurements in ventilation ducts or in process air (in the 5 to 100 m/s range).
The differential pressure measuring instrument has an integrated temperature-compensated differential pressure sensor which measures with an accuracy of 0.2 % of f.v. In addition, you can attach up to 2 further optional probes to the measuring instrument. This means you can flexibly adapt the differential pressure measuring instrument to your application. You have the choice of the following probes:
- Differential pressure probes
- Absolute pressure probes
- Relative pressure probes
- Temperature probes (e.g. surface probes or immersion and penetration probes)
The practical features of the testo 521-1 differential pressure measuring instrument
The integrated differential pressure sensor enables the testo 521-1 measuring instrument to calculate flow velocity and volume flow using a Pitot tube (which can be ordered separately). The differential pressure measuring instrument also offers timed and multi-point mean calculation.
Furthermore, long-term monitoring is possible: in doing this, measurement data can be saved individually or as a series of measurements. The measurement rate and the number of values to be saved can be selected by the user. Dynamic measurements can be saved in the measuring instrument in the measuring cycle of 0.04 seconds.
The optional ComSoft software enables you to carry out online measurements via your PC, save the measurement data so that it is linked to the measuring location and analyze it on the PC. You can use the optional testo fast printer to print measurement data out directly at the measuring location.
You can choose between the following units for pressure measurement: mbar, hPa, bar, Pa, kPa, inH2O, mmH2O, torr and psi. The mean value, the last measured value and the min./max. values can be displayed simply by pressing a key.
Delivery Scope
testo 521-1 differential pressure measuring instrument, including calibration protocol and batteries.
TESTO Differential Pressure Measuring Instrument (0.2 % of f.v.) | 521-1 Technical Data
Temperature - NTC
Temperature - TC Type K (NiCr-Ni)
Differential pressure (internal sensor) - Piezoresistive
Differential pressure (external probe) - Piezoresistive
Differential pressure (external probe) - Ceramic
General technical data
TESTO Differential Pressure Measuring Instrument (0.2 % of f.v.) | 521-1 Images
Temperature - NTC
| Measuring range |
-40 to +150 °C
|
|---|---|
| Accuracy |
±0.2 °C (-10 to +50 °C)*
±0.4 °C (Remaining Range)*
|
| Resolution |
0.1 °C
|
| *Accuracy information applies only to instrument without probes connected | |
Temperature - TC Type K (NiCr-Ni)
| Measuring range |
-200 to +1370 °C
|
|---|---|
| Accuracy |
±1 °C Remaining Range*
±0.4 °C (-100 to +200 °C)*
|
| Resolution |
0.1 °C
|
| *Accuracy information applies only to instrument without probes connected | |
Differential pressure (internal sensor) - Piezoresistive
| Measuring range |
0 to 100 hPa
|
|---|---|
| Accuracy |
±0.2 % of fsv
|
| Resolution |
0.01 hPa
|
| Static pressure |
1000 hPa (abs)
|
| Overload |
300 hPa
|
| Zeroing |
to 2.5 hPa
|
Differential pressure (external probe) - Piezoresistive
| Measuring range |
0 to 2000 hPa
|
|---|---|
| Accuracy |
±0.1 % of mv*
|
| Resolution |
0.1 hPa (0638 1847 / 0638 1647)
0.1 Pa (0638 1347)
0.01 hPa (0638 1547)
0.001 hPa (0638 1447)
|
| *Accuracy information applies only to instrument without probes connected | |
Differential pressure (external probe) - Ceramic
| Measuring range |
-1 to 400 bar
|
|---|---|
| Accuracy |
±0.2 % of fsv*
|
| Resolution |
0.01 bar
|
| *Accuracy information applies only to instrument without probes connected | |
| Dimensions |
219 x 68 x 50 mm
|
|---|---|
| Operating temperature |
0 to +50 °C
|
| Product-/housing material |
ABS
|
| Channels |
2 external; 1 internal
|
| Measuring rate |
0.04 s
|
| Connection |
Hose: inner Ø 4 mm outer Ø 6 mm
|
| Battery type |
9 V (6LR61)
|
| Battery life |
Continuous operation w/ internal pressure sensor: 30 h; With rech. battery: 10 h; With carbon battery: 18 h
|
| Display type |
LCD (Liquid Crystal Display)
|
| Display function |
7 segment display and point matrix
|
| Display update |
2x per second, in fast measurement 4x per second
|
| Power supply |
Battery/Rechargeable battery,Mains unit 12 V
|
| Interface |
RS232
|
| Memory |
100 kB; 25,000 measuring values
|
| Storage temperature |
-20 to +70 °C
|
| Weight |
300 g
|
