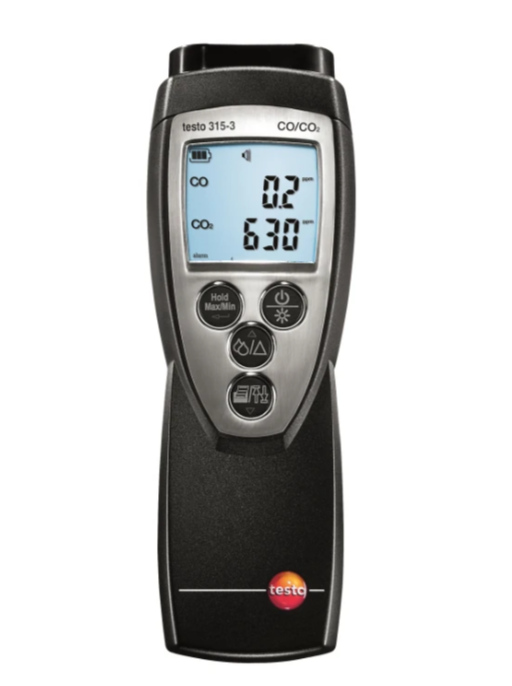

TESTO with Bluetooth - CO and CO2 Meter for Ambient Measurements | 315-3
For quick, precise measurement of carbon monoxide in ambient air – in accordance with DIN EN 50543: The testo 315-4 CO measuring instrument is easy to operate, has a robust design and is of durable quality.
Your advantages
For quick, precise measurement of carbon monoxide in ambient air – in accordance with DIN EN 50543: The testo 315-4 CO measuring instrument is easy to operate, has a robust design and is of durable quality.
Your advantages
- High-precision electrochemical CO sensor, shock resistant infrared CO2 sensor
- Visual and audible alarm when thresholds are breached – adjustable thresholds
- Rugged design
- TÜV certified according to DIN EN 50543 standard
TESTO with Bluetooth - CO and CO2 Meter for Ambient Measurements | 315-3 Description

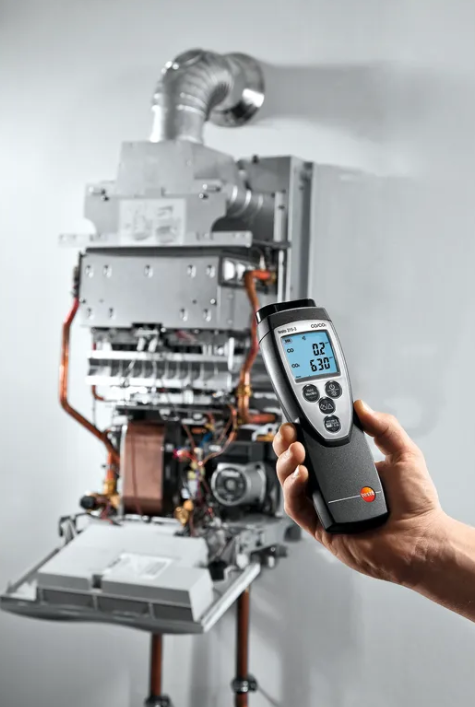

Cutting-edge technology, easy-to-use, rugged design. These are just a few of the features which make the testo 315-3 stand out head and shoulders above the rest. The CO and CO2 meter is designed to measure carbon monoxide and carbon dioxide parallel in heating systems and ventilation ducts. The readings are presented on an easy-to-read display. A visual and audible alarm are activated when CO/CO2 thresholds are breached. The thresholds can be adjusted to suit your range of applications.
The intelligently designed meter has an energy-saving lithium polymer rechargeable battery and powers off automatically when not in use.
And here’s yet another practical feature: the CO and CO2 meter for ambient measurements can also be used in combination with the testo 330-2 flue gas analyzer. The CO/CO2 readings can be transferred directly to the analyzer via Bluetooth.
Tune up your CO and CO2 meter with a range of accessories for even more possibilities
Your testo 315-3 is already well equipped to meet all the demands you would put on a CO and CO2 meter. The following accessories are designed to allow you to customize your meter to suit your own individual requirements:
- TopSafe protective casing: water and dirt repellent; provides your testo 315-3 CO and CO2 meter with protection in wet and dirty conditions
- Testo turbo printer: The testo turbo printer enables you to print out on site and provide your customers with the necessary documentation. The results are transferred to the printer via Bluetooth
- Temperature/humidity module: allows you to carry out quick and reliable temperature and humidity measurements
Delivery Scope
CO and CO2 meter with Bluetooth for ambient air measurements, USB power adaptor, cable.
TESTO with Bluetooth - CO and CO2 Meter for Ambient Measurements | 315-3 Data
Attachable humidity module - Capacitive
Ambient CO₂
Ambient CO
Temperature
General technical data
TESTO with Bluetooth - CO and CO2 Meter for Ambient Measurements | 315-3 Image
Attachable humidity module - Capacitive
| Measuring range |
+5 to +95 %RH
|
|---|---|
| Accuracy |
±2.5 %RH (5 to +95 %RH)
|
| Resolution |
0.1 %RH
|
Ambient CO₂
| Measuring range |
0 to 10000 ppm
|
|---|---|
| Accuracy |
±500 ppm (6000 to 10000 ppm)
±8 % of mv (4000 to 6000 ppm)
±300 ppm (0 to 4000 ppm)
|
| Resolution |
10 ppm
|
Ambient CO
| Measuring range |
0 to 100 ppm
|
|---|---|
| Accuracy |
±5 ppm (>20 ppm)
±3 ppm (0 to 20 ppm)
|
| Resolution |
0.5 ppm
|
Temperature
| Measuring range |
-10 to +60 °C
|
|---|---|
| Accuracy |
±0.5 °C (±1 Digit)
|
| Resolution |
0.1 °C
|
General technical data
| Operating humidity |
0 to 95 %RH
|
|---|---|
| Weight |
200 g
|
| Dimensions |
190 x 65 x 40 mm
|
| Operating temperature |
0 to +40 °C
|
| Protection class |
IP40 acc. to EN 60529
|
| Standards |
According to EN 50543
|
| EU-/EG-guidelines |
2004/108/EG
|
| Interface |
IRDA / optional Bluetooth
|
| Storage battery type |
Lithium polymer rechargeable battery
|
| Battery life |
10 h measurement time (at +20 °C/+68 °F) / Mains operation possible
|
| Battery charging option |
In instrument via mains unit
|
| Storage temperature |
-20 to +60 °C
|
