THT500
THT500 | Tablet Hardness Tester
Eco-friendly & Sustainably
As a manufacturer, we recognize the importance of participating in the global effort to reduce carbon footprint. The THT500 is designed to minimize the number of parts and incorporate reusable materials.
A tablet breaking force tester featuring advanced and precise measuring technologies.
Rockwell Tester – 3106 Description

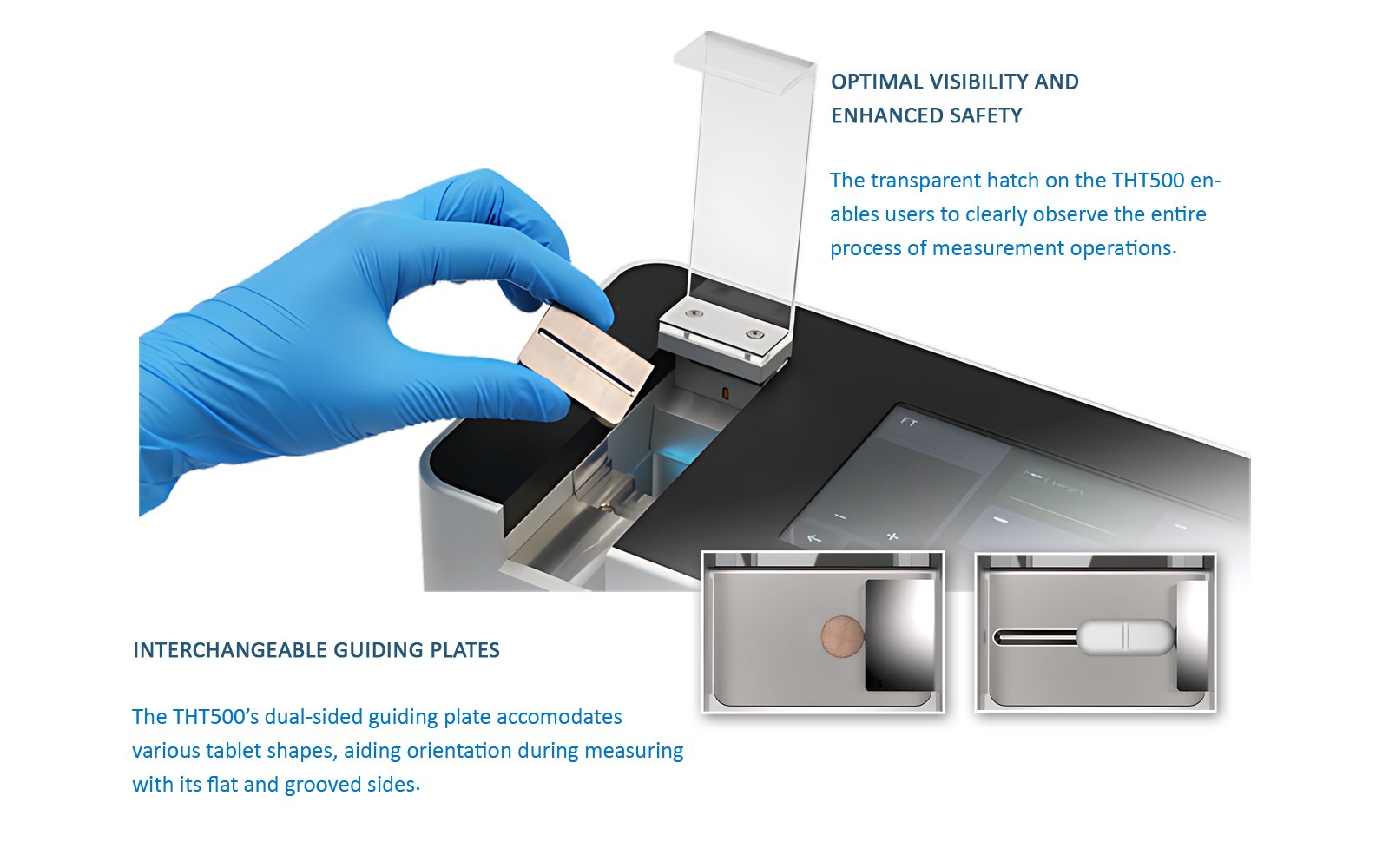

The THT500 is a versatile tablet-breaking force tester designed to analyze various physical characteristics of tablets, which are an oral dosage form. The breaking force test, also known as the hardness test, offers a load range of up to 500N and allows users to set desirable test speeds (mm/sec) and force increments (N/sec). In addition to hardness measurement, the THT500 is capable of providing other measurements such as length, width, thickness, and weight (using an external scale).
Eco-friendly & Sustainably
As a manufacturer, we recognize the importance of participating in the global effort to reduce carbon footprint. The THT500 is designed to minimize the number of parts and incorporate reusable materials.
Compact Design
The THT500 is constructed with 26 mechanical parts, emphasizing portability and lightweight design.
Rockwell Tester – 3106 Technical Data
Ergonomic and Portable
The built-in recessed handle provides an ergonomic means of transportation, allowing users to easily carry the device from one place to another.
Sustainable Materials
95% of THT500 is made from recycled aluminum, greatly enhancing its sustainability.
Rockwell Tester – 3106 Technical Data
| Diameter / Length / Width | |
|---|---|
| Measuring range | 1-36 mm |
| Resolution | 0.01 mm |
| Units of measurement | mm / inch |
| Thickness | |
| Measuring range | 1-36 mm |
| Resolution | 0.01 mm |
| Units of measurement | mm / inch |
| Hardness | |
| Measuring range | 3 - 500 N |
| Accuracy | +/- 1N |
| Units of measurement | Newton (N), Kilogram-force (kgf), Pound of force (lbf) |
| Measuring principle | |
| Constant force | 10- 200 N/ sec (programmable)(Testing) |
| Constant speed | 0.1 - 3 mm/sec (programmable) |
| Interfaces | |
| 2 x USB 2.0 | |
| Power supply | |
| 100 - 240 V, 50-60 Hz, 90 W | |
