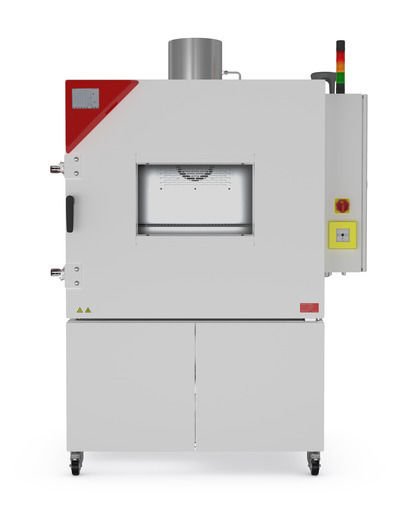

Binder Battery Test Chambers with Dafety Equipment for Rapid Temperature Changes | LIT MK 240
- Safety thanks to extensive protective measures
- Homogeneous climate conditions thanks to APT.line™ preheating chamber
- Extensive programming and data collection
- Excellent overview of the test object thanks to large heated viewing window
Binder Battery Test Chambers with Dafety Equipment for Rapid Temperature Changes | LIT MK 240
Battery test chambers from BINDER are ideal for aging, performance, and stress testing in quality assurance and battery production. To ensure maximum safety, all the chambers in the LIT MK series are fitted with detection and fire suppression equipment as standard. TÜV SÜD AG has recently confirmed that the LIT MK 240 and LIT MK 720 battery test chambers are suitable for EUCAR LEVEL 6.
Binder Battery Test Chambers with Dafety Equipment for Rapid Temperature Changes | LIT MK 240 General Information
- Temperature range: -40°C above ambient temperature to +110 °C
- Class 2 independent temperature safety device when temperature is set to +120°C
- Reversible stainless steel pressure relief flap installed in the middle on top of the unit
- Enhanced door-locking mechanism with reinforced brackets
- Monitoring of CO, H2, O2, and temperature in testing area atmosphere
- Inertization equipment
- CO2 fire suppression
- APT.line™ preheating chamber technology
- Programmable condensation protection for samples
- Heated viewing window with LED interior lighting
- BINDER Multi Management Software APT-COM™ basic edition
- Intuitive touchscreen controller with time-segment and real-time programming
- Internal data logger, measured values can be read out in open format via USB
- Access port with silicone plug, 50 mm, left
- Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
- Computer interface: Ethernet
- 1 stainless steel rack, can be freely positioned
- CFC-free refrigerant R-452A
- Cooling with compressor cooling unit
- TUV SUD confirms that the LIT MK 240 and LIT MK 720 chambers are suitable for EUCAR level 6
Binder Battery Test Chambers with Dafety Equipment for Rapid Temperature Changes | LIT MK 240 Technical Data
Data
| Designation |
LITMK240-400V |
LITMK240-480V-C |
| Article Number | 9020-0402 | 9020-0404 |
| Option model |
Standard |
with voltage and frequency converter |
| Designation |
LITMK240-400V |
LITMK240-480V-C |
| Temperature range | -40...110 °C | -40...110 °C |
| Temperature uniformity dependent on set value | 0.1...0.5 ± K | 0.1...0.5 ± K |
| Temperature fluctuation dependent on set value | 0.1...0.5 ± K | 0.1...0.5 ± K |
| Average heating-up rate according to IEC 60068-3-5 | 5.0 K/min | 5.0 K/min |
| Cooling down time from 110°C to -40°C | 160 min | 160 min |
| Average cooling down time according to IEC 60068-3-5 | 3.5 K/min | 3.5 K/min |
Electrical Data
| Designation |
LITMK240-400V |
LITMK240-480V-C |
| Rated Voltage | 400 V | 480 V |
| Power frequency | 50 Hz | 60 Hz |
| Nominal power | 5,6 kW | 5,6 kW |
| Unit fuse | 16,0 A | 16,0 A |
| Phase (Nominal voltage) | 3~ | 3~ |
| Designation |
LITMK240-400V |
LITMK240-480V-C |
| Interior volume | 228 L | 228 L |
| Net weight of the unit (empty) | 375 kg | 375 kg |
| Load per rack | 30 kg | 30 kg |
| Permitted load | 70 kg | 70 kg |
| Wall clearance back | 300 mm | 300 mm |
| Wall clearance sidewise | 200 mm | 200 mm |
Housing dimensions not incl. fittings and connections
| Designation |
LITMK240-400V |
LITMK240-480V-C |
| Width net | 1,335 mm | 1,335 mm |
| Height net | 1,929 mm | 1,929 mm |
| Depth net | 925 mm | 925 mm |
| Designation |
LITMK240-400V |
LITMK240-480V-C |
| Interior width | 735 mm | 735 mm |
| Interior height | 700 mm | 700 mm |
| Interior depth | 443 mm | 443 mm |
| Viewing window width | 508 mm | 508 mm |
| Viewing window height | 300 mm | 300 mm |
| Unit doors | 1 | 1 |
| Designation |
LITMK240-400V |
LITMK240-480V-C |
| Sound-pressure level | 62 dB(A) | 67 dB(A) |
| Energy consumption at 20°C | 1,300 Wh/h | 1,300 Wh/h |
| Designation |
LITMK240-400V |
LITMK240-480V-C |
| Number of shelves (std./max.) | 1/6 | 1/6 |
