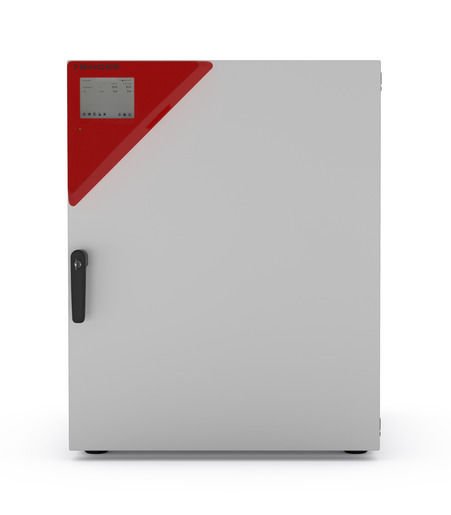

Binder CO2 Incubators With hot Air Sterilization and Humidity Regulation | CBF 170

The BINDER CBF is the high-end CO₂ incubator with humidity control that is suitable for all sensitive incubation applications in GMP environments. It ensures consistent results including in cell-based assays with multiwell plates. This BINDER incubator is even suitable for complex cultivation experiments or individual environments with hypoxic conditions thanks to its comprehensive assortment of options and accessories.

Binder CO2 Incubators With hot Air Sterilization and Humidity Regulation | CBF 170 General Information

- Contamination-safe humidification system without water pan
- Tried-and-tested anti-contamination concept with 180 °C hot air sterilization
- Hot-air sterilizable CO₂ sensor with single-beam infrared technology
- Seamless inner chamber made of stainless steel with flanges as shelf support system
- Fanless interior with Venturi CO₂ gas mixing nozzle
- Intuitive touchscreen controller
- Internal data logger, measured values can be read out in open format via USB
- Troubleshooting system with visual and acoustic alarms
- Interfaces: Ethernet, USB, zero-voltage alarm contact
- Fail-safe CO₂ system for protecting the pH of cell cultures

Data

Designation	CBF170-230V	CBF170-230V-O	CBF170UL-120V	CBF170UL-120V-O
Article Number	9640-0017	9640-0018	9640-0019	9640-0020
Option model	Standard	with O2 control 0.2–20%	Standard	with O2 control 0.2–20%

Performance Data Temperature

Designation	CBF170-230V	CBF170-230V-O	CBF170UL-120V	CBF170UL-120V-O
Temperature range	+6 °C above ambient temperature to 60 °C	+6 °C above ambient temperature to 60 °C	+6 °C above ambient temperature to 60 °C	+6 °C above ambient temperature to 60 °C
Temperature uniformity at 37°C	0.4 ± K	0.4 ± K	0.4 ± K	0.4 ± K
Temperature fluctuation at 37°C	0.1 ± K	0.1 ± K	0.1 ± K	0.1 ± K
Recovery time after door was opened for 30 s at 37°C	6 min	6 min	6 min	6 min

Performance Data Climate

Designation	CBF170-230V	CBF170-230V-O	CBF170UL-120V	CBF170UL-120V-O
Humidity range	50 ...95 % RH	50 ...95 % RH	50 ...95 % RH	50 ...95 % RH

Gas Data

Designation	CBF170-230V	CBF170-230V-O	CBF170UL-120V	CBF170UL-120V-O
CO₂ range	0...20 Vol.-% CO2	0...20 Vol.-% CO2	0...20 Vol.-% CO2	0...20 Vol.-% CO2
CO₂ measuring technology	IR	IR	IR	IR
CO₂ recovery time after door was opened for 30 s at 5 vol. % CO₂	5 min	5 min	5 min	5 min
Standard O₂ control range		0.2...20 Vol.-% O2		0.2...20 Vol.-% O2
O₂ control ranges with option: O₂ range		10...90 Vol.-% O2		10...90 Vol.-% O2
O₂ recovery time after door was opened for 30 s at 5 vol. % O₂		12 min		12 min

Electrical Data

Designation	CBF170-230V	CBF170-230V-O	CBF170UL-120V	CBF170UL-120V-O
Rated Voltage	200...230 V	200...230 V	100...120 V	100...120 V
Power frequency	50/60 Hz	50/60 Hz	50/60 Hz	50/60 Hz
Nominal power	1,4 kW	1,4 kW	1,4 kW	1,4 kW
Unit fuse	10,0 A	10,0 A	16,0 A	16,0 A
Phase (Nominal voltage)	1~	1~	1~	1~

Environment-specific data

Designation	CBF170-230V	CBF170-230V-O	CBF170UL-120V	CBF170UL-120V-O
Sound-pressure level	41 dB(A)	41 dB(A)	41 dB(A)	41 dB(A)
Energy consumption at 37°C	55 Wh/h	55 Wh/h	55 Wh/h	55 Wh/h

Fixtures

Designation	CBF170-230V	CBF170-230V-O	CBF170UL-120V	CBF170UL-120V-O
Number of shelves (std./max.)	3/6	3/6	3/6	3/6
