- Safe: Unique condensate and dry-out protection for all operating conditions
- Reliable: Fail-safe operation due to intelligent thermoelectric tempering
- Smart: Temperatures programmable for intermitted incubation and refrigeration
- Economical: Minimum energy consumption thanks to optimized thermoelectric cooling

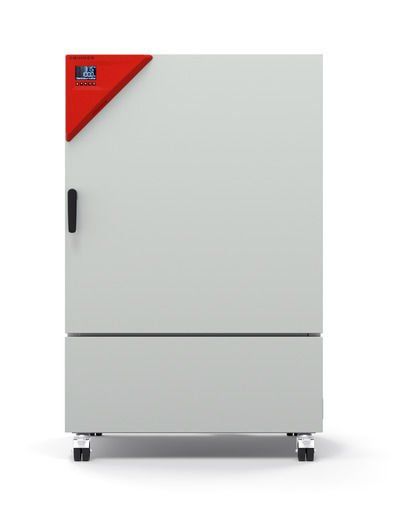

Binder Cooling Incubators with Environmentally Friendly Thermoelectric Cooling | KB ECO 400
Thanks to thermoelectric cooling technology with patented heat dissipation, the new KB ECO cooling incubator is one of the most energy-efficient cooling incubator on the market. The thermoelectric cooling technology means the KB ECO series is also very quiet during operation.
- Temperature range: 0°C through +70°C (max. 28°C below the ambient temperature)
- APT.line™ preheating chamber technology
- Electric temperature control thanks to thermoelectric cooling module with innovative heat dissipation
- Inner door made of tempered safety glass
- Inner chamber made completely of stainless steel
- 2 rack, stainless steel
- Adjustable condensate protection
- Access port with silicone plug Ø 30 mm
- LCD to display temperature along with additional information and alarms
- Internal data logger, measured values can be read out in open format via USB
- Unit self-test for comprehensive status analysis
- Computer interface: Ethernet
Binder Cooling Incubators with Environmentally Friendly Thermoelectric Cooling | KB ECO 400 Specifications
Data
| Designation |
KBECO400-230V |
KBECO400-120V |
| Article Number | 9020-0465 | 9020-0466 |
| Option model |
Standard |
Standard |
| Designation |
KBECO400-230V |
KBECO400-120V |
| Temperature range | (max. 28 °C under ambient temperature) 0...70 °C | (max. 28 °C under ambient temperature) 0...70 °C |
| Temperature uniformity at 37°C | 0.1 ± K | 0.1 ± K |
| Temperature fluctuation at 37°C | 0.1 ± K | 0.1 ± K |
| Recovery time after door was opened for 30 s at 37°C | 6 min | 6 min |
Electrical Data
| Designation |
KBECO400-230V |
KBECO400-120V |
| Rated Voltage | 200...230 V | 100...120 V |
| Power frequency | 50/60 Hz | 50/60 Hz |
| Nominal power | 1,2 kW | 1,2 kW |
| Unit fuse | 16,0 A | 16,0 A |
| Phase (Nominal voltage) | 1~ | 1~ |
Measures
| Designation |
KBECO400-230V |
KBECO400-120V |
| Interior volume | 400 L | 400 L |
| Net weight of the unit (empty) | 196 kg | 196 kg |
| Load per rack | 30 kg | 30 kg |
| Permitted load | 120 kg | 120 kg |
| Wall clearance back | 100 mm | 100 mm |
| Wall clearance sidewise | 100 mm | 100 mm |
Housing dimensions not incl. fittings and connections
| Designation |
KBECO400-230V |
KBECO400-120V |
| Width net | 925 mm | 925 mm |
| Height net | 1,946 mm | 1,946 mm |
| Depth net | 796 mm | 796 mm |
Internal Dimensions
| Designation |
KBECO400-230V |
KBECO400-120V |
| Interior width | 650 mm | 650 mm |
| Interior height | 1,268 mm | 1,268 mm |
| Interior depth | 485 mm | 485 mm |
| Inner doors | 1 | 1 |
| Unit doors | 1 | 1 |
Environment-specific data
| Designation |
KBECO240-230V |
KBECO240UL-120V |
| Sound-pressure level | 43 dB(A) | 43 dB(A) |
| Energy consumption at 37°C | 70 Wh/h | 70 Wh/h |
Fixtures
| Designation |
KBECO400-230V |
KBECO400-120V |
| Number of shelves (std./max.) | 2/15 | 2/15 |
