Binder Standard Incubators with Mechanical Adjustment | B 28
BINDER

Binder Standard Incubators with Mechanical Adjustment | B 28

Category
Incubation and Plant Growth , Standard Incubators
Stock Code
B 28
Benefits
  • Safe and reproducible results even under high batch throughputs in long-term operation
  • Inner glass door for a stable atmosphere
Product information
Product information
binder, binder sales, binder azerbaycan
Binder Standard Incubators with Mechanical Adjustment | B 28

   With the B series incubator, you get a reliable and powerful unit in a solid configuration at a very attractive price.

Binder Standard Incubators with Mechanical Adjustment | B 28

Binder Standard Incubators with Mechanical Adjustment | B 28 General Information

- Temperature range: +30 °C to +70 °C
- Hydro-mechanical thermostat
- Inner door made of tempered safety glass
- 2 chrome-plated racks

Binder Standard Incubators with Mechanical Adjustment | B 28 Specifications

Data

Designation

B028-230V

B028-120V
Article Number 9010-0002 9010-0067
Option model

Standard

Standard
Performance Data Temperature
Designation B028-230V B028-120V
Temperature range 30...70 °C 30...70 °C
Temperature uniformity at 37°C 1.5 ± K 1.5 ± K
Temperature fluctuation at 37°C 1 ± K 1 ± K
Recovery time after door was opened for 30 s at 37°C 95 min 95 min

Electrical Data

Designation

B028-230V

B028-120V
Rated Voltage 230 V 120 V
Power frequency 50/60 Hz 60 Hz
Nominal power 0,25 kW 0,25 kW
Unit fuse 6,3 A 6,3 A
Phase (Nominal voltage) 1~ 1~

Measures
Designation B028-230V B028-120V
Interior volume 28 L 28 L
Net weight of the unit (empty) 23 kg 23 kg
Load per rack 10 kg 10 kg
Permitted load    25 kg 25 kg
Wall clearance back 160 mm 160 mm
Wall clearance sidewise 100 mm 100 mm

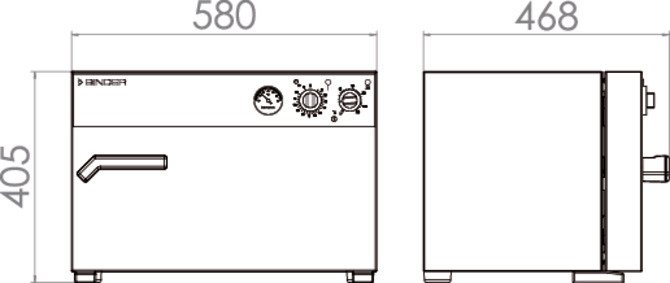

Housing dimensions not incl. fittings and connections

Designation

B028-230V

B028-120V
Width net 580 mm 580 mm
Height net 405 mm 405 mm
Depth net 425 mm 425 mm

Internal Dimensions
Designation

B028-230V

B028-120V
Interior width 400 mm 400 mm
Interior height 280 mm 280 mm
Interior depth 250 mm 250 mm
Inner doors 1 1
Unit doors 1 1

Fixtures
Designation

B028-230V

B028-120V
Number of shelves (std./max.) 2/4 2/4


Binder Standard Incubators with Mechanical Adjustment | B 28 Images

Binder Standard Incubators with Mechanical Adjustment | B 28Binder Standard Incubators with Mechanical Adjustment | B 28Binder Standard Incubators with Mechanical Adjustment | B 28
