- Safe and reproducible incubation conditions even at high environmental conditions
- Hot air disinfection at 100°C
- Energy efficient, environmentally friendly and secure

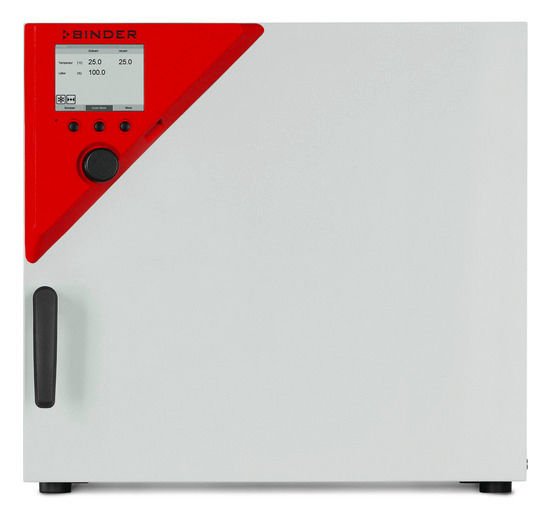

Binder Cooling Incubators with Peltier Technology | KT 53
The KT series combines outstanding performance with impressive energy efficiency and environmental friendliness. The cooled incubators of the KT series are state-of-the-art in application and protect the samples.
- Temperature range: +4 °C to +100 °C
- APT.line™ preheating chamber technology
- Adjustable fan speed
- Electric cooling with Peltier module
- Door heating
- Controller with time-segment and real-time programming
- Display via LCD monitor
- Input via pushbutton/rotary knob
- Inner door made of tempered safety glass
- 2 stainless steel racks
- Stackable
- Class 3.1 independent temperature safety device (DIN 12880) with visual and audible temperature alarm
- Computer interface: Ethernet
- Data recording and USB interface
Binder Cooling Incubators with Peltier Technology | KT 53 Specifications
Data
| Designation |
KT053-230V |
KT053UL-120V |
| Article Number | 9020-0311 | 9020-0312 |
| Option model |
Standard |
Standard |
| Designation | KT053-230V | KT053UL-120V |
| Temperature range | 4...100 °C | 4...100 °C |
| Temperature uniformity at 37°C | 0.3 ± K | 0.3 ± K |
| Temperature fluctuation at 37°C | 0.1 ± K | 0.1 ± K |
| Max. heat compensation at 40°C | 100 W | 100 W |
| Recovery time after door was opened for 30 s at 37°C | 2 min | 2 min |
Electrical Data
| Designation |
KT053-230V |
KT053UL-120V |
| Rated Voltage | 200...240 V | 100...120 V |
| Power frequency | 50/60 Hz | 50/60 Hz |
| Nominal power | 0,4 kW | 0,4 kW |
| Unit fuse | 10,0 A | 10,0 A |
| Phase (Nominal voltage) | 1~ | 1~ |
Measures
| Designation | KT053-230V | KT053UL-120V |
| Interior volume | 53 L | 53 L |
| Net weight of the unit (empty) | 63 kg | 63 kg |
| Load per rack | 15 kg | 15 kg |
| Permitted load | 40 kg | 40 kg |
| Wall clearance back | 100 mm | 100 mm |
| Wall clearance sidewise | 240 mm | 240 mm |
Housing dimensions not incl. fittings and connections
| Designation |
KT053-230V |
KT053UL-120V |
| Width net | 660 mm | 660 mm |
| Height net | 635 mm | 635 mm |
| Depth net | 630 mm | 630 mm |
Internal Dimensions
| Designation |
KT053-230V |
KT053UL-120V |
| Interior width | 400 mm | 400 mm |
| Interior height | 400 mm | 400 mm |
| Interior depth | 334 mm | 334 mm |
| Inner doors | 1 | 1 |
| Unit doors | 1 | 1 |
Environment-specific data
| Designation |
KT053-230V |
KT053UL-120V |
| Sound-pressure level | 48 dB(A) | 48 dB(A) |
| Energy consumption at 37°C | 75 Wh/h | 75 Wh/h |
Fixtures
| Designation |
KT053-230V |
KT053UL-120V |
| Number of shelves (std./max.) | 2/5 | 2/5 |
