- Safe, reproducible incubation, even at high ambient temperatures
- Disinfection routine at +100 °C
- Up to 30% lower energy consumption compared to the previous model

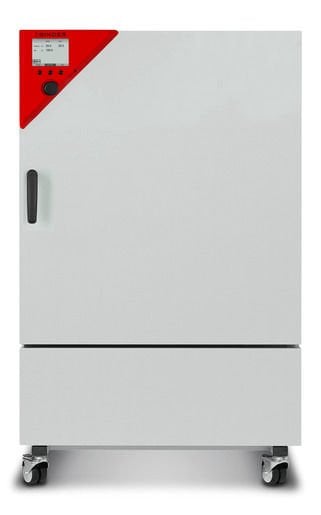

Binder Cooling Incubators with Powerful Compressor Cooling | KB 240
The powerful virtuoso in cooling incubators for microorganisms: the KB masters temperature ranges from -10 °C to 100 °C. The new KB series consumes up to 30% less energy compared to its predecessor. With its extensive programming options and homogenous incubation conditions even when fully loaded, this cooling incubator covers a wide range of applications.
- Temperature range: -10 °C to +100 °C
- APT.line™ preheating chamber technology
- Up to 30% lower energy consumption compared to the previous model
- Cooling with compressor cooling unit
- Door heating
- Adjustable fan speed
- Inner door made of tempered safety glass
- Controller with time-segment and real-time programming
- Inner door made of tempered safety glass
- 2 stainless steel racks
- 4 casters, two with locking brakes
- Access port with silicone plug, 30 mm, left
- Class 3.1 independent temperature safety device (DIN 12880) with visual and acoustic alarm
- Computer interface: Ethernet
Binder Cooling Incubators with Powerful Compressor Cooling | KB 240 Specifications
Data
| Designation |
KB240-230V |
KB240UL-120V |
| Article Number | 9020-0202 | 9020-0304 |
| Option model |
Standard |
Standard |
| Designation | KB240-230V | KB240UL-120V |
| Temperature range | -10...100 °C | -10...100 °C |
| Temperature uniformity at 37°C | 0.2 ± K | 0.2 ± K |
| Temperature fluctuation at 37°C | 0.1 ± K | 0.1 ± K |
| Max. heat compensation at 40°C | 300 W | 300 W |
| Recovery time after door was opened for 30 s at 37°C | 2 min | 2 min |
Electrical Data
| Designation |
KB240-230V |
KB240UL-120V |
| Rated Voltage | 200...230 V | 100...120 V |
| Power frequency | 50/60 Hz | 60 Hz |
| Nominal power | 1,2 kW | 1,2 kW |
| Unit fuse | 16,0 A | 16,0 A |
| Phase (Nominal voltage) | 1~ | 1~ |
Measures
| Designation | KB240-230V | KB240UL-120V |
| Interior volume | 247 L | 247 L |
| Net weight of the unit (empty) | 171 kg | 171 kg |
| Load per rack | 30 kg | 30 kg |
| Permitted load | 100 kg | 100 kg |
| Wall clearance back | 100 mm | 100 mm |
| Wall clearance sidewise | 100 mm | 100 mm |
Housing dimensions not incl. fittings and connections
| Designation |
KB240-230V |
KB240UL-120V |
| Width net | 925 mm | 925 mm |
| Height net | 1,465 mm | 1,465 mm |
| Depth net | 800 mm | 800 mm |
Internal Dimensions
| Designation |
KB240-230V |
KB240UL-120V |
| Interior width | 650 mm | 650 mm |
| Interior height | 785 mm | 785 mm |
| Interior depth | 485 mm | 485 mm |
| Inner doors | 1 | 1 |
| Unit doors | 1 | 1 |
Environment-specific data
| Designation |
KB240-230V |
KB240UL-120V |
| Sound-pressure level | 53 dB(A) | 53 dB(A) |
| Energy consumption at 37°C | 270 Wh/h | 270 Wh/h |
Fixtures
| Designation |
KB240-230V |
KB240UL-120V |
| Number of shelves (std./max.) | 2/9 | 2/9 |
