Binder Drying and Heating Chambers with Forced Convection and Advanced Program Functions | M 56
- Uniform drying conditions thanks to APT.line™ technology
- Identical test conditions throughout the chamber interior independent of sample size and quantity
- Outstanding thermal insulation saves operation costs
- Advanced programming options

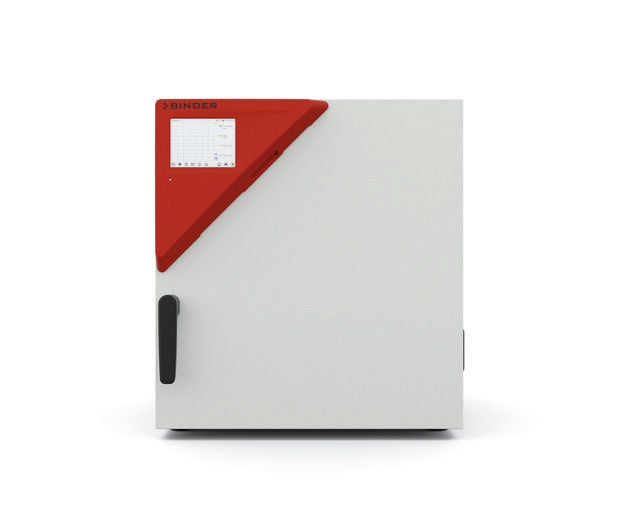

Binder Drying and Heating Chambers | M 56
With a maximum of +300 °C and various programming options the M series material test chambers are ideal for material and aging tests. With a high air flow, the powerful fans ensure rapid heating.
Binder Drying and Heating Chambers | M 56 General Information
- Temperature range: +23°C above ambient temperature to +300 °C
- High temperature accuracy thanks to APT.line™ technology with increased heating output
- Reinforced fan with adjustable speed
- Electromechanical control of the exhaust air flap
- Intuitive touchscreen controller with time-segment and real-time programming
- 2 chrome-plated racks
- Class 2 independent adjustable temperature safety device (DIN 12880) and class 3.1 independent temperature safety device (DIN 12880) with visual/acoustic alarm available for selection on the controller
- Failsafe function – backup sensor Pt 100
- Computer interface: Ethernet
- Internal data logger, measured values can be read out in open format via USB
Binder Drying and Heating Chambers | M 56 Technical Data
Data
| Designation |
M056-230V |
| Article Number | 9010-0371 |
| Option model |
Standard |
| Designation |
M056-230V |
| Temperature range | +23 °C above ambient temperature to 300 °C |
| Temperature uniformity at 150°C | 1.4 ± K |
| Temperature fluctuation at 150°C | 0.2 ± K |
| Heating up time to 150°C | 9 min |
| Recovery time after door was opened for 30 s at 150°C | 4 min |
Air Change Data
| Designation |
M056-230V |
| Air change rate at 100°C | 175 x/h |
Electrical Data
| Designation |
M056-230V |
| Rated Voltage | 230 V |
| Power frequency | 50/60 Hz |
| Nominal power | 2 kW |
| Unit fuse | 10,0 A |
| Phase (Nominal voltage) | 1~ |
| Designation |
M056-230V |
| Interior volume | 59 L |
| Net weight of the unit (empty) | 43 kg |
| Load per rack | 30 kg |
| Permitted load | 70 kg |
| Wall clearance back | 160 mm |
| Wall clearance sidewise | 100 mm |
Housing dimensions not incl. fittings and connections
| Designation |
M056-230V |
| Width net | 560 mm |
| Height net | 622 mm |
| Depth net | 596 mm |
| Designation |
M056-230V |
| Interior width | 400 mm |
| Interior height | 440 mm |
| Interior depth | 335 mm |
| Unit doors | 1 |
| Designation |
M056-230V |
| Sound-pressure level | 46 dB(A) |
| Energy consumption at 100°C | 210 Wh/h |
| Energy consumption at 150°C | 330 Wh/h |
| Designation |
M056-230V |
| Number of shelves (std./max.) | 2/4 |
