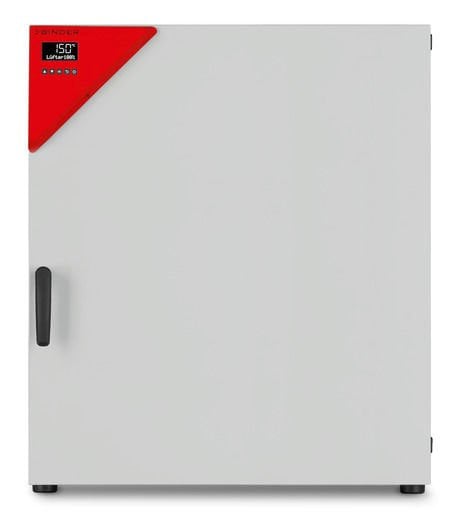

Binder Drying and Heating Chambers with Forced Convection and Enhanced Timer Functions | FED 260
- Best energy efficiency on the market
- Excellent temporal and spatial temperature accuracy
- USB connection for recording data
- Temperature range up to 300 °C
Binder Drying and Heating Chambers with Forced Convection and Enhanced Timer Functions | FED 260
BINDER heating chambers of the FED Avantgarde.Line series provide almost unlimited capacity and are particularly adaptable. With advanced timing functions and a controllable fan, temperature and convection conditions are easily controlled.
Binder Drying and Heating Chambers with Forced Convection and Enhanced Timer Functions | FED 260 General Information
- Temperature range: +10°C above ambient temperature to +300 °C
- Up to 30% lower energy consumption compared to conventional units on the market
- High temperature accuracy thanks to APT.line™ technology
- Adjustable fan speed
- Controller with LCD display and enhanced time functions
- Electromechanical control of the exhaust air flap
- 2 chrome-plated racks
- Stackable
- Class 2 integrated independent adjustable temperature safety device (DIN 12880) with visual alarm
- Ergonomic handle design
- Ethernet interface
- USB port for recording data
Data
| Designation |
FED260-230V |
FED260UL-240V |
| Article Number | 9010-0299 | 9010-0300 |
| Option model |
Standard |
Standard |
| Designation |
FED260-230V |
FED260UL-240V |
| Temperature range | +10 °C above ambient temperature to 300 °C | +10 °C above ambient temperature to 300 °C |
| Temperature uniformity at 150°C | 1.6 ± K | 1.6 ± K |
| Temperature fluctuation at 150°C | 0.4 ± K | 0.4 ± K |
| Heating up time to 150°C | 19 min | 19 min |
| Recovery time after door was opened for 30 s at 150°C | 5 min | 5 min |
Air Change Data
| Designation |
FED260-230V |
FED260UL-240V |
| Air change rate at 100°C | 9 x/h | 9 x/h |
Electrical Data
| Designation |
FED260-230V |
FED260UL-240V |
| Rated Voltage | 230 V | 240 V |
| Power frequency | 50/60 Hz | 60 Hz |
| Nominal power | 2,3 kW | 2,5 kW |
| Unit fuse | 12,5 A | 16,0 A |
| Phase (Nominal voltage) | 1~ | 1~ |
| Designation |
FED260-230V |
FED260UL-240V |
| Interior volume | 259 L | 259 L |
| Net weight of the unit (empty) | 85 kg | 85 kg |
| Load per rack | 40 kg | 40 kg |
| Permitted load | 270 kg | 270 kg |
| Wall clearance back | 160 mm | 160 mm |
| Wall clearance sidewise | 100 mm | 100 mm |
Housing dimensions not incl. fittings and connections
| Designation |
FED260-230V |
FED260UL-240V |
| Width net | 810 mm | 810 mm |
| Height net | 940 mm | 940 mm |
| Depth net | 760 mm | 760 mm |
| Designation |
FED260-230V |
FED260UL-240V |
| Interior width | 650 mm | 650 mm |
| Interior height | 780 mm | 780 mm |
| Interior depth | 515 mm | 515 mm |
| Unit doors | 1 | 1 |
| Designation |
FED260-230V |
FED260UL-240V |
| Sound-pressure level | 43 dB(A) | 43 dB(A) |
| Energy consumption at 100°C | 245 Wh/h | 245 Wh/h |
| Energy consumption at 150°C | 410 Wh/h | 410 Wh/h |
| Designation |
FED260-230V |
FED260UL-240V |
| Number of shelves (std./max.) | 2/8 | 2/8 |
