Binder Drying and Heating Chambers with Forced Convection and Enhanced Timer Functions | FED 400
Category
Stock Code
FED 400
Benefits
- Uniform drying conditions thanks to APT.line™ technology
- Identical test conditions throughout the chamber interior independent of sample size and quantity
- Outstanding thermal insulation saves operation costs
Binder Drying and Heating Chambers with Forced Convection and Enhanced Timer Functions | FED 400
BINDER heating chambers of the FED Avantgarde.Line series provide almost unlimited capacity and are particularly adaptable. With advanced timing functions and a controllable fan, temperature and convection conditions are easily controlled.
Binder Drying and Heating Chambers with Forced Convection and Enhanced Timer Functions | FED 400 General Information
- Temperature range: +5°C above ambient temperature to +300 °C
- APT.line™ preheating chamber technology
- High temperature accuracy thanks to APT.line™ technology
- Adjustable fan speed
- Adjustable exhaust air flap
- Controller with expanded timer functions
- 2 chrome-plated racks
- Class 2 integrated independent adjustable temperature safety device (DIN 12880) with visual alarm
- Computer interface: RS 422
Data
| Designation | FED400-400V | FED400UL-208V |
| Article Number | 9010-0216 | 9010-0217 |
| Option model |
Standard |
Standard |
| Designation | FED400-400V | FED400UL-208V |
| Temperature range | +5 °C above ambient temperature to 300 °C | +5 °C above ambient temperature to 300 °C |
| Temperature uniformity at 150°C | 3.8 ± K | 3.8 ± K |
| Temperature fluctuation at 150°C | 0.7 ± K | 0.7 ± K |
| Heating up time to 150°C | 29 min | 29 min |
| Recovery time after door was opened for 30 s at 150°C | 6 min | 6 min |
Air Change Data
| Designation | FED400-400V | FED400UL-208V |
| Air change rate at 150°C | 18 x/h | 18 x/h |
Electrical Data
| Designation | FED400-400V | FED400UL-208V |
| Rated Voltage | 400 V | 208 V |
| Power frequency | 50/60 Hz | 60 Hz |
| Nominal power | 3,4 kW | 3,4 kW |
| Unit fuse | 16,0 A | 16,0 A |
| Phase (Nominal voltage) | 3~ | 3~ |
| Designation | FED400-400V | FED400UL-208V |
| Interior volume | 400 L | 400 L |
| Net weight of the unit (empty) | 145 kg | 145 kg |
| Load per rack | 35 kg | 35 kg |
| Permitted load | 90 kg | 90 kg |
| Wall clearance back | 160 mm | 160 mm |
| Wall clearance sidewise | 100 mm | 100 mm |
Housing dimensions not incl. fittings and connections
| Designation | FED400-400V | FED400UL-208V |
| Width net | 1,235 mm | 1,235 mm |
| Height net | 1,025 mm | 1,025 mm |
| Depth net | 765 mm | 765 mm |
Internal Dimensions
| Designation | FED400-400V | FED400UL-208V |
| Interior width | 1,000 mm | 1,000 mm |
| Interior height | 800 mm | 800 mm |
| Interior depth | 510 mm | 510 mm |
| Unit doors | 2 | 2 |
| Designation | FED400-400V | FED400UL-208V |
| Energy consumption at 150°C | 1,200 Wh/h | 1,200 Wh/h |
Fixtures
| Designation | FED400-400V | FED400UL-208V |
| Number of shelves (std./max.) | 2/10 | 2/10 |

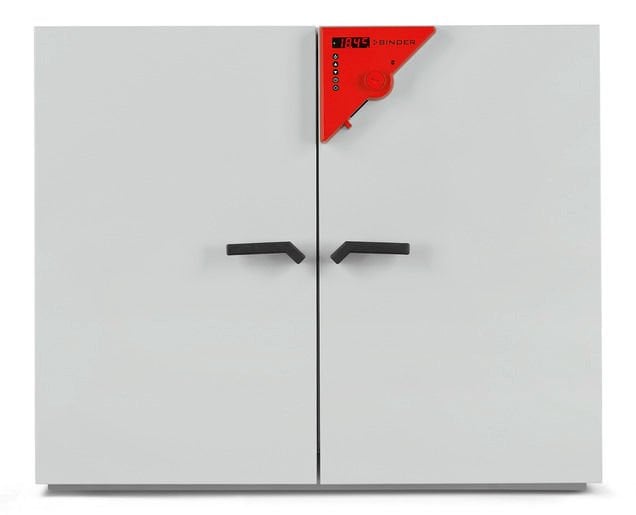

Binder Drying and Heating Chambers with Forced Convection and Enhanced Timer Functions | FED 400 Images
