- High temperature accuracy thanks to APT.line™ technology
- User-friendly controller with large display
- Computer interface: Ethernet
- Class 2 independent adjustable temperature safety device (DIN 12880) and class 3.1 independent temperature safety device (DIN 12880) with visual/acoustic alarm available for selection on the controller

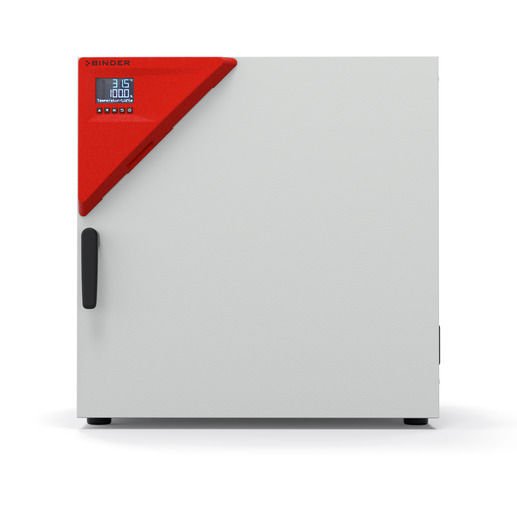

Binder Drying and Heating Chambers | FP 115
A BINDER material test chamber with mechanical convection of the FP series provides reliably short drying times and particularly fast heating – even for chambers under full loads.
Binder Drying and Heating Chambers | FP 115 General Information
- Temperature range: +10°C above ambient temperature to +300 °C
- High temperature accuracy thanks to APT.line™ technology
- Adjustable fan speed
- Controller with interval and real-time programming
- Electromechanical control of the exhaust air flap
- 2 chrome-plated racks
- Units up to 115 liters are stackable
- Class 2 independent adjustable temperature safety device (DIN 12880) and class 3.1 independent temperature safety device (DIN 12880) with visual/acoustic alarm available for selection on the controller
- Ergonomic handle design
- Computer interface: Ethernet
- Internal data logger, measured values can be read out in open format via USB
Binder Drying and Heating Chambers | FP 115 Technical Data
Data
| Designation | FP115-230V | FP115UL-120V |
| Article Number | 9010-0364 | 9010-0368 |
| Option model |
Standard |
Standard |
| Designation | FP115-230V | FP115UL-120V |
| Temperature range | +10 °C above ambient temperature to 300 °C | +10 °C above ambient temperature to 300 °C |
| Temperature uniformity at 150°C | 1.4 ± K | 1.4 ± K |
| Temperature fluctuation at 150°C | 0.3 ± K | 0.3 ± K |
| Heating up time to 150°C | 19 min | 19 min |
| Recovery time after door was opened for 30 s at 150°C | 5 min | 5 min |
Air Change Data
| Designation | FP115-230V | FP115UL-120V |
| Air change rate at 100°C | 32 x/h | 32 x/h |
Electrical Data
| Designation | FP115-230V | FP115UL-120V |
| Rated Voltage | 230 V | 120 V |
| Power frequency | 50/60 Hz | 60 Hz |
| Nominal power | 1,4 kW | 1,4 kW |
| Unit fuse | 10,0 A | 16,0 A |
| Phase (Nominal voltage) | 1~ | 1~ |
| Designation | FP115-230V | FP115UL-120V |
| Interior volume | 116 L | 116 L |
| Net weight of the unit (empty) | 55 kg | 55 kg |
| Load per rack | 30 kg | 30 kg |
| Permitted load | 150 kg | 150 kg |
| Wall clearance back | 160 mm | 160 mm |
| Wall clearance sidewise | 100 mm | 100 mm |
Housing dimensions not incl. fittings and connections
| Designation | FP115-230V | FP115UL-120V |
| Width net | 714 mm | 714 mm |
| Height net | 732 mm | 732 mm |
| Depth net | 636 mm | 636 mm |
| Designation | FP115-230V | FP115UL-120V |
| Interior width | 550 mm | 550 mm |
| Interior height | 550 mm | 550 mm |
| Interior depth | 383 mm | 383 mm |
| Unit doors | 1 | 1 |
| Designation | FP115-230V | FP115UL-120V |
| Sound-pressure level | 43 dB(A) | 43 dB(A) |
| Energy consumption at 100°C | 230 Wh/h | 230 Wh/h |
| Energy consumption at 150°C | 370 Wh/h | 370 Wh/h |
| Designation | FP115-230V | FP115UL-120V |
| Number of shelves (std./max.) | 2/5 |
2/5 |
