- Best energy efficiency on the market
- Excellent temporal and spatial temperature accuracy
- USB connection for recording data
- Temperature range up to +300 °C

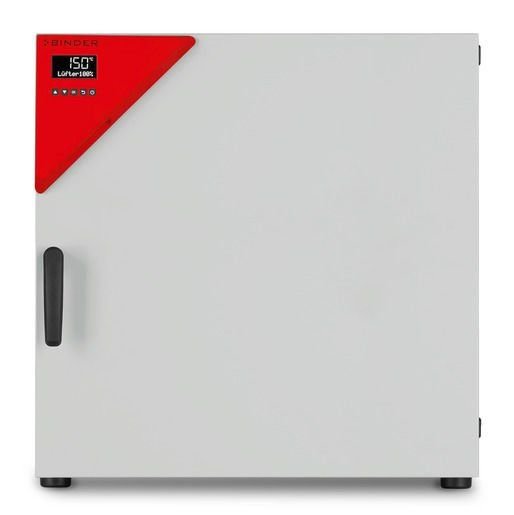

Binder Drying and Heating Chambers with Natural Convection | FD 260
A BINDER FD series Avantgarde. Line heating oven is always used when fast drying and sterilization is required. Thanks to its fully homogeneous temperature distribution, quick dynamics and powerful fan, this heating oven saves valuable time.
Binder Drying and Heating Chambers with Natural Convection | FD 260 General Information
- Temperature range: +10°C above ambient temperature to +300 °C
- Up to 30% lower energy consumption compared to conventional units on the market
- High temperature accuracy thanks to APT.line™ technology
- Forced convection
- Controller with LCD display
- Electromechanical control of the exhaust air flap
- 2 chrome-plated racks
- Stackable
- Class 2 integrated independent adjustable temperature safety device (DIN 12880) with visual alarm
- Ergonomic handle design
- USB port for recording data
Data
| Designation |
FD260-230V |
FD260UL-240V |
| Article Number | 9010-0309 | 9010-0310 |
| Option model |
Standard |
Standard |
| Designation |
FD260-230V |
FD260UL-240V |
| Temperature range | +10 °C above ambient temperature to 300 °C | +10 °C above ambient temperature to 300 °C |
| Temperature uniformity at 150°C | 1.9 ± K | 1.9 ± K |
| Temperature fluctuation at 150°C | 0.4 ± K | 0.4 ± K |
| Heating up time to 150°C | 19 min | 19 min |
| Recovery time after door was opened for 30 s at 150°C | 5 min |
5 min |
Air Change Data
| Designation |
FD260-230V |
FD260UL-240V |
| Air change rate at 100°C | 9 x/h | 9 x/h |
Electrical Data
| Designation |
FD260-230V |
FD260UL-240V |
| Rated Voltage | 230 V | 240 V |
| Power frequency | 50/60 Hz | 60 Hz |
| Nominal power | 2,3 kW | 2,5 kW |
| Unit fuse | 12,5 A | 16,0 A |
| Phase (Nominal voltage) | 1~ | 1~ |
| Designation |
FD260-230V |
FD260UL-240V |
| Interior volume | 259 L | 259 L |
| Net weight of the unit (empty) | 85 kg | 85 kg |
| Load per rack | 40 kg | 40 kg |
| Permitted load | 270 kg | 270 kg |
| Wall clearance back | 160 mm | 160 mm |
| Wall clearance sidewise | 100 mm | 100 mm |
Housing dimensions not incl. fittings and connections
| Designation |
FD260-230V |
FD260UL-240V |
| Width net | 810 mm | 810 mm |
| Height net | 940 mm | 940 mm |
| Depth net | 825 mm | 825 mm |
| Designation |
FD260-230V |
FD260UL-240V |
| Interior width | 650 mm | 650 mm |
| Interior height | 780 mm | 780 mm |
| Interior depth | 515 mm | 515 mm |
| Unit doors | 1 | 1 |
| Designation |
FD260-230V |
FD260UL-240V |
| Sound-pressure level | 43 dB(A) | 43 dB(A) |
| Energy consumption at 100°C | 245 Wh/h | 245 Wh/h |
| Energy consumption at 150°C | 410 Wh/h | 410 Wh/h |
| Designation |
FD260-230V |
FD260UL-240V |
| Number of shelves (std./max.) | 2/8 |
2/8 |
