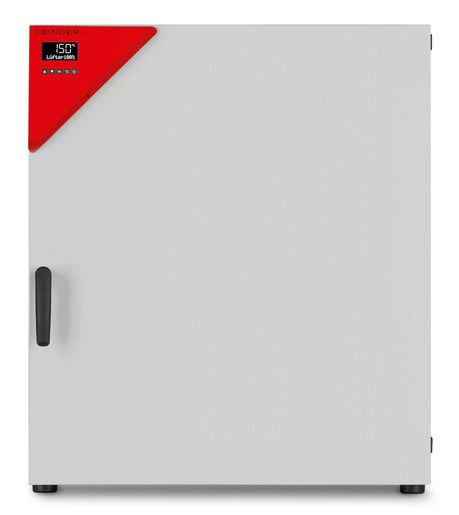

Binder Drying and Heating Chambers with Natural Convection | ED 260

Category

Drying and Tempering , Drying and Heating Chambers

Stock Code

ED 260

Benefits

Best energy efficiency on the market
Excellent temporal and spatial temperature accuracy
USB connection for recording data
Temperature range up to +300 °C

Product ınformatıon

Binder Drying and Heating Chambers with Natural Convection | ED 260

The strengths of a BINDER ED series drying chamber include routine drying and sterilization tasks up to +300 °C. Thanks to the natural convection, all thermal processes which use this drying chamber are highly efficient. The ED series ensures fast, uniform drying.

Binder Drying and Heating Chambers with Natural Convection | ED 260 General Information

- Temperature range:
• +5°C above ambient temperature to
• +300 °C
- Up to 30% lower energy consumption compared to conventional units on the market
- High temperature accuracy thanks to APT.line™ technology
- Natural convection
- Controller with LCD display
- Electromechanical control of the exhaust air flap

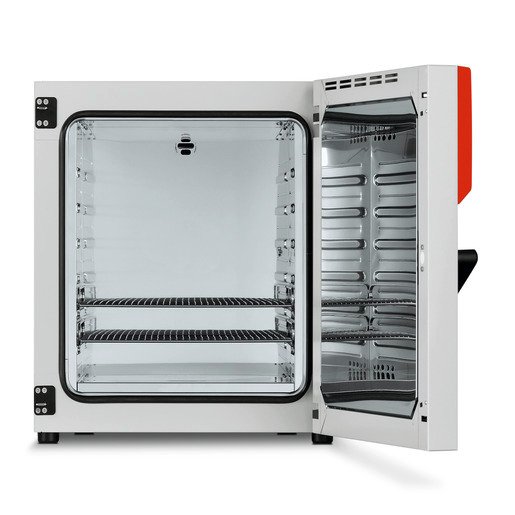

- 2 chrome-plated racks
- Stackable
- Class 2 integrated independent adjustable temperature safety device (DIN 12880) with visual alarm
- Ergonomic handle design
- USB port for recording data

Data

Designation	ED260-230V	ED260UL-240V
Article Number	9010-0339	9010-0340
Option model	Standard	Standard

Performance Data Temperature

Designation	ED260-230V	ED260UL-240V
Temperature range	+5 °C above ambient temperature to 300 °C	+5 °C above ambient temperature to 300 °C
Temperature uniformity at 150°C	1.8 ± K	1.8 ± K
Temperature fluctuation at 150°C	0.8 ± K	0.8 ± K
Heating up time to 150°C	50 min	50 min
Recovery time after door was opened for 30 s at 150°C	20 min	20 min

Air Change Data

Designation	ED260-230V	ED260UL-240V
Air change rate at 100°C	3 x/h	3 x/h

Electrical Data

Designation	ED260-230V	ED260UL-240V
Rated Voltage	230 V	240 V
Power frequency	50/60 Hz	60 Hz
Nominal power	2,25 kW	2,45 kW
Unit fuse	12,5 A	16,0 A
Phase (Nominal voltage)	1~	1~

Measures

Designation	ED115-230V	ED115UL-120V
Interior volume	114 L	114 L
Net weight of the unit (empty)	54 kg	54 kg
Load per rack	30 kg	30 kg
Permitted load	150 kg	150 kg
Wall clearance back	160 mm	160 mm
Wall clearance sidewise	100 mm	100 mm

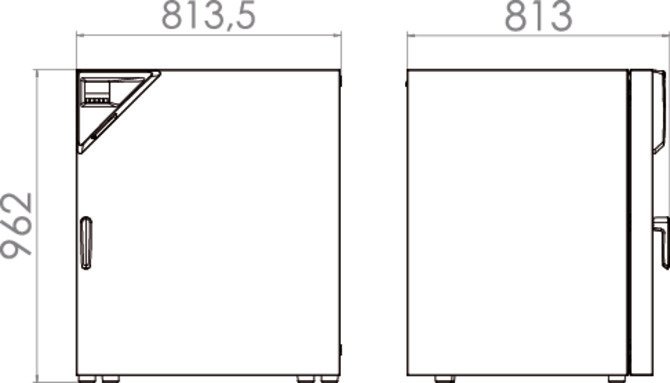

Housing dimensions not incl. fittings and connections

Designation	ED260-230V	ED260UL-240V
Width net	810 mm	810 mm
Height net	940 mm	940 mm
Depth net	760 mm	760 mm

Internal Dimensions

Designation	ED260-230V	ED260UL-240V
Interior width	610 mm	610 mm
Interior height	760 mm	760 mm
Interior depth	550 mm	550 mm
Unit doors	1	1

Environment Specific Data

Designation	ED260-230V	ED260UL-240V
Energy consumption at 100°C	195 Wh/h	195 Wh/h
Energy consumption at 150°C	355 Wh/h	355 Wh/h

Fixtures

Designation	ED260-230V	ED260UL-240V
Number of shelves (std./max.)	2/8	2/8

Binder Drying and Heating Chambers with Natural Convection | ED 260 Images

Binder Drying and Heating Chambers with Natural Convection | ED 260
