ED 720
Benefits
- Best energy efficiency on the market
- Excellent temporal and spatial temperature accuracy
- USB connection for recording data
- Temperature range up to +300 °C
Binder Drying and Heating Chambers with Natural Convection | ED 720
The strengths of a BINDER ED series drying chamber include routine drying and sterilization tasks up to +300 °C. Thanks to the natural convection, all thermal processes which use this drying chamber are highly efficient. The ED series ensures fast, uniform drying.
Binder Drying and Heating Chambers with Natural Convection | ED 720 General Information
- Temperature range:
• +5°C above ambient temperature to
• +300 °C
- Up to 30% lower energy consumption compared to conventional units on the market
- High temperature accuracy thanks to APT.line™ technology
- Natural convection
- Controller with LCD display
- Electromechanical control of the exhaust air flap
- 2 chrome-plated racks
- Stackable
- Class 2 integrated independent adjustable temperature safety device (DIN 12880) with visual alarm
- Ergonomic handle design
- USB port for recording data
Data
| Designation |
ED720-400V |
| Article Number | 9010-0341 |
| Option model |
Standard |
| Designation |
ED720-400V |
| Temperature range | +5 °C above ambient temperature to 300 °C |
| Temperature uniformity at 150°C | 3.2 ± K |
| Temperature fluctuation at 150°C | 0.8 ± K |
| Heating up time to 150°C | 85 min |
| Recovery time after door was opened for 30 s at 150°C | 25 min |
Air Change Data
| Designation |
ED720-400V |
| Air change rate at 100°C | 2 x/h |
| Designation |
ED720-400V |
| Rated Voltage | 400 V |
| Power frequency | 50/60 Hz |
| Nominal power | 4,1 kW |
| Unit fuse | 16,0 A |
| Phase (Nominal voltage) | 3~ |
| Designation |
ED720-400V |
| Interior volume | 743 L |
| Net weight of the unit (empty) | 169 kg |
| Load per rack | 45 kg |
| Permitted load | 315 kg |
| Wall clearance back | 160 mm |
| Wall clearance sidewise | 100 mm |
Housing dimensions not incl. fittings and connections
| Designation |
ED720-400V |
| Width net | 1,165 mm |
| Height net | 1,590 mm |
| Depth net | 870 mm |
Internal Dimensions
| Designation |
ED720-400V |
| Interior width | 960 mm |
| Interior height | 1,280 mm |
| Interior depth | 605 mm |
| Unit doors | 2 |
| Designation |
ED720-400V |
| Energy consumption at 100°C | 380 Wh/h |
| Energy consumption at 150°C | 700 Wh/h |
| Designation |
ED720-400V |
| Number of shelves (std./max.) | 2/16 |

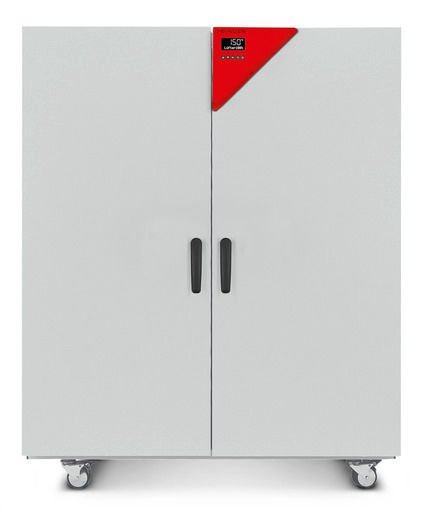

Binder Drying and Heating Chambers with Natural Convection | ED 720 Images
