ED-S 115
Benefits
- Easy handling
- Accurate temperature control
- Simple and ergonomic door opening

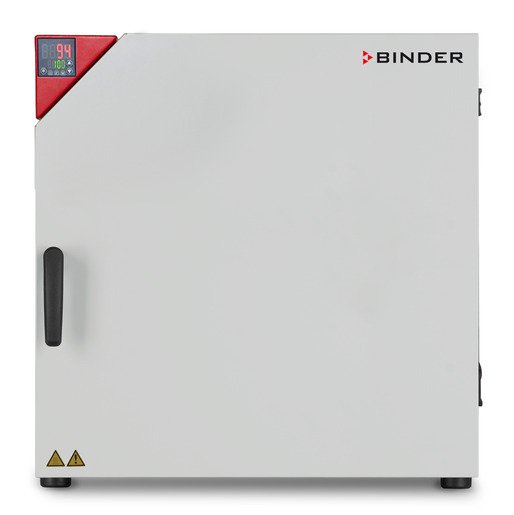

Binder Drying and Heating Chambers with Natural Convection | ED-S 115
The new products in the Solid. Line impress with their tried-and-tested BINDER quality and reliability. They are suited to drying and heating. The attributes of the Solid.Line are geared towards the application in question and therefore used in research and quality assurance.
Binder Drying and Heating Chambers with Natural Convection | ED-S 115 General Information
- Temperature range: +7°C above ambient temperature to +250 °C
- APT.line™ preheating chamber technology
- Natural convection
- Adjustable exhaust air flap
- Controller with timer functions
- 2 chrome-plated racks
- Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
Data
| Designation | EDS115-230V |
EDS115UL-120V |
| Article Number | 9090-0020 | 9090-0021 |
| Option model |
Standard |
Standard |
| Designation | EDS115-230V |
EDS115UL-120V |
| Temperature range | +7 °C above ambient temperature to 250 °C | +7 °C above ambient temperature to 250 °C |
| Temperature uniformity at 150°C | 2.8 ± K | 2.8 ± K |
| Temperature fluctuation at 150°C | 0.9 ± K | 0.9 ± K |
| Heating up time to 150°C | 55 min | 55 min |
Electrical Data
| Designation | EDS115-230V |
EDS115UL-120V |
| Rated Voltage | 230 V | 120 V |
| Power frequency | 50/60 Hz | 60 Hz |
| Nominal power | 1,25 kW | 1,35 kW |
| Unit fuse | 6,3 A | 6,3 A |
| Phase (Nominal voltage) | 1~ | 1~ |
| Designation | EDS115-230V |
EDS115UL-120V |
| Interior volume | 118 L | 118 L |
| Net weight of the unit (empty) | 50 kg | 50 kg |
| Load per rack | 20 kg | 20 kg |
| Permitted load | 75 kg | 75 kg |
| Wall clearance back | 160 mm | 160 mm |
| Wall clearance sidewise | 100 mm | 100 mm |

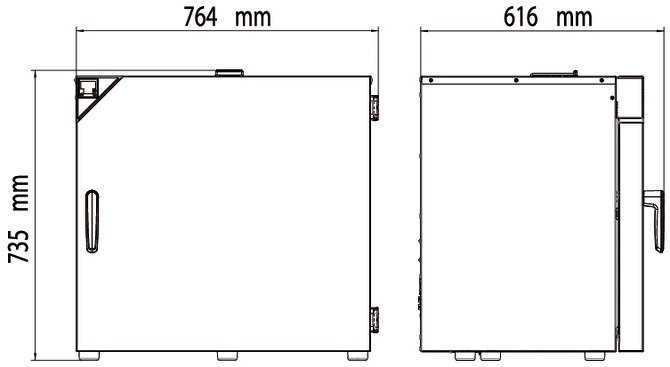

Housing dimensions not incl. fittings and connections
| Designation | EDS115-230V |
EDS115UL-120V |
| Width net | 764 mm | 764 mm |
| Height net | 735 mm | 735 mm |
| Depth net | 616 mm | 616 mm |
Internal Dimensions
| Designation | EDS115-230V |
EDS115UL-120V |
| Interior width | 550 mm | 550 mm |
| Interior height | 550 mm | 550 mm |
| Interior depth | 390 mm | 390 mm |
| Unit doors | 1 | 1 |
| Designation | EDS115-230V |
EDS115UL-120V |
| Energy consumption at 150°C | 300 Wh/h |
300 Wh/h |
| Designation | EDS115-230V |
EDS115UL-120V |
| Number of shelves (std./max.) | 1/5 | 1/5 |

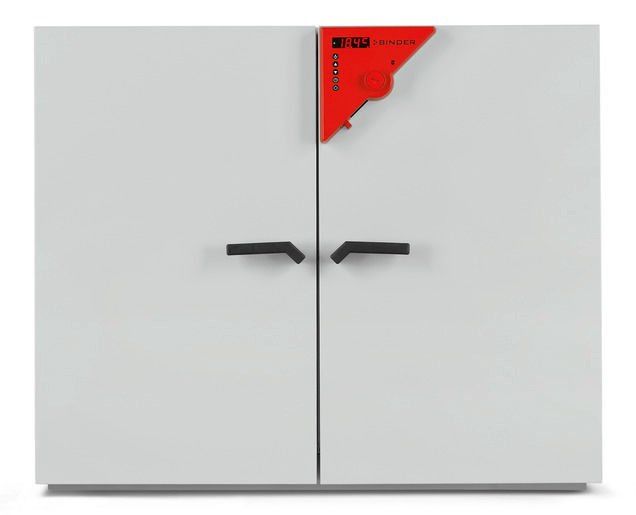

Binder Drying and Heating Chambers with Natural Convection | ED 400 Images
