- Homogeneous climate conditions thanks to APT.line™ technology
- Automatic water and wastewater management
- Pressure humidification with fast response times
- Comprehensive programming and data acquisition
- Large heated viewing window

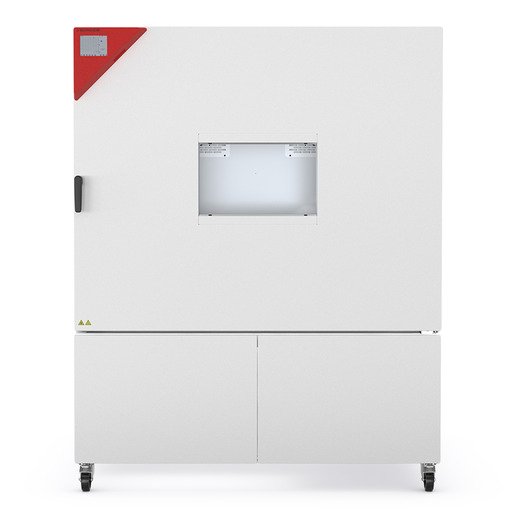

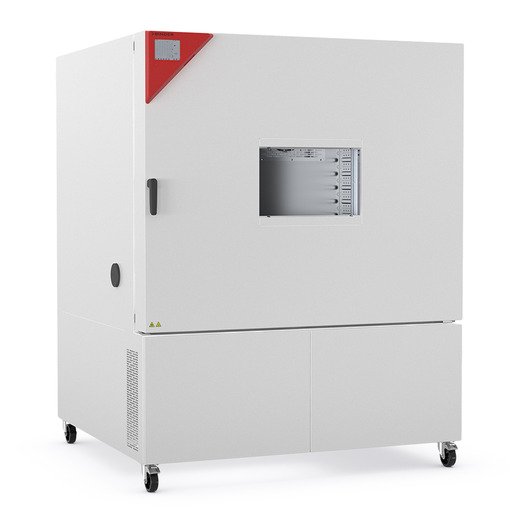

Binder Dynamic Climate Chambers | MKF 1020
A BINDER MKF series environmental simulation chamber is ideally suited for any cold and heat testing based on current temperature and climate testing methods according to DIN and IEC standards. The comprehensive standard equipment for this environmental simulation chamber ensures ease of operation.
Binder Dynamic Climate Chambers | MKF 1020 General Information
- Temperature range: -40°C above ambient temperature to +180 °C
- Humidity range: 10 % to 98 % RH
- Integrated water-storage tank, 20 liters
- 4 zero-voltage relay contacts
- APT.line™ preheating chamber technology
- Programmable condensation protection for test material
- Heated viewing window with LED interior lighting
- Humidity regulation with capacitative humidity sensor and vapor humidification
- BINDER Multi Management Software APT-COM™ Basic Edition
- Troubleshooting system with visual and audible alarms
- Intuitive touchscreen controller with time-segment and real-time programming
- Internal data logger, measured values can be read out in open format via USB
- 2 access ports with silicone plugs: 80 mm, left and right
- 4 castors, two with brakes
- Computer interface: Ethernet
- Adjustable ramp function
- Integrated chart recorder
- Real-time clock
- Door heating
- Alarm notification in the event of insufficient water in fresh water tank
- 1 stainless steel rack
- Complete safety connection kit for water supply and drainage, up to 1 m height

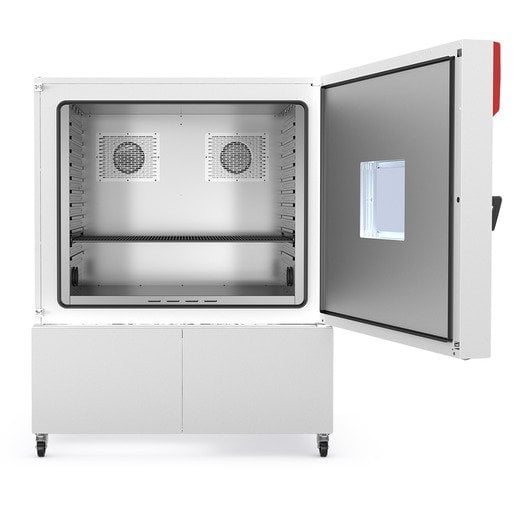

- Inner chamber made of stainless steel
- CFC-free refrigerant R-452A
- Cooling with compressor cooling unit
Binder Constant Climate Chambers | MKF 1020 General Information
Data
| Designation |
MKF1020-400V |
MKF1020-480V-C |
| Article Number | 9020-0409 | 9020-0448 |
| Option model |
Standard |
with voltage and frequency converter |
Performance Data Temparature
| Designation |
MKF1020-400V |
MKF1020-480V-C |
| Temperature range | -40...180 °C | -40...180 °C |
| Temperature uniformity dependent on set value | 0.1...1.8 ± K | 0.1...1.8 ± K |
| Temperature fluctuation dependent on set value | 0.1...0.5 ± K | 0.1...0.5 ± K |
| Average heating-up rate according to IEC 60068-3-5 | 5.5 K/min | 5.5 K/min |
| Cooling down time from 180°C to -40°C | 120 min | 120 min |
| Average cooling down time according to IEC 60068-3-5 | 5.0 K/min | 5.0 K/min |
| Designation |
MKF1020-400V |
MKF1020-480V-C |
| Humidity range | 10...98 % RH | 10...98 % RH |
| Temperature fluctuation with humidity dependent on set value | 5...94 °C |
5...94 °C |
| Max. heat compensation at 25°C and 90% RH | 1,500 W |
1,500 W |
| Designation |
MKF1020-400V |
MKF1020-480V-C |
| Rated Voltage | 400 V | 480 V |
| Power frequency | 50 Hz | 60 Hz |
| Nominal power | 12,5 kW | 12,5 kW |
| Unit fuse | 32,0 A | 32,0 A |
| Phase (Nominal voltage) | 3~ | 3~ |
Measures
| Designation |
MKF1020-400V |
MKF1020-480V-C |
| Interior volume | 991 L | 991 L |
| Net weight of the unit (empty) | 636 kg | 636 kg |
| Load per rack | 40 kg | 40 kg |
| Permitted load | 200 kg | 200 kg |
| Wall clearance back | 300 mm | 300 mm |
| Wall clearance sidewise | 200 mm | 200 mm |

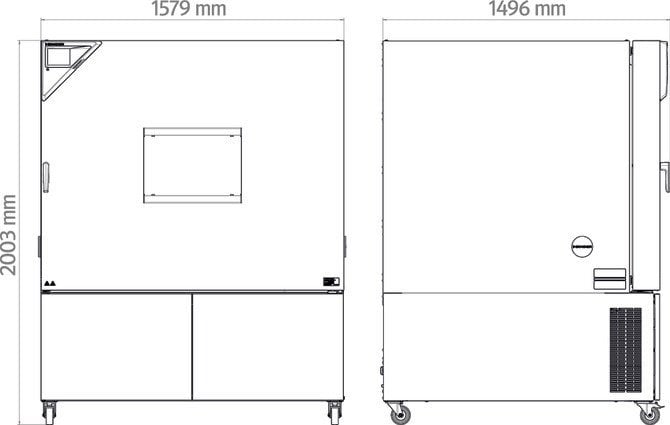

| Designation | MKF1020-400V | MKF1020-480V-C |
| Width net | 1,580 mm | 1,580 mm |
| Height net | 2,005 mm | 2,005 mm |
| Depth net | 1,480 mm | 1,480 mm |
| Designation | MKF1020-400V | MKF1020-480V-C |
| Interior width | 1,580 mm | 1,580 mm |
| Interior height | 2,005 mm | 2,005 mm |
| Interior depth | 600 mm | 600 mm |
| Unit doors | 1 | 1 |
| Designation | MKF1020-400V | MKF1020-480V-C |
| Sound-pressure level | 69 dB(A) | 69 dB(A) |
| Energy consumption at 25°C and 60% RH | 2,200 Wh/h | 2,200 Wh/h |
| Designation | MKF1020-400V | MKF1020-480V-C |
| Number of shelves (std./max.) | 1/11 | 1/11 |
