Benefits
- Homogeneous climate conditions thanks to APT.line™ technology
- Automatic water and wastewater management
- Pressure humidification with fast response times
- Comprehensive programming and data acquisition
- Large heated viewing window

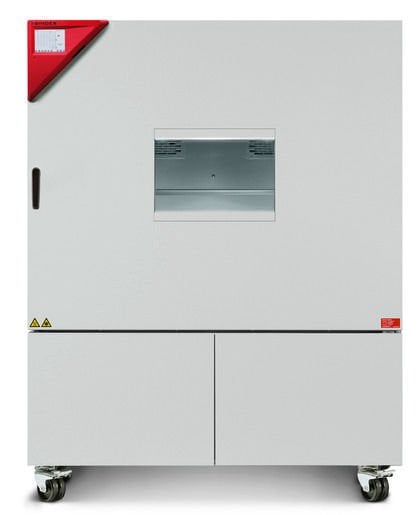

Binder Dynamic Climate Chambers | MKFT 720
The BINDER MKFT series environmental simulation chamber for low temperature alternating climate profiles is the specialist for dynamic alternating climate change between -70 °C and 180 °C. Large performance reserves and rapid cooling make the MKFT environmental simulation chamber the high-end product for complex standards-based climate tests.
Binder Dynamic Climate Chambers | MKFT 720 General Information
- Temperature range: -70 °C to +180 °C
- Humidity range: 10 % to 98 % RH
- Integrated water-storage tank, 20 liters
- 4 zero-voltage relay contacts
- APT.line™ preheating chamber technology
- Programmable condensation protection for test material
- Intuitive touchscreen controller with time-segment and real-time programming
- Internal data logger, measured values can be read out in open format via USB
- Heated viewing window with LED interior lighting
- Humidity regulation with capacitative humidity sensor and vapor humidification
- BINDER Multi Management Software APT-COM™ Basic Edition
- Troubleshooting system with visual and audible alarms
- 2 access ports with silicone plugs: 80 mm, left and right
- Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
- 4 castors, two with brakes
- Computer interface: Ethernet
- Adjustable ramp function
- Integrated chart recorder
- Real-time clock
- Door heating
- Alarm notification in the event of insufficient water in fresh water tank
- 1 stainless steel rack
- Complete safety connection kit for water supply and drainage, up to 1 m in height
- Inner chamber made of stainless steel
- CFC-free refrigerants R-452A and R-23
- Cooling with cascade compressor cooling unit
Binder Dynamic Climate Chambers | MKFT 720 Technical Specifications
Data
| Designation | MKFT720-400V | MKFT720-480V-C |
| Article Number | 9020-0384 | 9020-0360 |
| Option model |
Standard |
with voltage and frequency converter |
Performance Data Temperature
| Designation | MKFT720-400V | MKFT720-480V-C |
| Temperature range | -70...180 °C | -70...180 °C |
| Temperature uniformity dependent on set value | 0.3...2.0 ± K | 0.3...2.0 ± K |
| Temperature fluctuation dependent on set value | 0.1...0.1 ± K | 0.1...0.1 ± K |
| Average heating-up rate according to IEC 60068-3-5 | 4.8 K/min | 4.8 K/min |
| Average cooling down time according to IEC 60068-3-5 | 4.0 K/min | 4.0 K/min |
Performance Data Climate
| Designation | MKFT720-400V | MKFT720-480V-C |
| Temperature range with humidity | 10...95 °C | 10...95 °C |
| Humidity range | 10...98 % RH | 10...98 % RH |
| Temperature fluctuation with humidity dependent on set value | 0.1...1 ± K | 0.1...1 ± K |
| Humidity fluctuation with humidity dependent on set value | ≤2,5 ± % r.F. | ≤2,5 ± % r.F. |
| Max. heat compensation at 25°C and 90% RH | 800 W | 800 W |
| Designation | MKFT720-400V | MKFT720-480V-C |
| Rated Voltage | 400 V | 480 V |
| Power frequency | 50 Hz | 60 Hz |
| Nominal power | 11 kW | 11 kW |
| Unit fuse | 32,0 A | 32,0 A |
| Phase (Nominal voltage) | 3~ | 3~ |
Measures
| Designation | MKFT720-400V | MKFT720-480V-C |
| Interior volume | 734 L | 734 L |
| Net weight of the unit (empty) | 635 kg | 635 kg |
| Load per rack | 40 kg | 40 kg |
| Permitted load | 160 kg | 160 kg |
| Wall clearance back | 300 mm | 300 mm |
| Wall clearance sidewise | 200 mm | 200 mm |
Housing Dimensions Not Incl. Fittings and Connections
| Designation | MKFT720-400V | MKFT720-480V-C |
| Width net | 1,580 mm | 1,580 mm |
| Height net | 2,005 mm | 2,005 mm |
| Depth net | 1,140 mm | 1,140 mm |
Internal Dimensions
| Designation | MKFT720-400V | MKFT720-480V-C |
| Interior width | 1,200 mm | 1,200 mm |
| Interior height | 1,020 mm | 1,020 mm |
| Interior depth | 600 mm | 600 mm |
| Unit doors | 1 | 1 |
Environment-specific Data
| Designation | MKFT720-400V | MKFT720-480V-C |
| Sound-pressure level | 69 dB(A) | 72 dB(A) |
| Energy consumption at 25°C and 60% RH | 2,200 Wh/h |
2,200 Wh/h |
Fixtures
| Designation | MKFT720-400V | MKFT720-480V-C |
| Number of shelves (std./max.) | 1/11 | 1/11 |
