The BINDER incubator of the BD series with natural convection is the specialist in long-term and stable continuous operation. This incubator is specially designed for gentle incubation of organisms, as well as conditioning of heat-sensitive media or microbiological heating.

Binder Standard Incubators with Natural Convection | BD 23 General Information

- Temperature range:
• +5°C above ambient temperature to
• +100°C
- APT.line™ preheating chamber technology
- Natural convection
- Adjustable exhaust air flap
- Controller with timer functions
- Inner door made of tempered safety glass
- 2 chrome-plated racks
- Stackable
- Class 3.1 integrated independent temperature safety device (DIN 12880) with visual alarm
- Computer interface: RS 422

Binder Standard Incubators with Natural Convection | BD 23 Specifications

Data

Designation	BD023-230V	BD023UL-120V
Article Number	9010-0187	9010-0189
Option model	Standard	Standard

Performance Data Temperature

Designation	BD023-230V	BD023UL-120V
Temperature range	+5 °C above ambient temperature to 100 °C	+5 °C above ambient temperature to 100 °C
Temperature uniformity at 37°C	0.5 ± K	0.5 ± K
Temperature fluctuation at 37°C	0.2 ± K	0.2 ± K
Heating up time to 37°C	59 min	59 min
Recovery time after door was opened for 30 s at 37°C	20 min	20 min

Electrical Data

Designation	BD023-230V	BD023UL-120V
Rated Voltage	230 V	240 V
Power frequency	50/60 Hz	50/60 Hz
Nominal power	1,65 kW	1,75 kW
Unit fuse	16,0 A	16,0 A
Phase (Nominal voltage)	1~	1~

Measures

Designation	BD023-230V	BD023UL-120V
Interior volume	20 L	20 L
Net weight of the unit (empty)	27 kg	27 kg
Load per rack	12 kg	12 kg
Permitted load	25 kg	25 kg
Wall clearance back	100 mm	100 mm
Wall clearance sidewise	50 mm	50 mm

Housing dimensions not incl. fittings and connections

Designation	BD023-230V	BD023UL-120V
Width net	435 mm	435 mm
Height net	495 mm	495 mm
Depth net	520 mm	520 mm

Internal Dimensions

Designation	BD023-230V	BD023UL-120V
Interior width	222 mm	222 mm
Interior height	330 mm	330 mm
Interior depth	277 mm	277 mm
Unit doors	1	1

Environment-specific data

Designation	BD023-230V	BD023-230V
Energy consumption at 100°C	11 Wh/h	11 Wh/h

Fixtures

Designation	BD023-230V	BD023-230V
Number of shelves (std./max.)	2/16	2/16

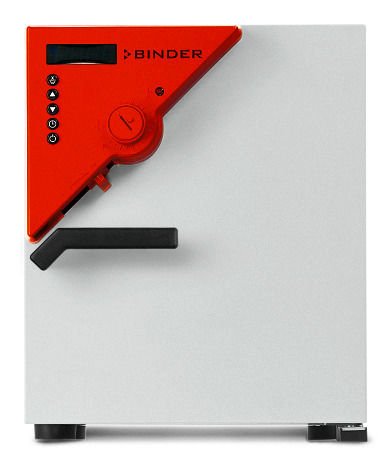

Binder Standard Incubators with Natural Convection | BD 23 Images
