- Excellent temporal and spatial temperature accuracy
- High process reliability
- 100°C disinfection routine

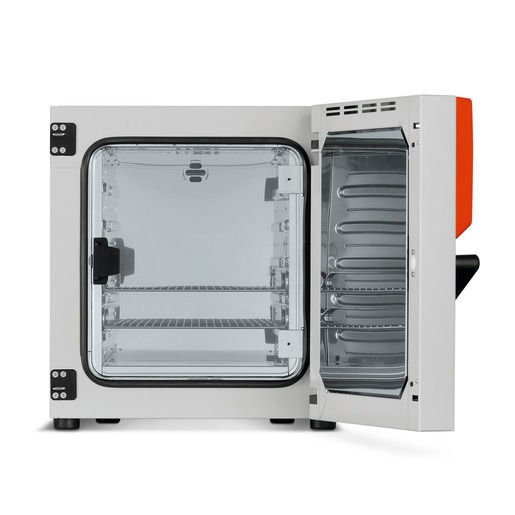

Binder Standard Incubators with Natural Convection | BD 56
The BD Avantgarde. Line series is specially designed for gentle incubation of organisms, as well as conditioning of heat-sensitive media. The new design of the units and the homogeneous temperature distribution ensure the very best results.
- Temperature range:
• +5°C above ambient temperature to
• +100°C
- High temperature accuracy thanks to APT.line™ technology
- Natural convection
- Controller with LCD display
- Electromechanical control of the exhaust air flap
- Inner door made of tempered safety glass
- 2 chrome-plated racks
- Stackable
- Class 3.1 integrated independent temperature safety device (DIN 12880) with visual alarm
- Ergonomic handle design
- USB port for recording data
Binder Standard Incubators with Natural Convection | BD 56 Specifications
Data
| Designation |
BD056-230V |
BD056UL-120V |
| Article Number | 9010-0323 | 9010-0324 |
| Option model |
Standard |
Standard |
| Designation |
BD056-230V |
BD056UL-120V |
| Temperature range | +5 °C above ambient temperature to 100 °C | +5 °C above ambient temperature to 100 °C |
| Temperature uniformity at 100°C | 1.1 ± K | 1.1 ± K |
| Temperature uniformity at 37°C | 0.3 ± K | 0.3 ± K |
| Temperature fluctuation at 100°C | 0.3 ± K | 0.3 ± K |
| Temperature fluctuation at 37°C | 0.1 ± K | 0.1 ± K |
| Heating up time to 100°C | 75 min | 75 min |
| Heating up time to 37°C | 52 min | 52 min |
| Recovery time after door was opened for 30 s at 37°C | 15 min | 15 min |
Electrical Data
| Designation |
BD056-230V |
BD056UL-120V |
| Rated Voltage | 230 V | 120 V |
| Power frequency | 50/60 Hz | 60 Hz |
| Nominal power | 0,3 kW | 0,3 kW |
| Unit fuse | 6,3 A | 12,5 A |
| Phase (Nominal voltage) | 1~ | 1~ |
Measures
| Designation | BD056-230V | BD056UL-120V |
| Interior volume | 57 L | 57 L |
| Net weight of the unit (empty) | 39 kg | 39 kg |
| Load per rack | 30 kg | 30 kg |
| Permitted load | 70 kg | 70 kg |
| Wall clearance back | 160 mm | 160 mm |
| Wall clearance sidewise | 100 mm | 100 mm |
Housing dimensions not incl. fittings and connections
| Designation |
BD056-230V |
BD056UL-120V |
| Width net | 560 mm | 560 mm |
| Height net | 625 mm | 625 mm |
| Depth net | 565 mm | 565 mm |
Internal Dimensions
| Designation |
BD056-230V |
BD056UL-120V |
| Interior width | 360 mm | 360 mm |
| Interior height | 420 mm | 420 mm |
| Interior depth | 380 mm | 380 mm |
| Inner doors | 1 | 1 |
| Unit doors | 1 | 1 |
Environment-specific data
| Designation |
BD056-230V |
BD056UL-120V |
| Energy consumption at 100°C | 110 Wh/h | 110 Wh/h |
| Energy consumption at 37°C | 25 Wh/h | 25 Wh/h |
Fixtures
| Designation |
BD056-230V |
BD056UL-120V |
| Number of shelves (std./max.) | 2/4 | 2/4 |
