- Lowest energy consumption in its class
- Environmentally-friendly refrigerants R-290 and R-170
- Thermal insulation with unique long-life VIPs (vacuum insulation panels)
- Rust-proof interior made completely of stainless steel

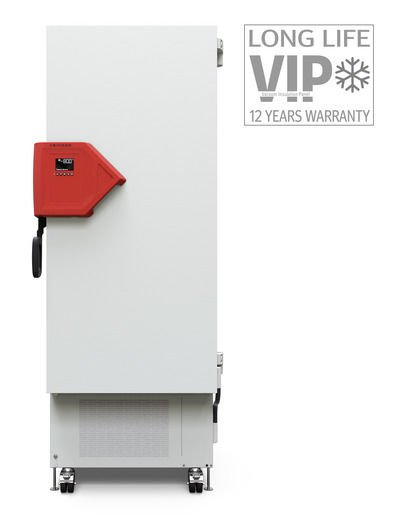

Binder Ultra-Low Temperature Freezers with Climate-Neutral Refrigerants | UF V 350
The BINDER ultra low temperature freezer ensures the safe storage of samples at -90 °C. It combines outstanding environmental friendliness with low energy consumption, convenient operation and an individual safety concept.
Binder Ultra-Low Temperature Freezers with Climate-Neutral Refrigerants | UF V 350 General Information
- Temperature range: -90 °C to -40 °C
- Lowest energy consumption in its class
- Powerful cascade compressor cooling unit
- Environmentally friendly refrigerants R-290 and R-170
- Thermal insulation with unique long-life VIPs (vacuum insulation panels)
- Innovative door gasket concept reduces buildup of ice
- Ergonomic door handle
- Rust-proof interior made completely of stainless steel
- Detachable inner doors made of stainless steel
- 3 stainless-steel shelves providing flexible placement
- Zero-voltage alarm contact for in-house alarm system
- Internal data logger, measured values can be read out in open format via USB
- Ethernet interface
- 3 access ports, Ø 28 mm, rear
Data
| Designation |
UFV350-230V |
UFV350UL-120V |
UFV350UL-240V |
| Article Number | 9020-0453 | 9020-0454 | 9020-0455 |
| Option model |
Standard |
Standard |
Standard |
| Designation |
UFV350-230V |
UFV350UL-120V |
UFV350UL-240V |
| Temperature range | -90...-40 °C | -90...-40 °C | -90...-40 °C |
| Temperature uniformity at -80°C | 3.5 ± K | 3.5 ± K | 3.5 ± K |
| Temperature fluctuation at -80°C | 4.0 ± K | 4.0 ± K | 4.0 ± K |
| Cooling down time from 22°C to -80°C | 210 min | 210 min | 210 min |
Electrical Data
| Designation |
UFV350-230V |
UFV350UL-120V |
UFV350UL-240V |
| Rated Voltage | 230 V | 115 V | 208...230 V |
| Power frequency | 50 Hz | 60 Hz | 60 Hz |
| Nominal power | 1,6 kW | 1,4 kW | 1,8 kW |
| Unit fuse | 10,0 A | 15,0 A | 10,0 A |
| Phase (Nominal voltage) | 1~ | 1~ | 2~ |
Measures
| Designation |
UFV350-230V |
UFV350UL-120V |
UFV350UL-240V |
| Interior volume | 402 L | 402 L | 402 L |
| Net weight of the unit (empty) | 226 kg | 226 kg | 226 kg |
| Permitted load | 160 kg | 160 kg | 160 kg |
| Permitted load of individual compartment | 40 kg |
40 kg |
40 kg |
| Wall clearance back | 100 mm | 100 mm | 100 mm |
| Wall clearance sidewise | 250 mm | 250 mm | 250 mm |
| Designation |
UFV350-230V |
UFV350UL-120V |
UFV350UL-240V |
| Width net | 706 mm | 706 mm | 706 mm |
| Height net | 1,966 mm | 1,966 mm | 1,966 mm |
| Depth net | 938 mm | 938 mm | 938 mm |
Measures
| Designation |
UFV350-230V |
UFV350UL-120V |
UFV350UL-240V |
| Interior width | 486 mm | 486 mm | 486 mm |
| Interior height | 1,300 mm | 1,300 mm | 1,300 mm |
| Interior depth | 636 mm | 636 mm | 636 mm |
| Inner doors | 2 | 2 | 2 |
| Unit doors | 1 | 1 | 1 |
Environment-specific data
| Designation |
UFV350-230V |
UFV350UL-120V |
UFV350UL-240V |
| Sound-pressure level | 47 dB(A) | 47 dB(A) | 47 dB(A) |
| Energieverbrauch bei Sollwert -80 °C und Tᵤ = 20 °C | 7.5 kWh/d | 7.5 kWh/d | 7.5 kWh/d |
| Designation |
UFV350-230V |
UFV350UL-120V |
UFV350UL-240V |
| Number of shelves (std./max.) | 3/11 | 3/11 | 3/11 |
Load-variants
| Designation |
UFV350-230V |
UFV350UL-120V |
UFV350UL-240V |
| Freezer racks per compartment | 3 | 3 | 3 |
| Cryoboxes, 50 mm | 264 | 264 | 264 |
