Binder Ultra-Low Temperature Freezers with Climate-Neutral Refrigerants | UF V 700

Category

Ult Storage , Ultra-Low Temperature Freezers

Stock Code

UF V 700

Benefits

Lowest energy consumption in its class
Environmentally-friendly refrigerants R-290 and R-170
Thermal insulation with unique long-life VIPs (vacuum insulation panels)
Rust-proof interior made completely of stainless steel

Product ınformatıon

Binder Ultra-Low Temperature Freezers with Climate-Neutral Refrigerants | UF V 700

The BINDER ultra low temperature freezer ensures the safe storage of samples at -90 °C. It combines outstanding environmental friendliness with low energy consumption, convenient operation and an individual safety concept.

Binder Ultra-Low Temperature Freezers with Climate-Neutral Refrigerants | UF V 700 General Information

- Temperature range: -90 °C to -40 °C
- Lowest energy consumption in its class
- Powerful cascade compressor cooling unit
- Environmentally friendly refrigerants R-290 and R-170
- Thermal insulation with unique long-life VIPs (vacuum insulation panels)
- Innovative door gasket concept reduces buildup of ice
- Ergonomic door handle
- Rust-proof interior made completely of stainless steel
- Detachable inner doors made of stainless steel
- 3 stainless-steel shelves providing flexible placement
- Water cooling (depending on version)
- Zero-voltage alarm contact for in-house alarm system
- Internal data logger, measured values can be read out in open format via USB
- Ethernet interface
- 3 access ports, Ø 28 mm, rear

Data

Designation	UFV700-230V	UFV700-230V-W	UFV700UL-240V	UFV700UL-120V
Article Number	9020-0348	9020-0350	9020-0354	9020-0352
Option model	Standard	Water cooling	Standard	Standard

Performance Data Temperature

Designation	UFV700-230V	UFV700-230V-W	UFV700UL-240V	UFV700UL-120V
Temperature range	-90...-40 °C	-90...-40 °C	-90...-40 °C	-90...-40 °C
Temperature uniformity at -80°C	2.5 ± K	2.5 ± K	2.5 ± K	2.5 ± K
Temperature fluctuation at -80°C	1.5 ± K	1.5 ± K	1.5 ± K	1.5 ± K
Cooling down time from 22°C to -80°C	450 min	450 min	450 min	450 min

Electrical Data

Designation	UFV700-230V	UFV700-230V-W	UFV700UL-240V	UFV700UL-120V
Rated Voltage	230 V	230 V	208...230 V	115 V
Power frequency	50 Hz	50 Hz	60 Hz	60 Hz
Nominal power	1,6 kW	1,6 kW	1,8 kW	1,4 kW
Unit fuse	10,0 A	10,0 A	10,0 A	15,0 A
Phase (Nominal voltage)	1~	1~	2~	1~

Measures

Designation	UFV700-230V	UFV700-230V-W	UFV700UL-240V	UFV700UL-120V
Interior volume	736 L	736 L	736 L	736 L
Net weight of the unit (empty)	288 kg	288 kg	288 kg	288 kg
Permitted load	200 kg	200 kg	200 kg	200 kg
Permitted load of individual compartment	50 kg	50 kg	50 kg	50 kg
Wall clearance back	100 mm	100 mm	100 mm	100 mm
Wall clearance sidewise	250 mm	250 mm	250 mm	250 mm

Housing dimensions not incl. fittings and connections

Designation	UFV700-230V	UFV700-230V-W	UFV700UL-240V	UFV700UL-120V
Width net	1,110 mm	1,110 mm	1,110 mm	1,110 mm
Height net	1,966 mm	1,966 mm	1,966 mm	1,966 mm
Depth net	938 mm	938 mm	938 mm	938 mm

Internal Dimensions

Designation	UFV700-230V	UFV700-230V-W	UFV700UL-240V	UFV700UL-120V
Interior width	890 mm	890 mm	890 mm	890 mm
Interior height	1,300 mm	1,300 mm	1,300 mm	1,300 mm
Interior depth	636 mm	636 mm	636 mm	636 mm
Inner doors	2	2	2	2
Unit doors	1	1	1	1

Environment-specific data

Designation	UFV700-230V	UFV700-230V-W	UFV700UL-240V	UFV700UL-120V
Sound-pressure level	47 dB(A)	47 dB(A)	47 dB(A)	47 dB(A)
Energieverbrauch bei Sollwert -80 °C und Tᵤ = 20 °C	8.1 kWh/d	8.1 kWh/d	8.1 kWh/d	8.1 kWh/d

Fixtures

Designation	UFV700-230V	UFV700-230V-W	UFV700UL-240V	UFV700UL-120V
Number of shelves (std./max.)	3/11	3/11	3/11	3/11

Load-variants

Designation	UFV700-230V	UFV700-230V-W	UFV700UL-240V	UFV700UL-120V
Freezer racks per compartment	6	6	6	6
Croyoboxes, 50mm	528	528	528	528

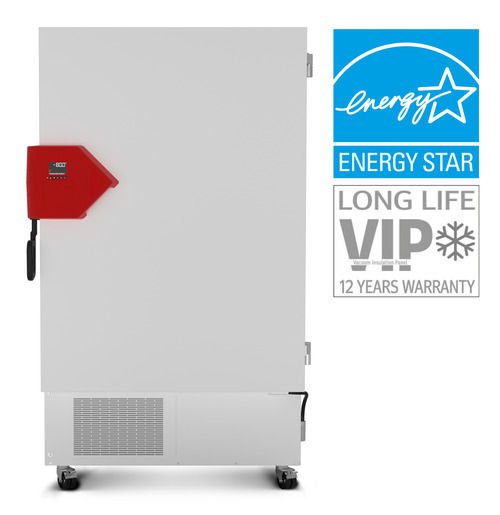

Binder Ultra-Low Temperature Freezers with Climate-Neutral Refrigerants | UF V 700 Images
