- Fast, gentle drying
- Optimum heat transfer through large thermal conducting plates
- Safe working thanks to ATEX-compliant safety concept
- Also option of modular complete system with vacuum pump and pump chamber

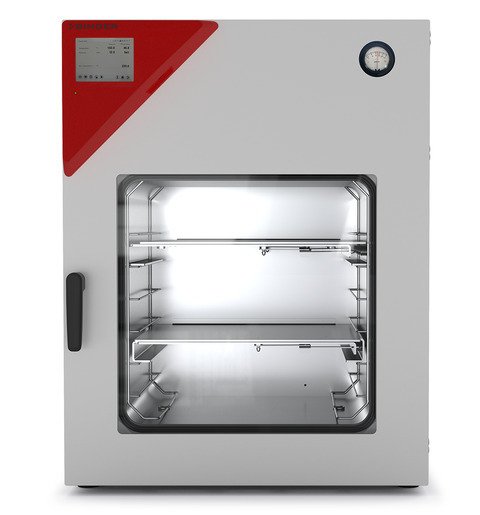

Binder Vacuum Drying Chambers for Flammable Solvents | VDL 115
BINDER VDL series safety vacuum drying chambers ensure maximum safety when drying organic solvents. Explosion-protected unit with classification according to ATEX directive 2014/34/EU: EX II 2/3/- G IIB T3 Gb/Gc/- X.
Binder Vacuum Drying Chambers for Flammable Solvents | VDL 115 General Information
- Temperature range: +9°C above ambient temperature to +110 °C
- ATEX conformity for units: EX II 2/3/- G IIB T3 Gb/Gc/- X
- Intuitive touchscreen controller with graphical pressure and temperature display
- Program-controlled drying monitoring with automatic ventilation at end of process
- Internal data logger, measured values can be read out in open format via USB
- Pressure control device for heating activated from < 100 mbar
- 2 aluminum expansion racks, can be custom-positioned
- Universal connection for ventilation with ambient air or inert gas
- Universal access port DN 16 - for the introduction of external measuring devices
- Shatterproof, spring-mounted safety glass panel
- Large viewing window
- Computer interface: Ethernet
Binder Vacuum Drying Chambers for Flammable Solvents | VDL 115 Technical Data
Data
| Designation | VDL115-230V |
VDL115-120V |
| Article Number | 9630-0011 | 9630-0015 |
| Option model |
Standard |
Standard |
| Designation | VDL115-230V |
VDL115-120V |
| Temperature range | +9 °C above ambient temperature to 110 °C | +9 °C above ambient temperature to 110 °C |
| Temperature uniformity at 100°C | 2.9 ± K | 2.9 ± K |
| Temperature fluctuation at 100°C | 0.1 ± K | 0.1 ± K |
| Heating up time to 100°C | 170 min | 170 min |
Vacuum Data
| Designation | VDL115-230V |
VDL115-120V |
| Leckrate | 0,01 bar/h | 0,01 bar/h |
Electrical Data
| Designation | VDL115-230V |
VDL115-120V |
| Rated Voltage | 200...230 V | 100...120 V |
| Power frequency | 50/60 Hz | 50/60 Hz |
| Nominal power | 1,6 kW | 1,6 kW |
| Unit fuse | 10,0 A | 20,0 A |
| Phase (Nominal voltage) | 1~ | 1~ |
| Designation |
VDL115-230V |
VDL115-120V |
| Vacuum connection with small flange | 16 DN mm | 16 DN mm |
| Measuring access port with small flange | 16 DN mm | 16 DN mm |
| Designation |
VDL115-230V |
VDL115-120V |
| Interior volume | 119 L | 119 L |
| Net weight of the unit (empty) | 158 kg | 158 kg |
| Load per rack | 20 kg | 20 kg |
| Permitted load | 70 kg | 70 kg |
| Wall clearance back | 100 mm | 100 mm |
| Wall clearance sidewise | 70 mm | 70 mm |
Housing dimensions not incl. fittings and connections
| Designation | VDL115-230V | VD115-120V |
| Width net | 743 mm | 743 mm |
| Height net | 942 mm | 942 mm |
| Depth net | 581 mm | 581 mm |
| Designation | VDL115-230V | VDL115-120V |
| Interior width | 506 mm | 506 mm |
| Interior height | 506 mm | 506 mm |
| Interior depth | 460 mm | 460 mm |
| Viewing window width | 525 mm | 525 mm |
| Viewing window height | 468 mm | 468 mm |
| Unit doors | 1 | 1 |
| Designation | VDL115-230V |
VDL115-120V |
| Sound-pressure level | 40 dB(A) | 40 dB(A) |
| Energy consumption at 100°C | 230 Wh/h | 230 Wh/h |
| Designation | VDL115-230V |
VDL115-120V |
| Number of shelves (std./max.) | 2/6 | 2/6 |
